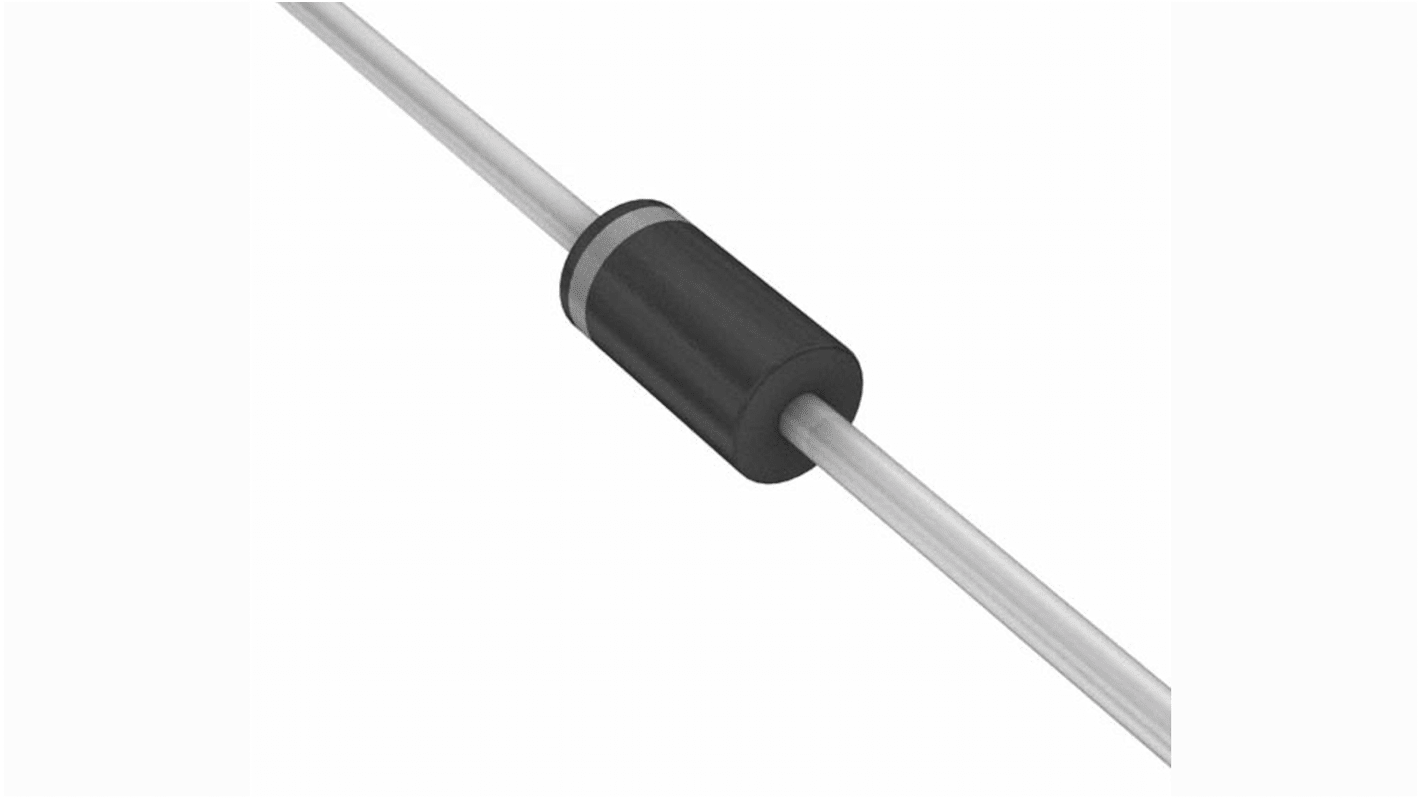

Vishay 1, 33 V Zener Diode, Single 1.3 W 5 % Through Hole 2-Pin DO-41

View all Zener Diodes
Bulk discount available

Subtotal (1 pack of 100 units)*

£7.70

(exc. VAT)

£9.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
100 - 900£0.077£7.70
1000 - 2400£0.075£7.50
2500 - 4900£0.059£5.90
5000 - 9900£0.049£4.90
10000 +£0.047£4.70

*price indicative

Packaging Options:
RS Stock No.:
180-8574
Mfr. Part No.:
1N4752A-TR
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Zener Diode

Nominal Zener Voltage Vz

33V

Diode Configuration

Single

Mount Type

Through Hole

Number of Elements per Chip

1

Maximum Power Dissipation Pd

1.3W

Package Type

DO-41

Zener Type

Silicon Planar

Pin Count

2

Test Current It

7.5mA

Maximum Zener Impedance

45Ω

Maximum Reverse Leakage Current

5μA

Zener Voltage Tolerance ±

5%

Maximum Operating Temperature

175°C

Series

1N4752A

Length

4.1mm

Height

2.6mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

COO (Country of Origin):
CN

Vishay Zener Diode


The Vishay DO-41 Zener diode has a voltage rating of 33VDC and power rating of 1.3W at 5% voltage tolerance. The Zener current of the diode is 5uA and reverse current rating is 5uA.

Features and Benefits


• Halogen free

• Lead (Pb) free component

• Operating junction temperature ranges between -65°C and 175°C

• Silicon planar Zener diode

Applications


• Clipping circuits

• High-power voltage stabilization

Certifications


• AEC-Q101 qualified

• e2

• J-STD-020

• UL94 listed
