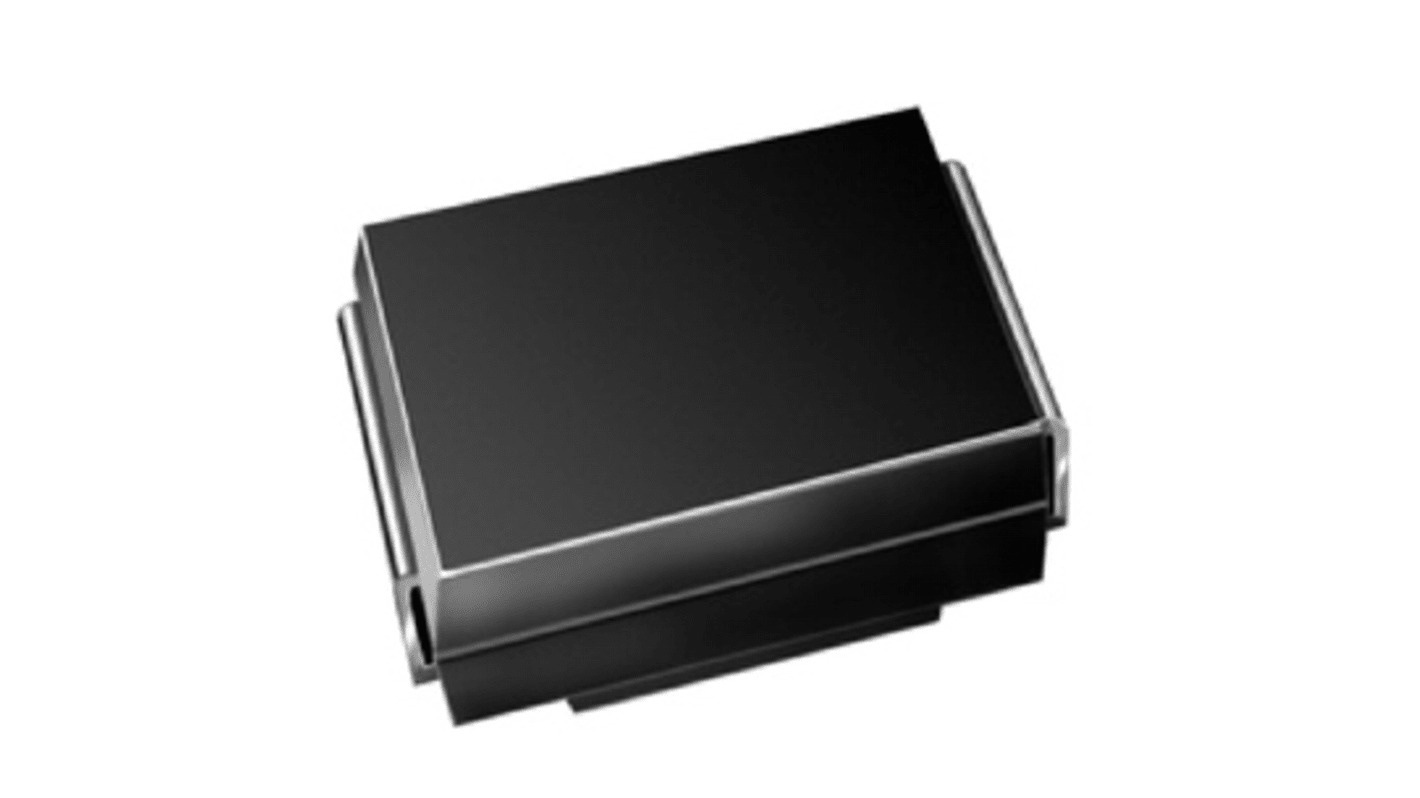

Vishay 1, 33 V Zener Diode, Single 1.5 W 5 % Surface 2-Pin DO-214AA
- RS Stock No.:
- 233-1032
- Mfr. Part No.:
- SMZJ3801BHM3_A/H
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 25 units)*
£7.30
(exc. VAT)
£8.75
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.292 | £7.30 |
| 125 - 225 | £0.278 | £6.95 |
| 250 - 600 | £0.19 | £4.75 |
| 625 - 1225 | £0.181 | £4.53 |
| 1250 + | £0.128 | £3.20 |
*price indicative
- RS Stock No.:
- 233-1032
- Mfr. Part No.:
- SMZJ3801BHM3_A/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Zener Diode | |
| Nominal Zener Voltage Vz | 33V | |
| Diode Configuration | Single | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 1.5W | |
| Package Type | DO-214AA | |
| Zener Type | Voltage Regulator | |
| Pin Count | 2 | |
| Test Current It | 11.4mA | |
| Maximum Zener Impedance | 33Ω | |
| Zener Voltage Tolerance ± | 5% | |
| Minimum Operating Temperature | -55°C | |
| Maximum Reverse Leakage Current | 5μA | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Height | 2.44mm | |
| Length | 4.57mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Zener Diode | ||
Nominal Zener Voltage Vz 33V | ||
Diode Configuration Single | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 1.5W | ||
Package Type DO-214AA | ||
Zener Type Voltage Regulator | ||
Pin Count 2 | ||
Test Current It 11.4mA | ||
Maximum Zener Impedance 33Ω | ||
Zener Voltage Tolerance ± 5% | ||
Minimum Operating Temperature -55°C | ||
Maximum Reverse Leakage Current 5μA | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Height 2.44mm | ||
Length 4.57mm | ||
Automotive Standard AEC-Q101 | ||
The Vishay surface mount power voltage regulating diode comes in low profile package(DO-214AA) and ideal for automated placement. It has 33V nominal zener voltage and 1.5W total power. It meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. It is used for general purpose regulation, industrial, and protection applications.
Glass passivated chip junction
Low zener impedance and regulation factor
