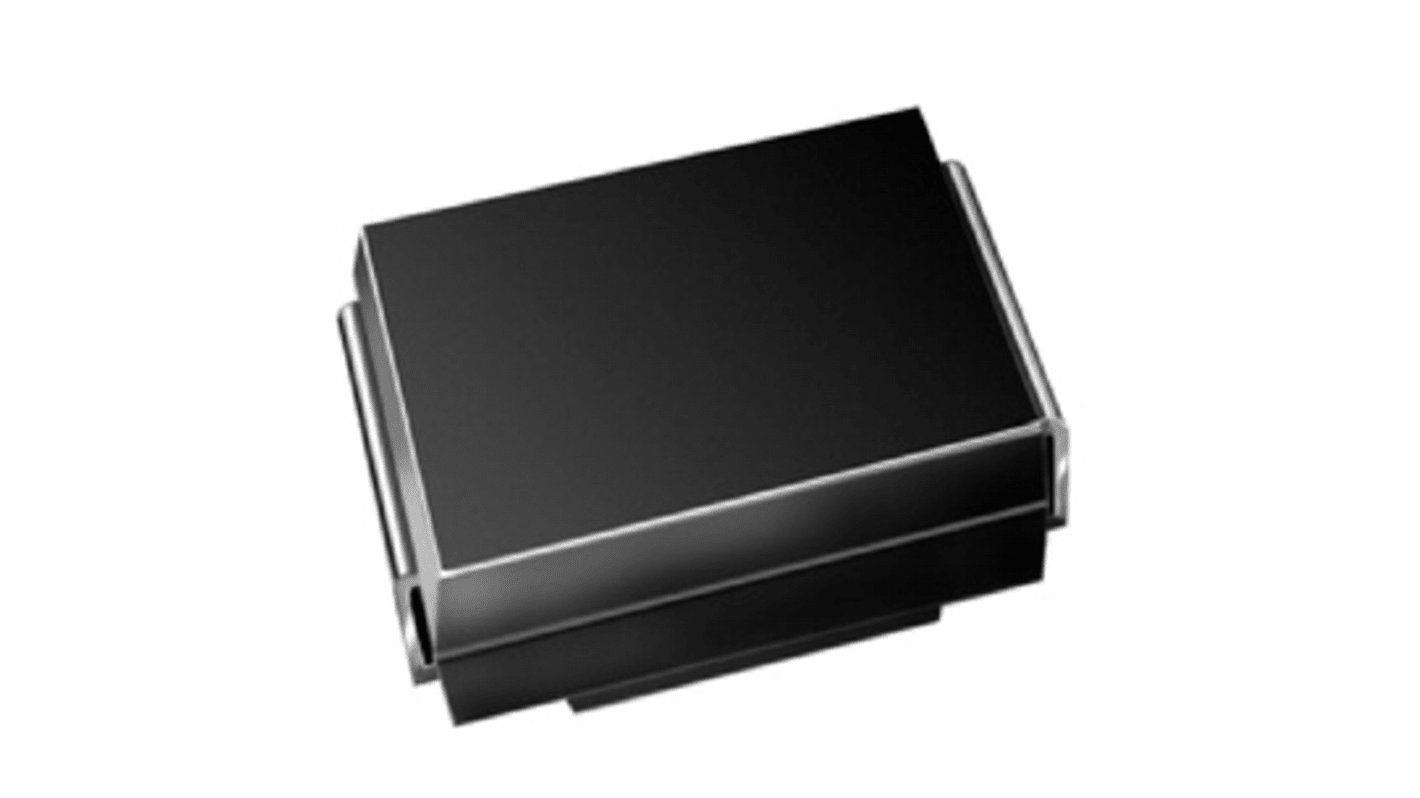

Vishay, 24V Zener Diode ±5% 1.5 W SMT 2-Pin SMB (DO-214AA)

View all Zener Diodes
Bulk discount available

Subtotal (1 reel of 750 units)*

£113.25

(exc. VAT)

£135.75

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 6,750 unit(s), ready to ship
Units
Per unit
Per Reel*
750 - 750£0.151£113.25
1500 +£0.143£107.25

*price indicative

RS Stock No.:
233-1026
Mfr. Part No.:
SMZJ3798BHM3_A/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Nominal Zener Voltage

24V

Diode Configuration

Single

Mounting Type

Surface Mount

Number of Elements per Chip

1

Maximum Power Dissipation

1.5 W

Package Type

SMB (DO-214AA)

Zener Type

Voltage Regulator

Zener Voltage Tolerance

±5%

Pin Count

2

The Vishay surface mount power voltage regulating diode comes in low profile package(DO-214AA) and ideal for automated placement. It has 24V nominal zener voltage and 1.5W total power. It meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. It is used for general purpose regulation, industrial, and protection applications.

Glass passivated chip junction
Low zener impedance and regulation factor
