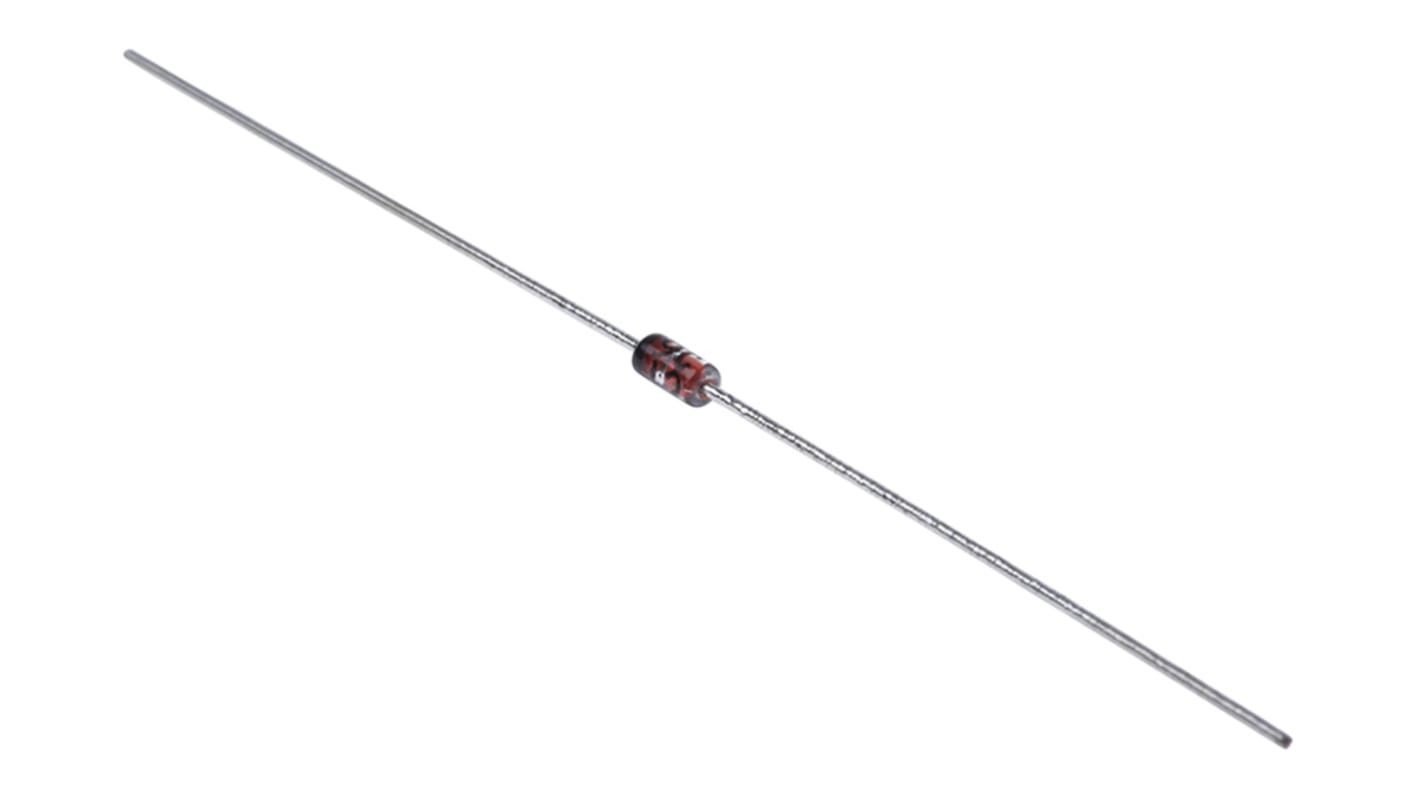

onsemi 1, 12 V Zener Diode, Single 500 mW 5 % Through Hole 2-Pin DO-35
- RS Stock No.:
- 146-1978
- Mfr. Part No.:
- BZX79C12
- Brand:
- onsemi
Bulk discount available
Subtotal (1 bag of 1000 units)*
£20.00
(exc. VAT)
£20.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 - 1000 | £0.02 | £20.00 |
| 2000 - 4000 | £0.018 | £18.00 |
| 5000 + | £0.018 | £18.00 |
*price indicative
- RS Stock No.:
- 146-1978
- Mfr. Part No.:
- BZX79C12
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Nominal Zener Voltage Vz | 12V | |
| Diode Configuration | Single | |
| Product Type | Zener Diode | |
| Mount Type | Through Hole | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 500mW | |
| Package Type | DO-35 | |
| Zener Type | Voltage Regulator | |
| Pin Count | 2 | |
| Test Current It | 5mA | |
| Maximum Zener Impedance | 25Ω | |
| Maximum Reverse Leakage Current | 100nA | |
| Minimum Operating Temperature | -65°C | |
| Zener Voltage Tolerance ± | 5% | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | No | |
| Length | 4.56mm | |
| Series | BZX79 | |
| Height | 1.91mm | |
| Typical Voltage Temperature Coefficient | 10mV/°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Nominal Zener Voltage Vz 12V | ||
Diode Configuration Single | ||
Product Type Zener Diode | ||
Mount Type Through Hole | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 500mW | ||
Package Type DO-35 | ||
Zener Type Voltage Regulator | ||
Pin Count 2 | ||
Test Current It 5mA | ||
Maximum Zener Impedance 25Ω | ||
Maximum Reverse Leakage Current 100nA | ||
Minimum Operating Temperature -65°C | ||
Zener Voltage Tolerance ± 5% | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals No | ||
Length 4.56mm | ||
Series BZX79 | ||
Height 1.91mm | ||
Typical Voltage Temperature Coefficient 10mV/°C | ||
Automotive Standard No | ||
Zener Diodes 500mW, BZX79C Series, Fairchild Semiconductor
Zener Diodes, Fairchild Semiconductor
