JST, PH Female Connector Housing, 2mm Pitch, 15 Way, 1 Row
- RS Stock No.:
- 175-4727
- Mfr. Part No.:
- PHR-15
- Brand:
- JST
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 175-4727
- Mfr. Part No.:
- PHR-15
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 15 | |
| Number of Rows | 1 | |
| Pitch | 2mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | PH | |
| For Use With | PH Connectors | |
| Body Orientation | Straight | |
| Length | 31.8mm | |
| Width | 4.5mm | |
| Housing Material | Polyamide | |
| Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 15 | ||
Number of Rows 1 | ||
Pitch 2mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series PH | ||
For Use With PH Connectors | ||
Body Orientation Straight | ||
Length 31.8mm | ||
Width 4.5mm | ||
Housing Material Polyamide | ||
- COO (Country of Origin):
- MY

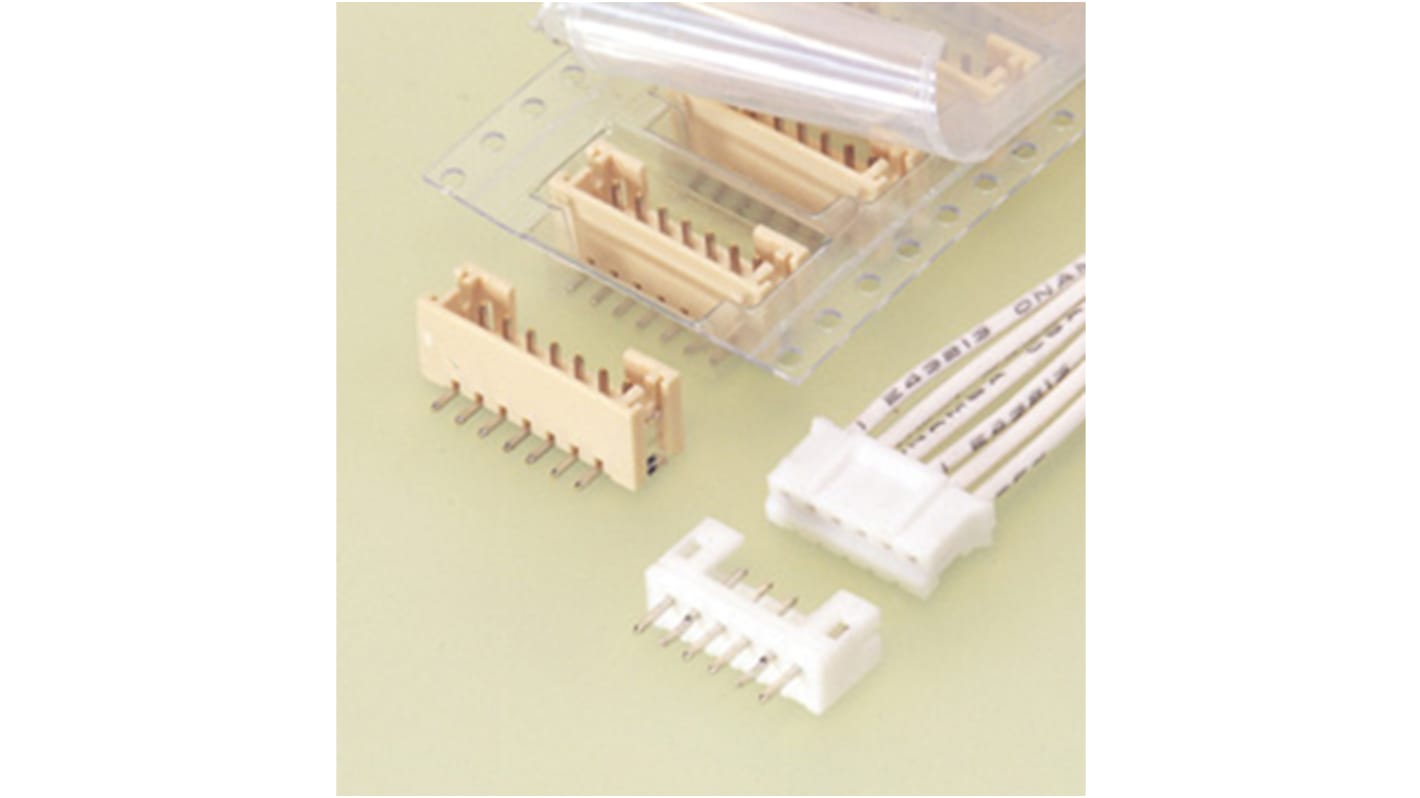

The JST PHR-15 is a PH series, 15 way, single row, 2. 00mm pitch, PH connector housing. It is designed to meet the demand for the high-density connection of internal wires to printed circuit boards. It is categorized in thin low profile type crimp style connector (Wire-to-Board type connector).
Highly reliable contact
Fully shrouded header
Printed circuit board retention mechanism
Surface mount model (SMT)
Fully shrouded header
Printed circuit board retention mechanism
Surface mount model (SMT)
