JST, PH Male Connector Housing, 2 mm Pitch, 14 Way, 1 Row Straight
- RS Stock No.:
- 175-4836
- Distrelec Article No.:
- 304-09-588
- Mfr. Part No.:
- PHR-14
- Brand:
- JST
Get a bulk buy discount
Add 50 more to save £1.35
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£2.05
(exc. VAT)
£2.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,350 unit(s) ready to ship
- Plus 510 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 10 - 40 | £0.205 | £2.05 | - |
| 50 - 90 | £0.178 | £1.78 | £1.35 |
| 100 - 240 | £0.157 | £1.57 | £4.80 |
| 250 - 490 | £0.141 | £1.41 | £16.00 |
| 500 + | £0.129 | £1.29 | £38.00 |
*price indicative
- RS Stock No.:
- 175-4836
- Distrelec Article No.:
- 304-09-588
- Mfr. Part No.:
- PHR-14
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 14 | |
| Product Type | Connector Housing | |
| Number of Rows | 1 | |
| Pitch | 2mm | |
| Connector Gender | Male | |
| Mount Type | Cable | |
| For Use With | PH Connectors | |
| Orientation | Straight | |
| Length | 29.8mm | |
| Housing Material | Polyamide | |
| Series | PH | |
| Standards/Approvals | No | |
| Width | 4.5mm | |
| Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 14 | ||
Product Type Connector Housing | ||
Number of Rows 1 | ||
Pitch 2mm | ||
Connector Gender Male | ||
Mount Type Cable | ||
For Use With PH Connectors | ||
Orientation Straight | ||
Length 29.8mm | ||
Housing Material Polyamide | ||
Series PH | ||
Standards/Approvals No | ||
Width 4.5mm | ||
- COO (Country of Origin):
- MY

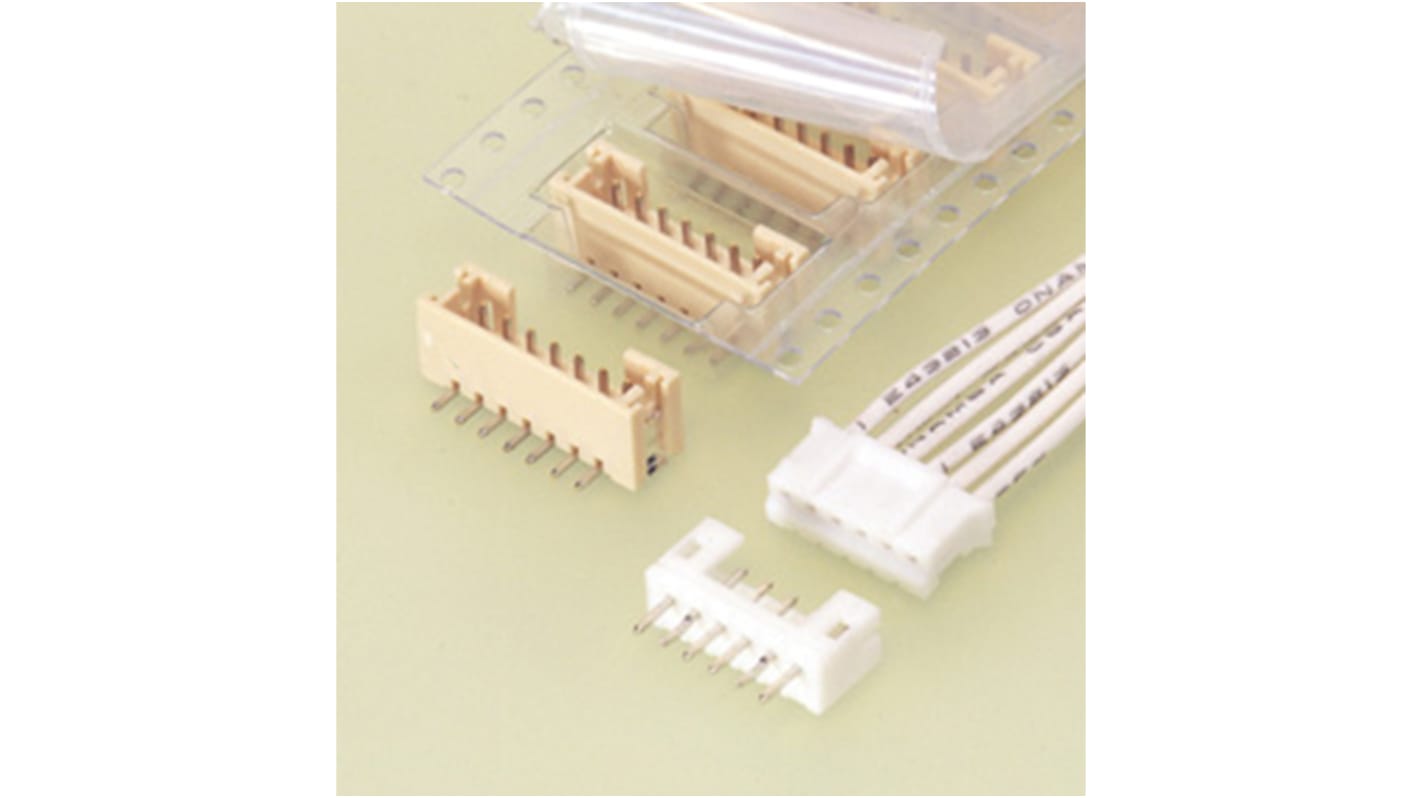

The JST PHR-14 is a PH series, 14 way, single row, 2. 00mm pitch, PH connector housing. It is designed to meet the demand for the high-density connection of internal wires to printed circuit boards. It is categorized in thin low profile type crimp style connector (Wire-to-Board type connector).
Highly reliable contact
Fully shrouded header
Printed circuit board retention mechanism
Surface mount model (SMT)
