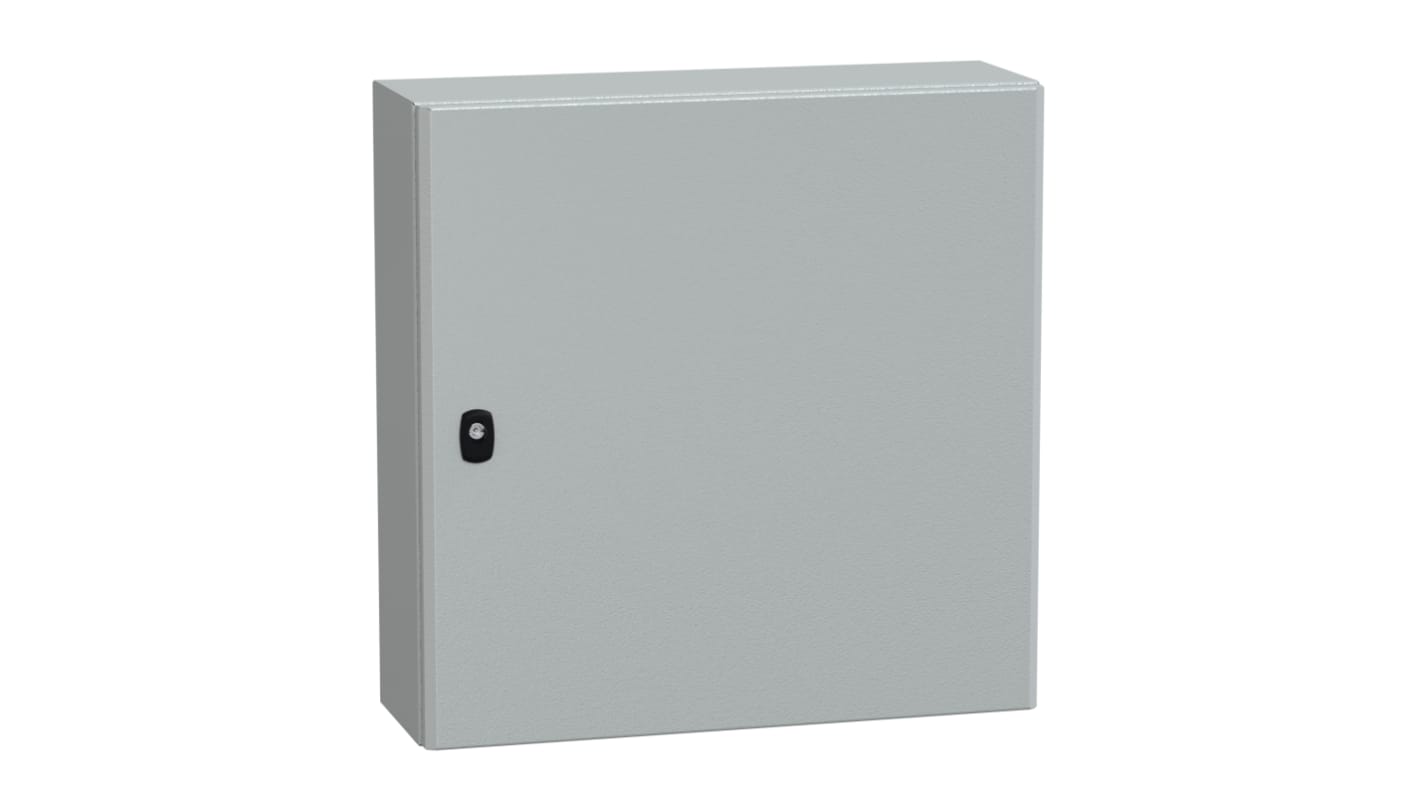

Schneider Electric PanelSet S3D Series Steel Wall Box, IP66, 600 mm x 600 mm x 200 mm
- RS Stock No.:
- 701-8430
- Mfr. Part No.:
- NSYS3D6620P
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£179.60
(exc. VAT)
£215.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £179.60 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 701-8430
- Mfr. Part No.:
- NSYS3D6620P
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| External Height | 600mm | |
| Product Type | Wall Box | |
| External Depth | 200mm | |
| Body Material | Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Chassis Plate | Yes | |
| Door Lock Type | Double Bar | |
| Gland Plate | Yes | |
| Internal Mount Type | Panel | |
| Colour | Grey | |
| External Width | 600mm | |
| Mounting plate | No | |
| Series | PanelSet S3D | |
| Standards/Approvals | BV, REACH, UL, RoHS, IEC 62208, DNV, LR, cUL | |
| Better World Product | Yes | |
| Fixing Kit | Yes | |
| IK Rating | IK10 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
External Height 600mm | ||
Product Type Wall Box | ||
External Depth 200mm | ||
Body Material Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Chassis Plate Yes | ||
Door Lock Type Double Bar | ||
Gland Plate Yes | ||
Internal Mount Type Panel | ||
Colour Grey | ||
External Width 600mm | ||
Mounting plate No | ||
Series PanelSet S3D | ||
Standards/Approvals BV, REACH, UL, RoHS, IEC 62208, DNV, LR, cUL | ||
Better World Product Yes | ||
Fixing Kit Yes | ||
IK Rating IK10 | ||
- COO (Country of Origin):
- FR
Schneider Electric NSYS3D6620P
Spacial S3D wall mounted steel enclosure with plain door. 600 x 600 x 200 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
• IP66 (ingress protection) rating means it can withstand dust and high-pressure water jets
• Door opens to an angle of 120° to provide ample space for the installation of components
• Handle works as both an operating key and protective cap removal tool
• 3mm double-bar lock with three locking points for additional security
Applications
• Food production facilities
• Workshops
• Office environments
The Schneider Electric PanelSet S3D double plain door w/o mount plate is an compact enclosure used in Multi-purpose Application. This enclosures comes with or without mounting plates with Standard type of gland plate & with single or double door type.
Is this wall box suitable for outdoor use?
This wall box is UV-resistant, which means it won't deteriorate when exposed to ultraviolet rays. It's also protected against strong water jets, so it can withstand the elements and is suited to both indoor and outdoor use.
Standards
Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.
