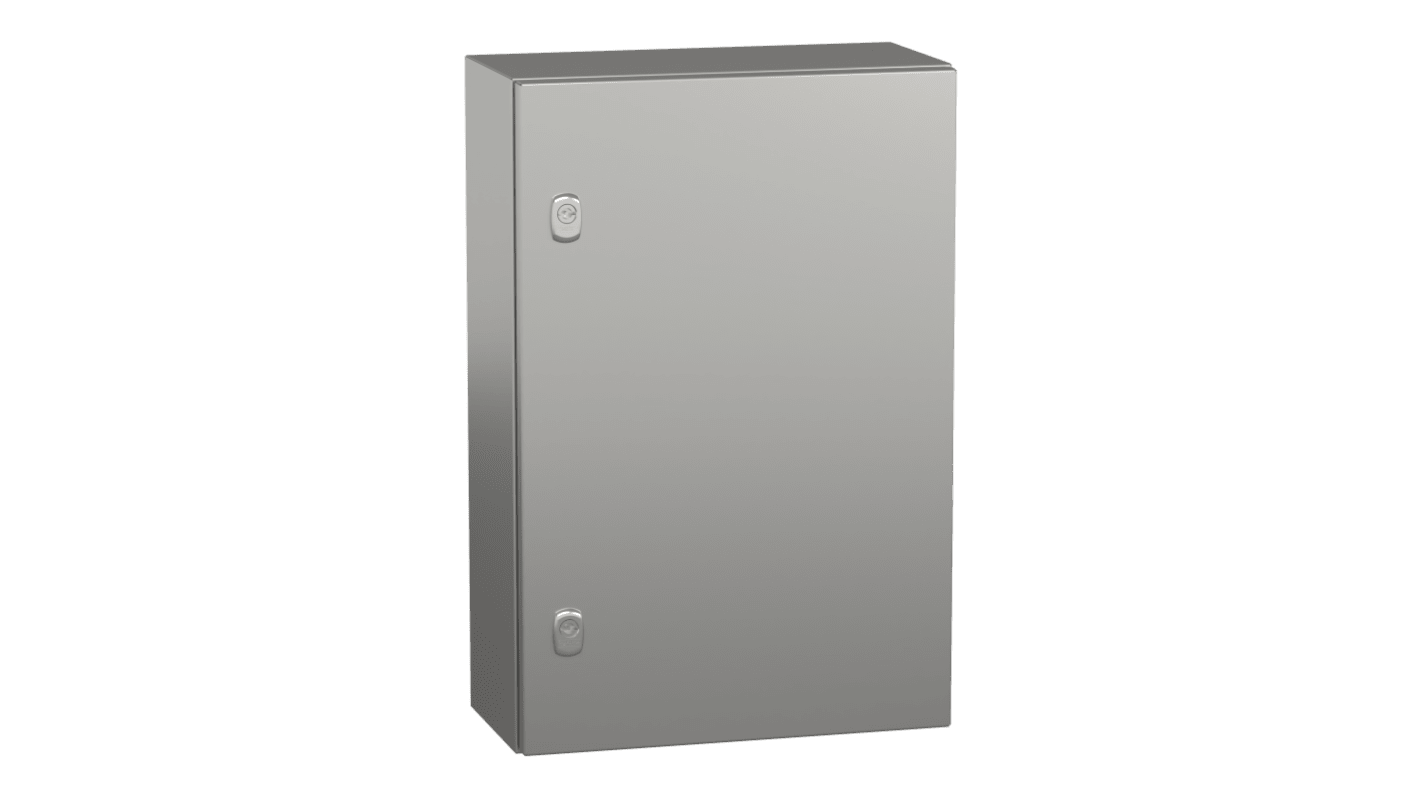

Schneider Electric PanelSet S3X Series 316 Stainless Steel, Zinc Coated Steel Wall Box, IP66, 600 mm x 400 mm x 200 mm

View all Wall Boxes

Subtotal (1 unit)*

£1,186.71

(exc. VAT)

£1,424.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,186.71

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
211-0914
Mfr. Part No.:
NSYS3X6420H
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Wall Box

External Height

600mm

External Depth

200mm

Body Material

316 Stainless Steel, Zinc Coated Steel

IP Rating

IP66

Chassis Plate

No

Door Lock Type

Double Bar

Gland Plate

No

Colour

Unpainted

Mounting plate

No

External Width

400mm

Series

PanelSet S3X

Standards/Approvals

IEC 62208, UL, REACH, RoHS, CAN/CSA 22

Better World Product

Yes

IK Rating

IK10

RoHS Status: Exempt

COO (Country of Origin):
BG

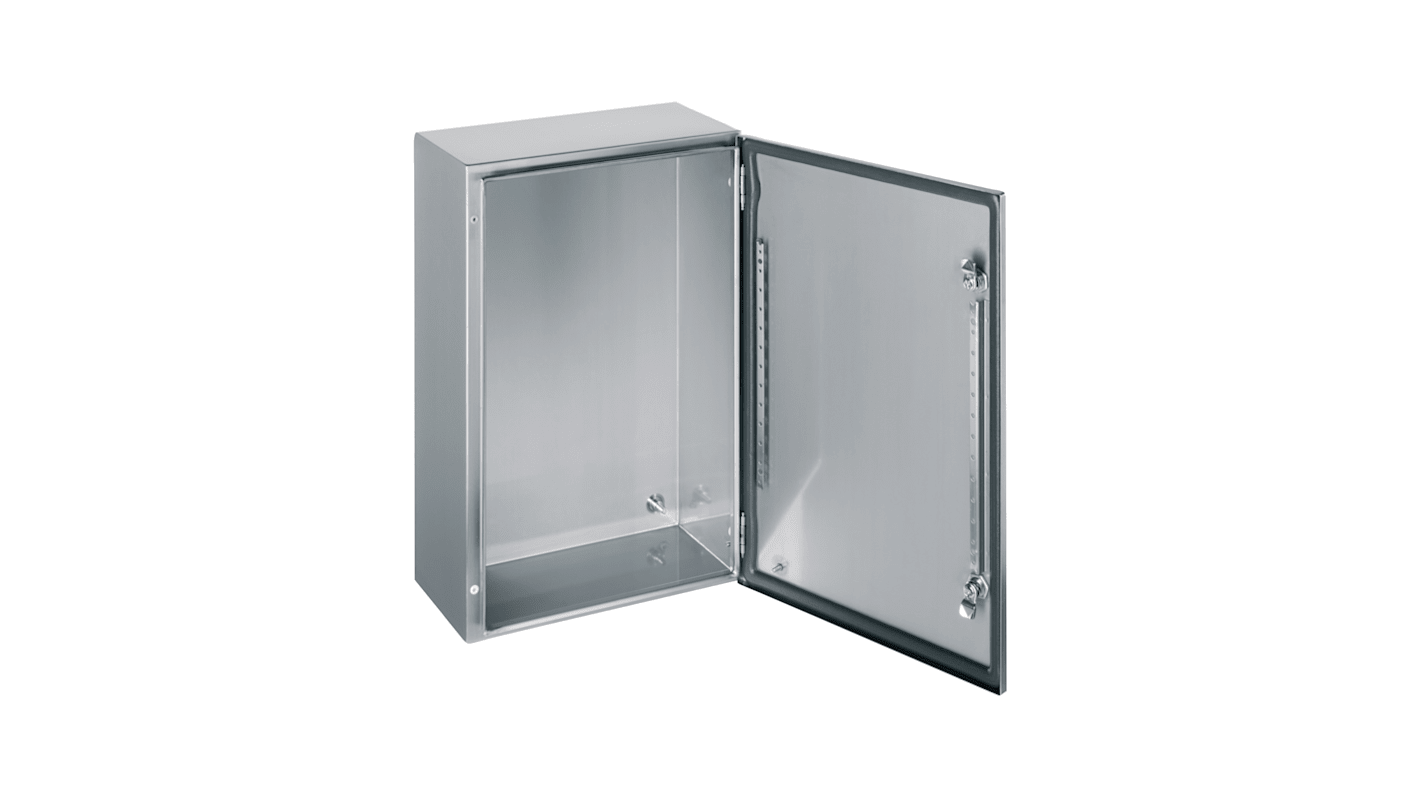

Schneider Electric PanelSet S3X Stainless Steel Wall Box Enclosures.


From Schneider Electric this is the PanelSet S3X range of 304 stainless steel wall-mounting enclosures are made from a one-piece metal sheet, folded and welded on the corner’s excellent performance in exposed environments. The PanelSet S3X wall box has a front rail gutter protecting the wall box enclosure and contents form water, oil and other liquid penetration.

PanelSet S3X Wall Box Enclosure Features.


  • Stainless steel AISI 304L or AISI 316L.

  • Various sizes with a plain door AISI 304L or AISI 316L.

  • 6 Other sizes available with a transparent door AISI 304L.

  • Polished Scotch Brite finish.

  • Watertight (IP66 single door, IP 55 double door), (IK 10 plain door, IK 08 glazed door).

  • 120° opening, reversible door can be mounted on the left or the right.

  • Stainless steel concealed hinges.

  • Hinges are mounted along height dimension.

  • Easy to mount indoors or outdoors.

  • Easy to clean and hygienic.

    • NSYS3X6420H PanelSet S3X Multi-Purpose Stainless Steel Compact Wall Box Enclosure.


    Features and Benefits.


    Compact.

    Wall mounted.

    Single piece body, cross-shaped structure Gutter shaped front rail.

    1 x Plain door, 120° Reversible opening, hinged (removable).

    2 points lock, 3 mm double-bar.

    Mounting plate and gland plate NOT included.

    IP 66 conforming to IEC 60529.

    IK10 conforming to IEC 62262.

    Material.


  • Zamak lock.

  • Stainless steel hinge.

  • Door and wall box - Stainless steel 316L, Scotch-Brite® brushed.

  • Material is 1.5 mm thick.

    • What is supplied?


  • 1 body, 1 door, 2 locks (door), 2 perforated vertical profile drilled (door).

    • Approvals

    CAN/CSA 22, UL 508 type A.

    Standards

    IEC 62208
