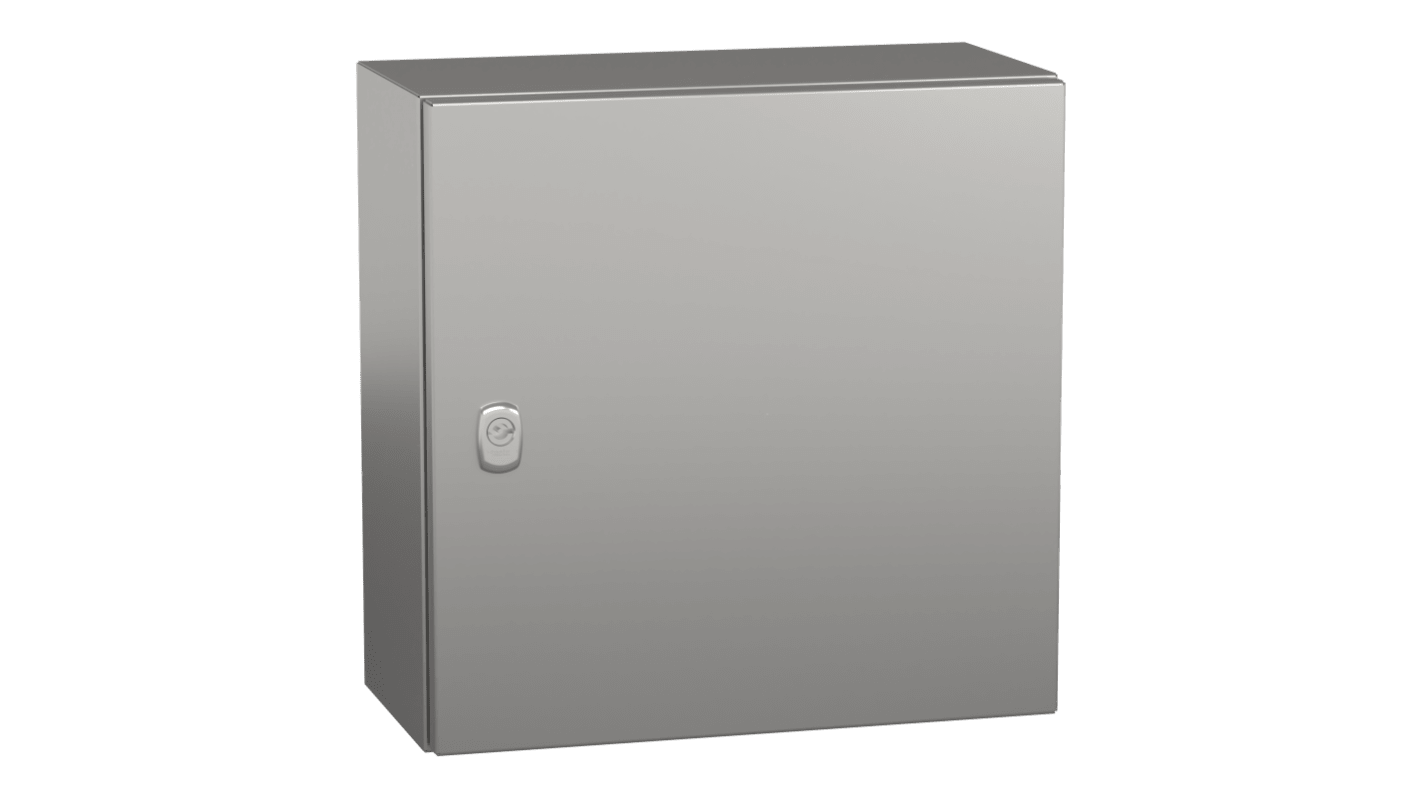

Schneider Electric PanelSeT S3X Series 316 Stainless Steel Wall Box, IP66, 400 mm x 400 mm x 200mm
- RS Stock No.:
- 211-3981
- Mfr. Part No.:
- NSYS3X4420H
- Brand:
- Schneider Electric
Currently unavailable
Sorry, we don't know when this will be back in stock.
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 211-3981
- Mfr. Part No.:
- NSYS3X4420H
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
External Height | 400 mm | |
External Width | 400 mm | |
External Depth | 200mm | |
Body Material | 316 Stainless Steel | |
IP Rating | IP66 | |
Chassis Plate | No | |
Door Lock Type | Double Bar | |
Gland Plate | No | |
Colour | Unpainted | |
Series | PanelSeT S3X | |
Better World Product | Yes | |
Better World Verification | Green Premium | |
For Protection Of | Multipurpose | |
Special Features | 120° Door Opening | |
IK Rating | IK10 | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
External Height 400 mm | ||
External Width 400 mm | ||
External Depth 200mm | ||
Body Material 316 Stainless Steel | ||
IP Rating IP66 | ||
Chassis Plate No | ||
Door Lock Type Double Bar | ||
Gland Plate No | ||
Colour Unpainted | ||
Series PanelSeT S3X | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
For Protection Of Multipurpose | ||
Special Features 120° Door Opening | ||
IK Rating IK10 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BG
Schneider Electric PanelSet S3X Stainless Steel Wall Box Enclosures.
From Schneider Electric this is the PanelSet S3X range of 304 stainless steel wall-mounting enclosures are made from a one-piece metal sheet, folded and welded on the corners excellent performance in exposed environments. The PanelSet S3X wall box has a front rail gutter protecting the wall box enclosure and contents form water, oil and other liquid penetration.
PanelSet S3X Wall Box Enclosure Features.
- Stainless steel AISI 304L or AISI 316L.
- Various sizes with a plain door AISI 304L or AISI 316L.
- 6 Other sizes available with a transparent door AISI 304L.
- Polished Scotch Brite finish.
- Watertight (IP66 single door, IP 55 double door), (IK 10 plain door, IK 08 glazed door).
- 120° opening, reversible door can be mounted on the left or the right.
- Stainless steel concealed hinges.
- Hinges are mounted along height dimension.
- Easy to mount indoors or outdoors.
- Easy to clean and hygienic.
NSYS3X4420H PanelSet S3X Multi-Purpose Stainless Steel Compact Wall Box Enclosure.
Features and Benefits.
- Compact.
- Wall mounted.
- Single piece body, cross-shaped structure Gutter shaped front rail.
- 1 x Plain door, 120° Reversible opening, hinged (removable).
- 3 mm double-bar lock.
- Mounting plate and gland plate NOT included.
- IP 66 conforming to IEC 60529.
- IK10 conforming to IEC 62262.
Material.
- Lock – Zamak.
- Stainless steel hinge.
- Door and wall box - Stainless steel 316L, Scotch-Brite® brushed.
- Material is 1.5 mm thick.
What is supplied?
- 1 body, 1 door, 1 x lock (door).
Approvals
CAN/CSA 22, UL 508 type A.
Standards
IEC 62208
