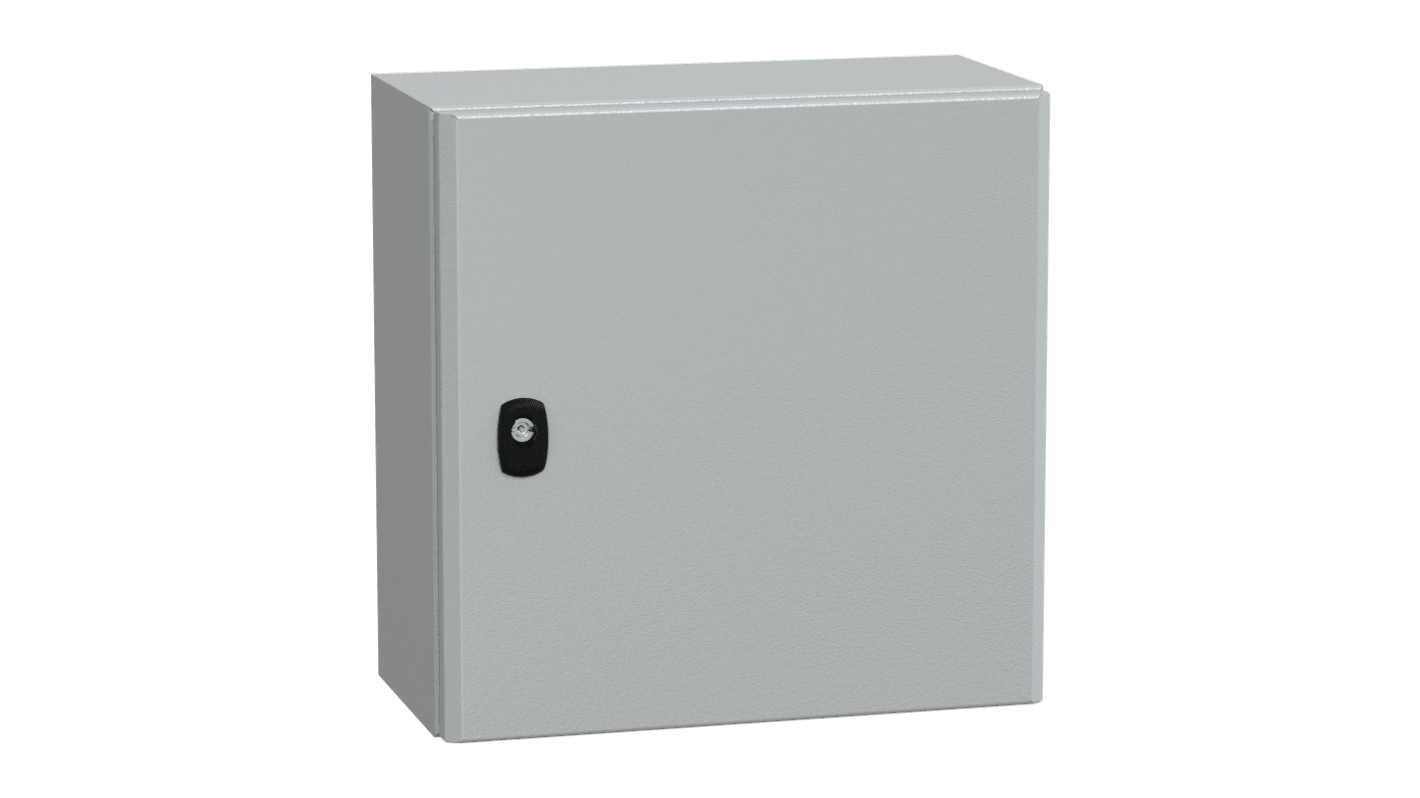

Schneider Electric Spacial S3D Series Steel Wall Box, IP66, 400 mm x 400 mm x 200mm
- RS Stock No.:
- 701-8411
- Mfr. Part No.:
- NSYS3D4420P
- Brand:
- Schneider Electric
36 In stock - FREE next working day delivery available
7 available from Europe for delivery within 2 working day(s).
Price Each
£113.05
(exc. VAT)
£135.66
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £113.05 |
10 + | £101.75 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 701-8411
- Mfr. Part No.:
- NSYS3D4420P
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Schneider Electric Steel Wall Box, 400 (H) x 400 (W) x 200mm (D) - Spacial S3D Series - NSYS3D4420P
Use this wall box from Schneider Electric to keep your industrial equipment safe. Its compact dimensions of 400 (H) x 400 (W) x 200mm (D) mean it's a discreet choice for bust workplaces. As it comes with a tough galvanised steel mounting plate, you'll find it easy to install and suitable for demanding environments. For added safety, it comes with earthing studs that let you attach an earth connection to deflect static discharge. The door is reversible so you can adapt it to your work setup. A robust polyurethane (PUR) door seal prevents contamination from dirt.
• Door opens 120° for easy access to the interior
• Steel housing is corrosion-resistant for extended service life
• Resistant to UV rays to withstand harsh environments
• IP66 (ingress protection) rating to prevent dust and damage from powerful water jets
• Double-bar door lock prevents unauthorised access
• Steel housing is corrosion-resistant for extended service life
• Resistant to UV rays to withstand harsh environments
• IP66 (ingress protection) rating to prevent dust and damage from powerful water jets
• Double-bar door lock prevents unauthorised access
Applications
• Control rooms
• Manufacturing industry
• Storage facilities
• Manufacturing industry
• Storage facilities
How do I mount the gland plate in this wall box?
You should mount the gland plate by screwing it to the bottom of the enclosure. Its grid pattern lets you organise the cables to prevent tangling and for easy identification.
Standards
Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.
Specifications
Attribute | Value |
---|---|
External Height | 400 mm |
External Width | 400 mm |
External Depth | 200mm |
Body Material | Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | Yes |
Door Lock Type | Double Bar |
Gland Plate | Yes |
Colour | Grey |
RAL Code | RAL 7035 |
Series | Spacial S3D |
Better World Verification | Green Premium |
External Mounting Type | Bracket |
Better World Product | Yes |
Special Features | 120° Door Opening |
Internal Mounting Type | Panel |
Fixing Kit | Yes |
IK Rating | IK10 |
