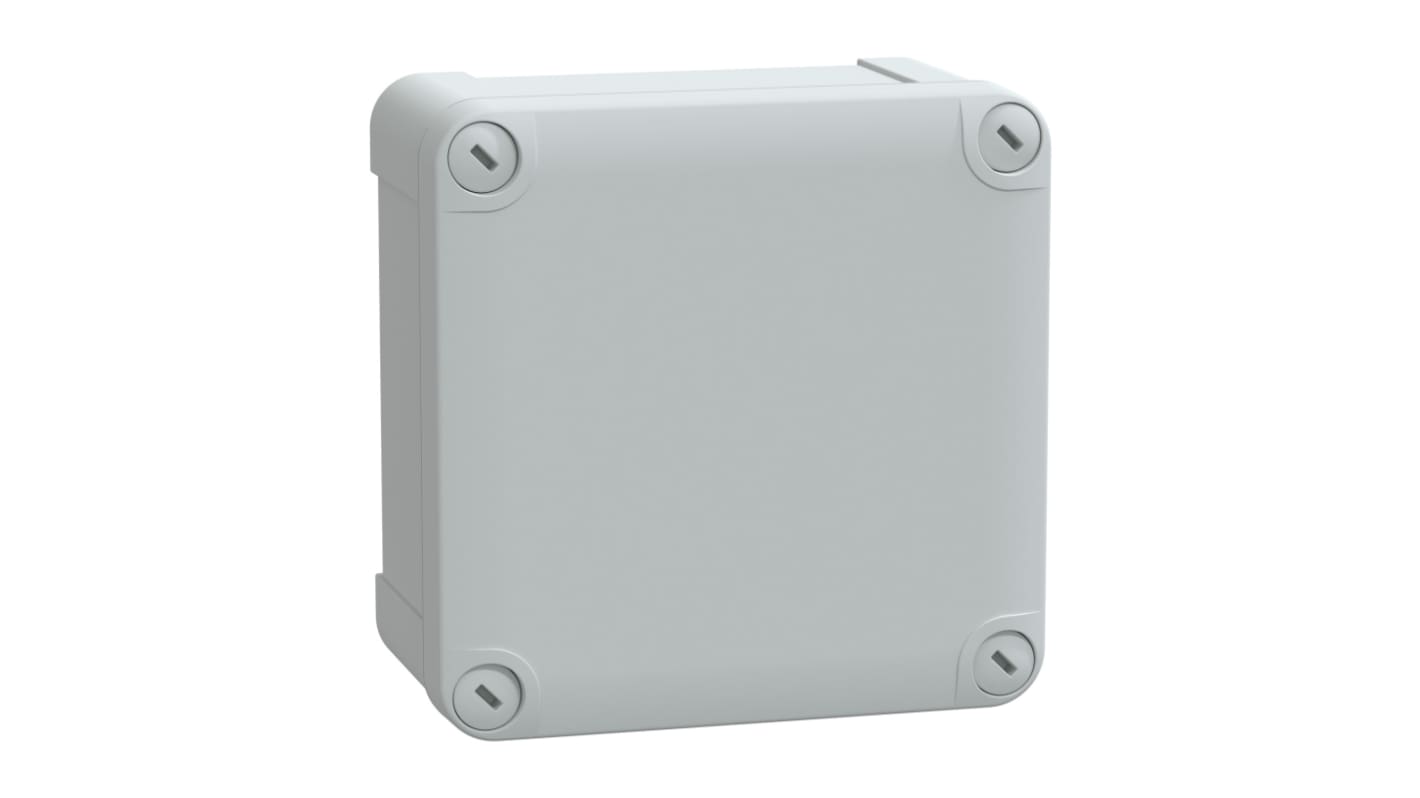

Schneider Electric PanelSeT Series Polycarbonate Wall Box, IP66, 116 mm x 116 mm x 62 mm

View all Wall Boxes

Subtotal (1 unit)*

£10.58

(exc. VAT)

£12.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 165 unit(s) ready to ship
  • Plus 18 unit(s) ready to ship from another location
  • Plus 25 unit(s) shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£10.58

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
689-9742
Mfr. Part No.:
NSYTBP11116
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Wall Box

External Height

116mm

External Depth

62mm

Body Material

Polycarbonate

Transparent Door

No

IP Rating

IP66

Chassis Plate

No

Door Lock Type

Screw

Gland Plate

No

Mounting plate

No

External Width

116mm

Internal Mount Type

PCB

Colour

Grey

Series

PanelSeT

Standards/Approvals

UL 508 A, IEC 62208, RoHS, TÜV, REACH

Better World Product

Yes

IK Rating

IK08

Fixing Kit

No

Schneider Electric Thalassa TBP Series Wall Box, 116mm External Height, IP66 - NSYTBP11116


This wall box is an industrial enclosure designed for general-purpose use. Constructed from durable polycarbonate, it features external dimensions of 116mm in height, width, and 62mm in depth. The enclosure is suitable for outdoor applications when installed with a canopy or shelter, ensuring reliable performance in various environments.

Features & Benefits


• IK08 rating ensures resistance to mechanical impacts

• Captive screw lock design enhances security against unauthorised access

• Made from polycarbonate for high durability and strength

• Compatible with mounting bosses for simplified internal installation

Applications


• Utilised for housing electrical components in outdoor settings

• Ideal for power distribution in challenging environmental conditions

• Suited for automation and electronic control systems

• For mounting essential equipment in mechanical installations

What is the significance of the IP66 rating for this product?


The IP66 rating signifies that the enclosure is totally dust-tight and can withstand powerful water jets from any direction, making it suitable for outdoor installations.

How do the captive screws improve security?


Captive screws remain attached to the cover and prevent loss, ensuring that the enclosure can only be accessed with the correct tools, thus enhancing safety.

What conditions can this wall box operate in?


It operates effectively in ambient temperatures ranging from -25°C to 80°C, allowing for versatile use in various climates.

What is the weight of this wall box and how does it affect installation?


Weighing only 0.171kg, the box is lightweight, making it easy to handle and install without requiring significant structural support.

Certificate No.

DEMKO, SEMKO, TÜV, UL.
