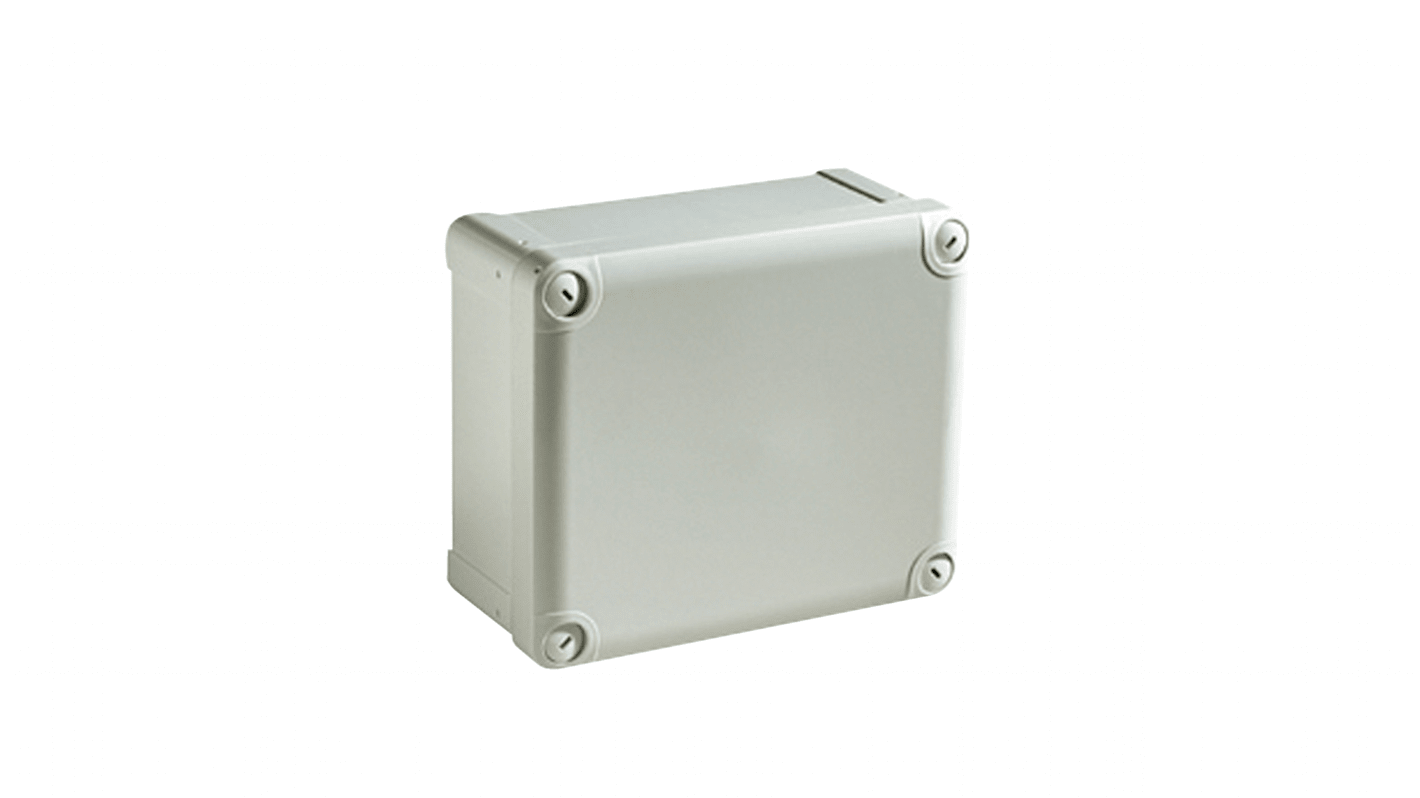

Schneider Electric Polycarbonate Wall Box, IP66, 116 mm x 74 mm x 62mm
- RS Stock No.:
- 247-2192
- Mfr. Part No.:
- NSYTBP1176
- Brand:
- Schneider Electric
Subtotal (1 pack of 5 units)*
£50.57
(exc. VAT)
£60.685
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £10.114 | £50.57 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 247-2192
- Mfr. Part No.:
- NSYTBP1176
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| External Height | 116 mm | |
| External Width | 74 mm | |
| External Depth | 62mm | |
| Body Material | Polycarbonate | |
| IP Rating | IP66 | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
External Height 116 mm | ||
External Width 74 mm | ||
External Depth 62mm | ||
Body Material Polycarbonate | ||
IP Rating IP66 | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- HU
Thalassa PC plastic industrial casing, IP66
The Thalassa TBP series from Schneider Electric is a range of multi-purpose polycarbonate wall mounting enclosures with an electrical insulation class II. The enclosures have a rounded design which helps increase the boxes robustness.
Features and Benefits
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK08 (joules 5) meaning the wall box is protected against a 1.7kg object dropped from 29.5 cm in height
• Usage temperature of -25° C to +80° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Various plugs in body shell for attaching accessories
• Multiple wall-mounting methods: directly by the holes on the base of the case, by channels outside the sealed area, by fixing wrap-over clamps
• External mechanical impact resistance of IK08 (joules 5) meaning the wall box is protected against a 1.7kg object dropped from 29.5 cm in height
• Usage temperature of -25° C to +80° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Various plugs in body shell for attaching accessories
• Multiple wall-mounting methods: directly by the holes on the base of the case, by channels outside the sealed area, by fixing wrap-over clamps
Typical Applications
The range of Thalassa TBP enclosures are suitable for the protection of small size components that require little intervention or maintenance.
Standards
EN 50102, IEC 60695-2-11, IEC 536, IEC 60529, IEC 62208
The Schneider Electric Thalassa industrial box made from polycarbonate has grey colour. The cover can be fixing from metal screws.
IP degree of protection IP66 conforming to NEMA 4.4X
Operating temperature from -25 to 80 °C
Operating temperature from -25 to 80 °C
