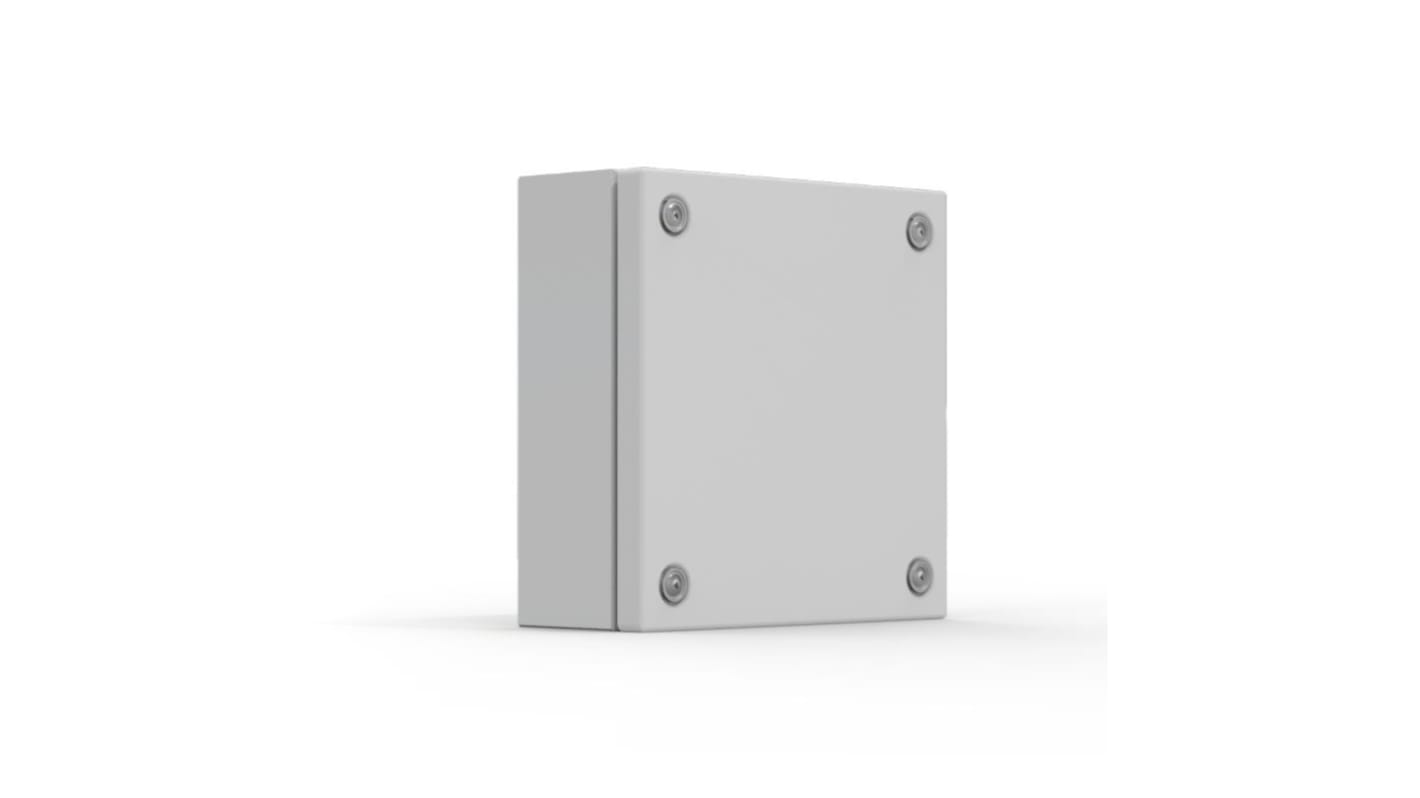

nVent HOFFMAN STB Series Mild Steel Terminal Box, IP66, No, 300 mm x 300 mm x 80 mm
- RS Stock No.:
- 270-1562
- Mfr. Part No.:
- STB303008
- Brand:
- nVent HOFFMAN
Subtotal (1 unit)*
£57.26
(exc. VAT)
£68.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.26 |
*price indicative
- RS Stock No.:
- 270-1562
- Mfr. Part No.:
- STB303008
- Brand:
- nVent HOFFMAN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| External Height | 300mm | |
| Product Type | Terminal Box | |
| External Depth | 80mm | |
| Body Material | Mild Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Colour | RAL 7035 | |
| External Width | 300mm | |
| Series | STB | |
| Standards/Approvals | No.94, TYPE 4, Type 4 12, UL 508A Listed, No.14, No.0.4, GOST, File No. E92044 NEMA/EEMAC Type 4, File No. E92044 cUL Listed per CSA C22.2 No.0, EAC, 13 IEC 62208 IP66 KEMA | |
| Hazardous Area Certification | No | |
| IK Rating | IK08 | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
External Height 300mm | ||
Product Type Terminal Box | ||
External Depth 80mm | ||
Body Material Mild Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Colour RAL 7035 | ||
External Width 300mm | ||
Series STB | ||
Standards/Approvals No.94, TYPE 4, Type 4 12, UL 508A Listed, No.14, No.0.4, GOST, File No. E92044 NEMA/EEMAC Type 4, File No. E92044 cUL Listed per CSA C22.2 No.0, EAC, 13 IEC 62208 IP66 KEMA | ||
Hazardous Area Certification No | ||
IK Rating IK08 | ||
RoHS Status: Exempt
The nVent Hoffman mild steel terminal box range, STB, with a IP 66 protection degree, is available off the shelf in many different sizes. The STB range is well suited for demanding indoor environments. Water and dust are prevented from entering the termin
Sealing is ensured by an injected one piece polyurethane gasket
RAL 7035, structured powder coating finish
