Schneider Electric PanelSeT Series Fibreglass Reinforced Polyester Wall Box, IP66, 747 mm x 536 mm x 300mm
- RS Stock No.:
- 220-6401
- Mfr. Part No.:
- NSYPLM75VG
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£407.98
(exc. VAT)
£489.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £407.98 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-6401
- Mfr. Part No.:
- NSYPLM75VG
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| External Height | 747 mm | |
| External Width | 536 mm | |
| External Depth | 300mm | |
| Body Material | Fibreglass Reinforced Polyester | |
| IP Rating | IP66 | |
| Series | PanelSeT | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
External Height 747 mm | ||
External Width 536 mm | ||
External Depth 300mm | ||
Body Material Fibreglass Reinforced Polyester | ||
IP Rating IP66 | ||
Series PanelSeT | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
- COO (Country of Origin):
- ES
Schneider Electric NSYPLM75VG

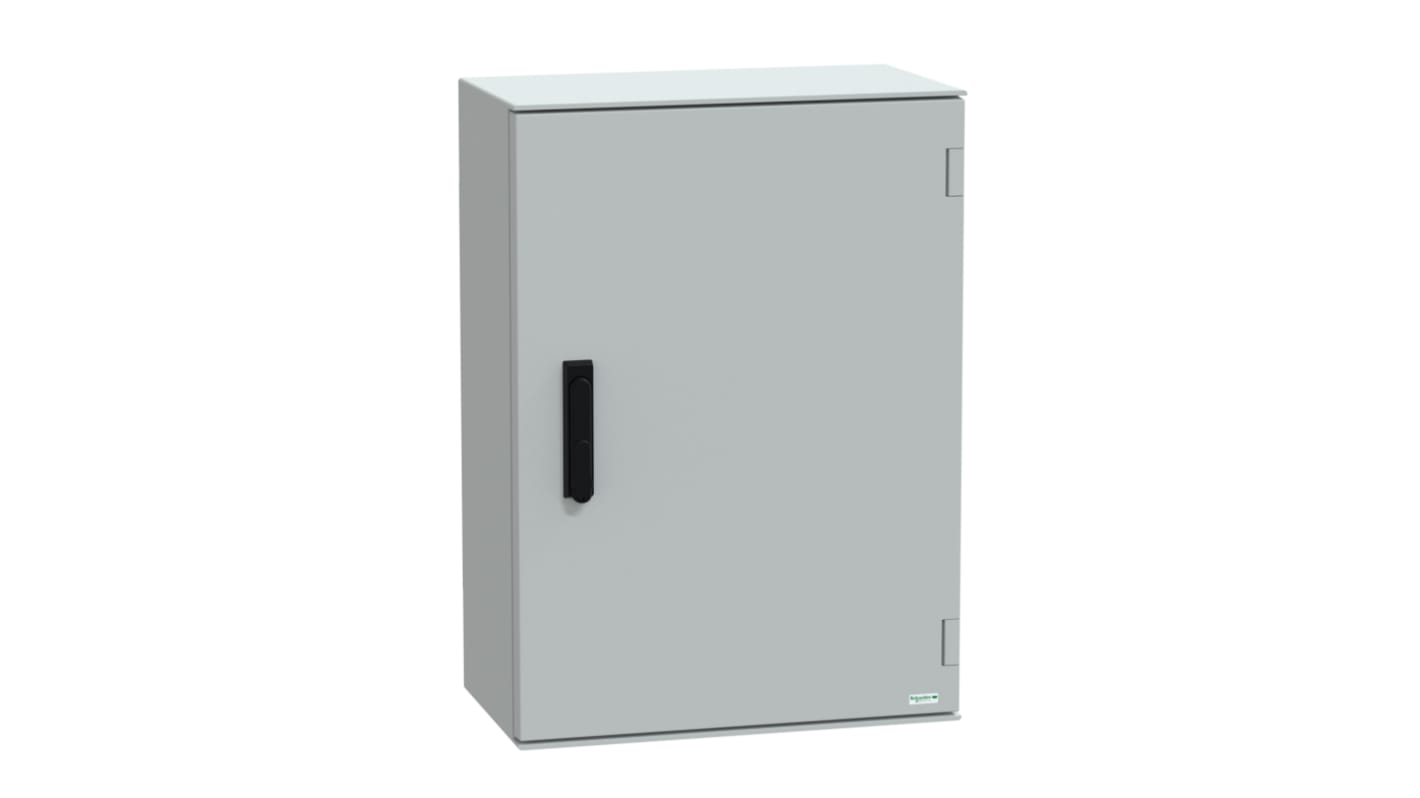

Thalassa PLM wall-mounting polyester enclosure monobloc. 747 x 536 x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Features & Benefits
• Large door opening of 180 degrees for easy access to contents
• IP66 (ingress protection) rated enclosure that's dust-tight and protected against rain and water jets
• Halogen-free, so doesn't emit toxic fumes in a fire for improved safety
• Versatile option suitable for both indoor and outdoor use
• IP66 (ingress protection) rated enclosure that's dust-tight and protected against rain and water jets
• Halogen-free, so doesn't emit toxic fumes in a fire for improved safety
• Versatile option suitable for both indoor and outdoor use
Applications
• Residential buildings
• Automated industries
• Electrical distribution and control
• Automated industries
• Electrical distribution and control
Can you see what's inside this wall box?
No, this wall box has a solid polyester door, so you're not able to see inside without opening it.
Does this wall box have a lock?
Yes, the box has an integral lock so you can prevent access to its contents by unauthorised personnel.
