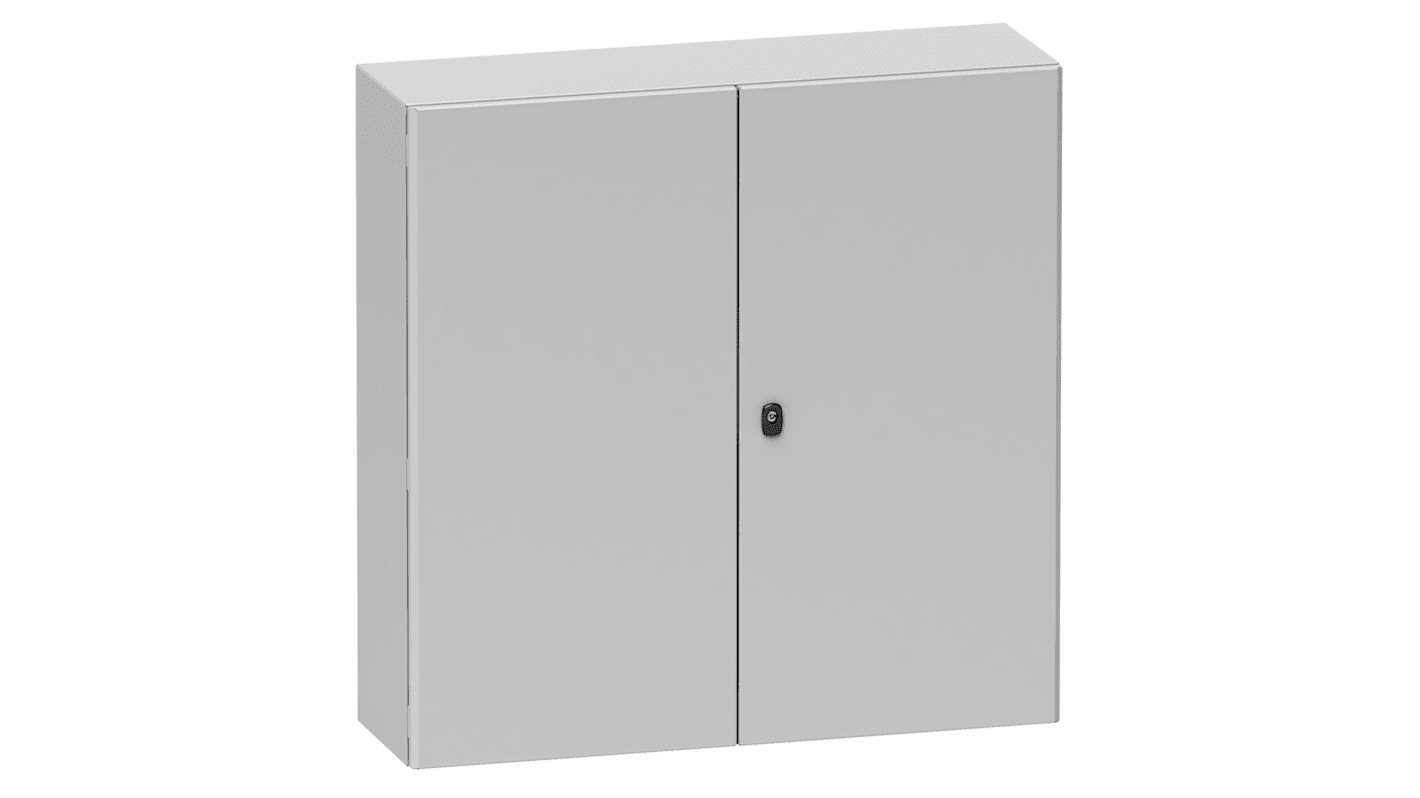

Schneider Electric PanelSeT S3D Series Steel Wall Box, IP55, 1200 mm x 1200 mm x 400 mm

RS Stock No.:: 211-3970
Mfr. Part No.:: NSYS3D121240D
Brand:: Schneider Electric

Schneider Electric PanelSeT S3D Series Steel Wall Box, IP55, 1200 mm x 1200 mm x 400 mm

Subtotal (1 unit)*

£905.13

(exc. VAT)

£1,086.16

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£905.13

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 211-3970
Mfr. Part No.:: NSYS3D121240D
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Wall Box
	External Height	1200mm
	External Depth	400mm
	Body Material	Steel
	Transparent Door	No
	IP Rating	IP55
	Chassis Plate	No
	Door Lock Type	Double Bar
	Gland Plate	Yes
	Mounting plate	No
	Colour	Grey
	External Width	1200mm
	Series	PanelSeT S3D
	Standards/Approvals	IEC 62208, LR, REACH, cUL, DNV, UL, RoHS, BV
	Better World Claim	Designed for Disassembly
	Better World Product	Yes
	IK Rating	IK10

	Select all
	Brand Schneider Electric
	Product Type Wall Box
	External Height 1200mm
	External Depth 400mm
	Body Material Steel
	Transparent Door No
	IP Rating IP55
	Chassis Plate No
	Door Lock Type Double Bar
	Gland Plate Yes
	Mounting plate No
	Colour Grey
	External Width 1200mm
	Series PanelSeT S3D
	Standards/Approvals IEC 62208, LR, REACH, cUL, DNV, UL, RoHS, BV
	Better World Claim Designed for Disassembly
	Better World Product Yes
	IK Rating IK10

RoHS Status: Exempt

COO (Country of Origin):: FR

Schneider Electric PanelSet S3D Steel Wall Box Enclosures.

From schneider Electric this is the S3D series of Steel wall boxes, wall mounted enclosures. The S3D are enclosures are light and you can choose from IP 66, IP 55 IK 10 and IK 08 models. This durable and hard-wearing wall box has a high UV resistance with treated hinges including aluminium hinge pins. A 120° opening, reversible door can be easily removed and has a 20 mm return fold ensuring the door stays rigid and in place. This is a truly Universal wall box enclosure with additional safety features, easy to install and mount plus choose from various chassis, door types and sizes available. The S3D Wall Box includes a plasma welding, chamfered door edge and is Epoxy-polyester powder coated.

Spacial S3D Wall Box Enclosure Features.

Light with a folded cross structure steel sheet.

One-piece body folded and welded, double plate thickness gutter shaped front profile.

Flat rear panel.

IP 66 (single door) protection, IP 55 (double door) protection.

IK 10 impact resistance (plain doors), IK 08 impact resistance (glazed doors).

Choose from plain or glazed doors.

Sizes available from 300X200X150 to 1400X1000X300 mm.

120° reversible door opening.

2 or 3 removable concealed hinges with 3 closure points.

1 welded earth studs on the door and enclosure body.

4 welded back studs shouldered 10mm for direct mounting of chassis.

Wall mounting brackets fixed from the outside.

Wide choice of cable gland plates that can be equipped with quick cable entrance.

Wide range of chassis (silk-screened chassis, micro-perforated chassis, perforated chassis).

Protection.

IK10 meaning that the enclosures are protected against 20 joules of impact (the equivalent to the impact of a 5kg mass dropped from 400mm above the impacted surface).

;

IP66 gives protection against dust and powerful water jets. Can be used on ship decks.

The Schneider Electric Plain door with locking system is for PanelSet S3D H800xW800. It is for multi purpose.

Applications.

Industrial automation and industrial control

Dedicated enclosure with EMC enclosure S3HF (10 dimensions).

Dedicated enclosure with terminal enclosure S3DB (11 dimensions).

Wide choice of accessories chassis, cable entrance and cable management.

;Electrical distribution

Dedicated enclosure with Spacial S3DM (8 dimensions enclosure with Depth 150mm).

;Electronics and Industrial Networks

Dedicated enclosure Spacial VDM (equipped with 19'' frame).

NSYS3D121240D Spacial S3D Multi-purpose Compact Wall Box Enclosure.

Compact.

Multi-purpose.

Wall mounting.

2 x Plain door.

No mounting plate supplied.

Standard gland plate.

Gutter -shaped front rail double sheet thickness Single piece body.

120° Reversible Door opening x 2.

3 Points lock, 3 mm double -bar lock.

Hinges, Cable gland plate are removable.

Enclosure is steel.

Epoxy -polyester powder enclosure finish with a Gey colour RAL 7035.

IP55 conforming to IEC 60529.

IK10 conforming to IEC 62262.

What is included?

1 x Enclosure body, 2 x Doors, 1 x lock, 2 x Cable gland plates.

Approvals

BV, CUL, DNV, GL, LR, UL.

Standards

IEC 62208
