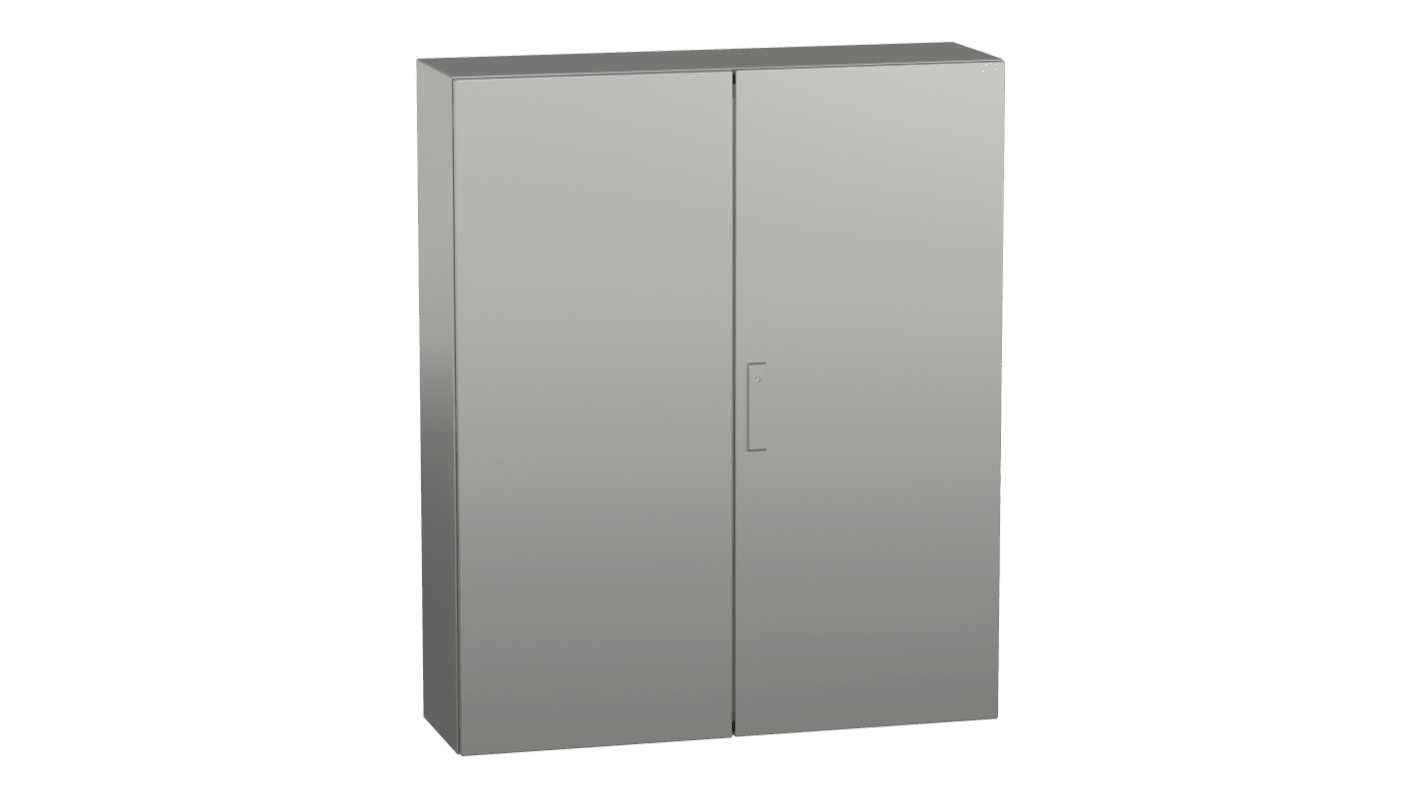

Schneider Electric PanelSeT S3X Series Stainless Steel Wall Box, IP55, 1200 mm x 1000 mm x 300mm

View all Wall Boxes

Subtotal (1 unit)*

£2,043.48

(exc. VAT)

£2,452.18

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 30 October 2025
  • Plus 999,999,998 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£2,043.48

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
211-3979
Mfr. Part No.:
NSYS3X121030
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

External Height

1200 mm

External Width

1000 mm

External Depth

300mm

Body Material

Stainless Steel

IP Rating

IP55

Chassis Plate

No

Door Lock Type

3-point lock

Gland Plate

No

Colour

Steel

Series

PanelSeT S3X

Better World Verification

Green Premium

External Mounting Type

Wall Mount

Better World Product

Yes

Special Features

120° Door Opening

IK Rating

IK10

RoHS Status: Exempt

COO (Country of Origin):
ES

Schneider Electric PanelSet S3X Stainless Steel Wall Box Enclosures.


From Schneider Electric this is the PanelSet S3X range of 304 stainless steel wall-mounting enclosures are made from a one-piece metal sheet, folded and welded on the corner’s excellent performance in exposed environments. The PanelSet S3X wall box has a front rail gutter protecting the wall box enclosure and contents form water, oil and other liquid penetration.

PanelSet S3X Wall Box Enclosure Features.


  • Stainless steel AISI 304L or AISI 316L.

  • Polished Scotch Brite finish.

  • Watertight (IP66 single door, IP 55 double door), (IK 10 plain door, IK 08 glazed door).

  • 120° opening, reversible door can be mounted on the left or the right.

  • Stainless steel concealed hinges.

  • Hinges are mounted along height dimension.

  • Easy to mount indoors or outdoors.

  • Easy to clean and hygienic.

NSYS3X121030 PanelSet S3X Multi-Purpose Stainless Steel Compact Wall Box Enclosure.


Features and Benefits.


  • Compact.

  • Wall mounted.

  • Single piece body, cross-shaped structure Gutter shaped front rail.

  • 2 x Plain door, 120° Reversible opening, hinged (removable).

  • 3 points lock, 3 mm double-bar.

  • Mounting plate and gland plate NOT included.

  • IP 55 conforming to IEC 60529.

  • IK10 conforming to IEC 62262.

Material.


  • Stainless steel hinge.

  • Door and wall box - Stainless steel 316L, Scotch-Brite® brushed.

  • Material is 1.5 mm thick.

What is supplied?


  • 1 body, 2 doors, 1 lock (door), 1 reinforcement frame drilled (door).

Approvals

CAN/CSA 22, UL 508 type A.

Standards

IEC 62208
