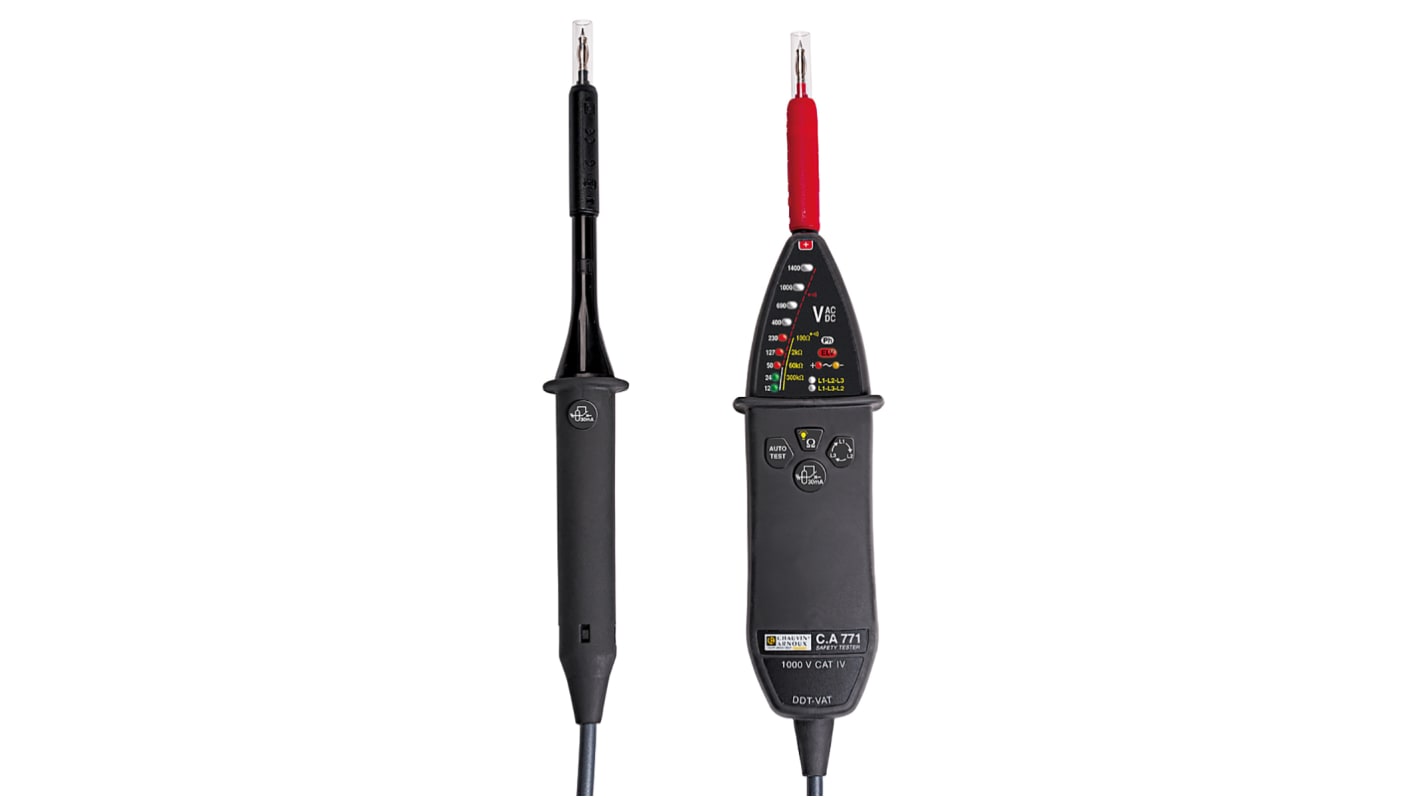

Chauvin Arnoux CA 771 IP2X, LED Voltage tester, 1000 V ac, 1400V dc, Continuity Check, Battery Powered, CAT IV
- RS Stock No.:
- 896-2186
- Mfr. Part No.:
- P01191771A
- Brand:
- Chauvin Arnoux
71 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£159.47
(exc. VAT)
£191.36
(inc. VAT)
| Units | Per unit |
| 1 + | £159.47 |
Calibration Options:
- RS Stock No.:
- 896-2186
- Mfr. Part No.:
- P01191771A
- Brand:
- Chauvin Arnoux
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
CA771 IP2X Voltage Absence Tester (VAT) CAT IV 1000V
The CA771 IP2X is a Voltage Absence Tester with LEDs for voltages up to 1000 VAC/1400 VDC with audible extended continuity and phase rotation testing. The CA771 IP2X also offers trip testing of RCDs rated 30 mA (or less), as well as lighting of the test probe/point of measurement
1000 VAC / 1400 VDC
Designed for extreme temperature conditions -30°C to +60°C
Single-pole phase test
Extended continuity test with audible and visual indication.
Two-pole phase sequence test with 2-wire method
RCD trip testing and Detection of stray voltages
Lighting of point of measurement
IP65
Designed for extreme temperature conditions -30°C to +60°C
Single-pole phase test
Extended continuity test with audible and visual indication.
Two-pole phase sequence test with 2-wire method
RCD trip testing and Detection of stray voltages
Lighting of point of measurement
IP65
Standards
IEC 61243-3:2009, EN 61243-3:2010, IEC 61010 1,000 V CAT IV
Supplied with
Voltage absence tester, User's guide in 5 languages, 2 x 1.5 V LR03/AAA batteries, 1 set of IP2X removable test probes Ø 4 mm and 1 Velcro strap.
Voltage Level Indicators
A range of voltage testers each available in versions suitable for electronic or electrical applications.
Specifications
Attribute | Value |
|---|---|
| Maximum Voltage | 1000 V ac, 1400V dc |
| Continuity Check | Yes |
| Safety Category | CAT IV 1000V |
| Display Type | LED |
| RCD Trip Test | Yes |
| IP Rating | IP65 |
| Battery Type | AA, LR6 |
| Power Source | Battery |
| Dimensions | 228 x 60 x 39mm |
| Weight | 350g |
| Height | 39mm |
| Length | 228mm |
| Maximum Operating Temperature | +60°C |
| Safety Category Level | CAT IV |
| Safety Category Voltage | 1000V |
| Model Number p | CA 771 IP2X |
| Width | 60mm |
| Minimum Operating Temperature | -30°C |
- RS Stock No.:
- 896-2186
- Mfr. Part No.:
- P01191771A
- Brand:
- Chauvin Arnoux
