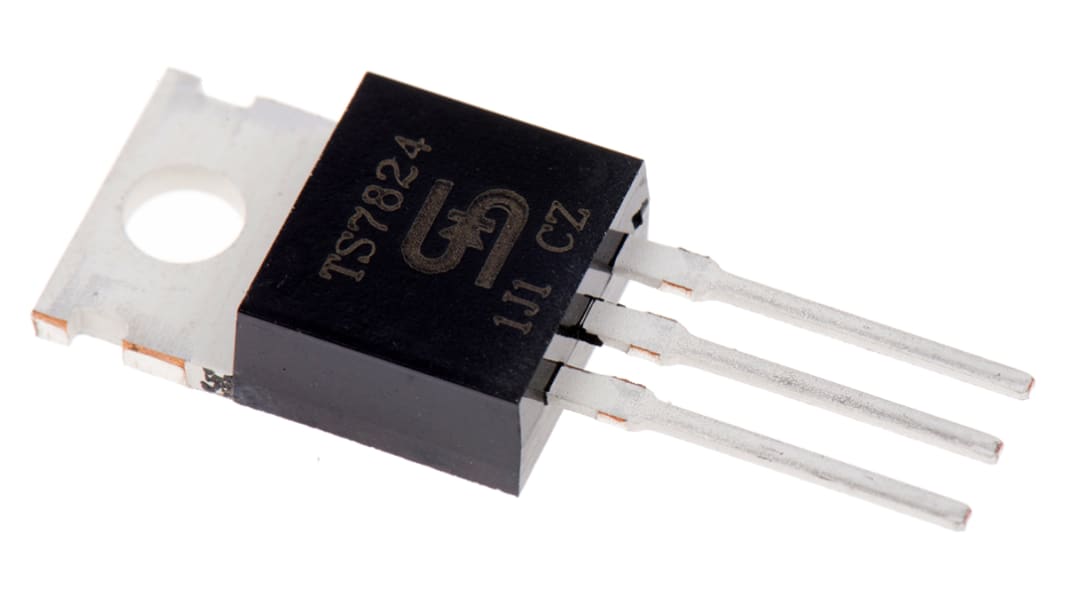

Taiwan Semiconductor TS7824CZ COG, 1 Linear Voltage, Voltage Regulator 1A, 24 V 3-Pin, TO-220

RS Stock No.:: 398-742
Mfr. Part No.:: TS7824CZ COG
Brand:: Taiwan Semiconductor

Taiwan Semiconductor TS7824CZ COG, 1 Linear Voltage, Voltage Regulator 1A, 24 V 3-Pin, TO-220

49 In stock - FREE next working day delivery available

Price Each (In a Pack of 50)

£0.149

(exc. VAT)

£0.179

(inc. VAT)

Units	Per unit	Per Pack*
50 +	£0.149	£7.45

*price indicative

RS Stock No.:: 398-742
Mfr. Part No.:: TS7824CZ COG
Brand:: Taiwan Semiconductor

TS7800 Series 3-Terminal Fixed Positive Voltage Regulator Data Sheet
ESD Control Selection Guide V1

Attribute	Value
Regulator Type	Linear Voltage
Maximum Output Current	1A
Number of Outputs	1
Output Voltage	24 V
Line Regulation	480 mV
Accuracy	±4%
Load Regulation	480 mV
Polarity	Positive
Mounting Type	Through Hole
Quiescent Current	4.6mA
Package Type	TO-220
Pin Count	3
Output Type	Fixed
Dimensions	10.5 x 4.83 x 9.02mm
Height	9.02mm
Maximum Operating Temperature	+125 °C
Maximum Input Voltage	40 V
Minimum Operating Temperature	0 °C
Width	4.83mm
Length	10.5mm

Taiwan Semiconductor TS7824CZ COG, 1 Linear Voltage, Voltage Regulator 1A, 24 V 3-Pin, TO-220

TS78xx 1A Linear Voltage Regulators, Taiwan Semiconductor
