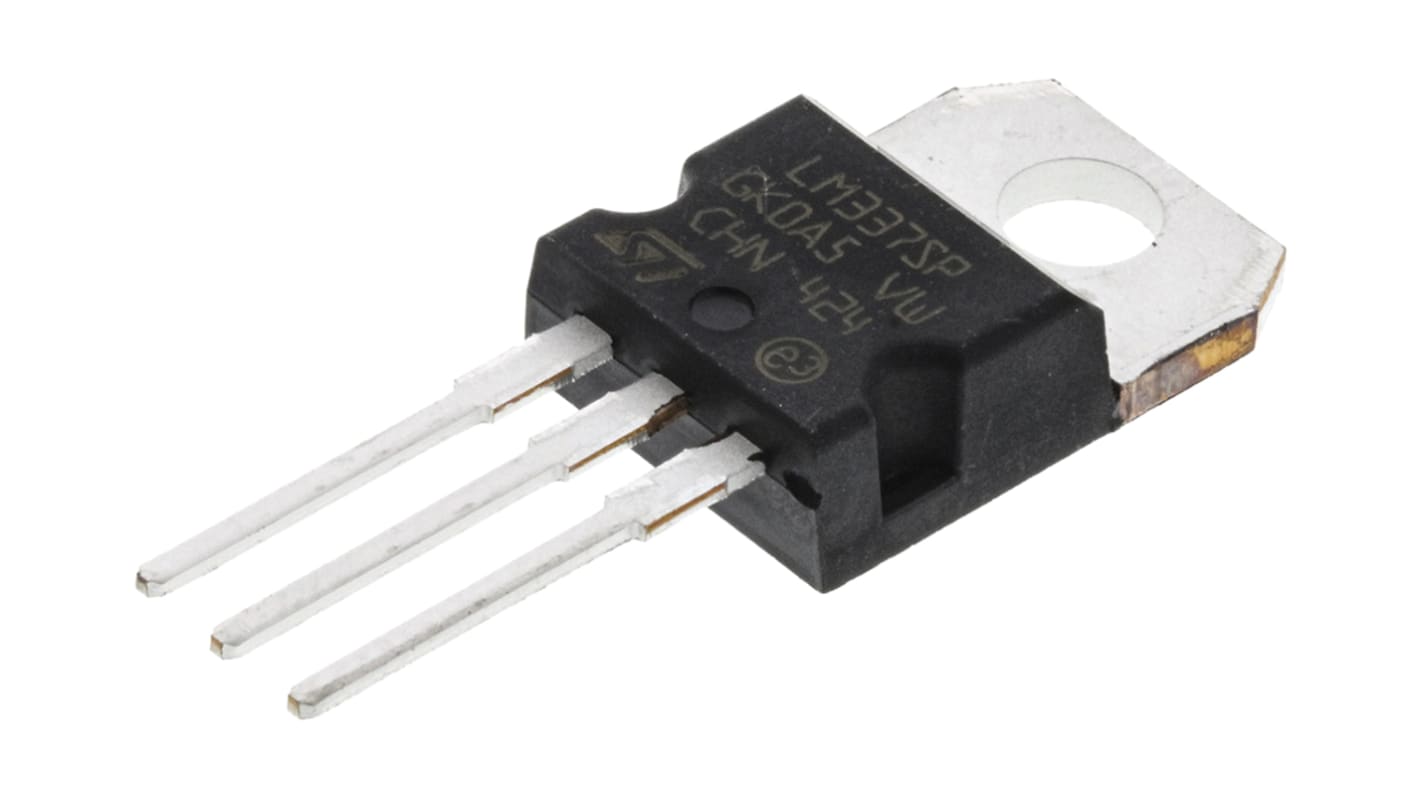

STMicroelectronics LM337SP, 1 Linear Voltage, Voltage Regulator 1.5A, -1.2 → -37 V 3-Pin, TO-220
- RS Stock No.:
- 168-7735
- Mfr. Part No.:
- LM337SP
- Brand:
- STMicroelectronics
100 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 50)
£0.648
(exc. VAT)
£0.778
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 - 50 | £0.648 | £32.40 |
| 100 - 450 | £0.44 | £22.00 |
| 500 - 950 | £0.417 | £20.85 |
| 1000 - 1950 | £0.323 | £16.15 |
| 2000 + | £0.307 | £15.35 |
| *price indicative | ||
- RS Stock No.:
- 168-7735
- Mfr. Part No.:
- LM337SP
- Brand:
- STMicroelectronics
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
LM337 Linear Voltage Regulator, STMicroelectronics
STMicroelectronics LM337 series of adjustable negative voltage regulators produce 1.5A for a voltage range that covers 1.2 V to -37 V. The voltage regulator requires two external resistors to set the output voltage. The LM337 regulators have full overload protection, current limit, thermal overload and safe area protection. Even if the adjustment terminal is detached the overload protection within the circuitry remains.
Output current 1.5 A
Load regulation 0.3%, Line regulation 0.01%
Ripple rejection: 77 dB
Three terminal transistor packages
Thermal regulation: 0.002%
50 ppm/°C temperature coefficient
Load regulation 0.3%, Line regulation 0.01%
Ripple rejection: 77 dB
Three terminal transistor packages
Thermal regulation: 0.002%
50 ppm/°C temperature coefficient
Linear Voltage Regulators, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 1.5A |
| Regulator Type | Linear Voltage |
| Output Voltage | -1.2 → -37 V |
| Number of Outputs | 1 |
| Line Regulation | 0.04 %/V |
| Load Regulation | 50 mV |
| Mounting Type | Through Hole |
| Polarity | Negative |
| Quiescent Current | 100µA |
| Package Type | TO-220 |
| Reference Voltage | -1.25V |
| Pin Count | 3 |
| Output Type | Adjustable |
| Dimensions | 10.2 x 4.6 x 15.75mm |
| Maximum Input Voltage | 40 V |
| Height | 15.75mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | 0 °C |
| Length | 10.2mm |
| Width | 4.6mm |
