Festo Vacuum Pump, 0.95mm nozzle , 3.5bar 19.5L/min, OVEM series
- RS Stock No.:
- 203-6219
- Mfr. Part No.:
- OVEM-10-H-B-QO-OE-N-2P
- Brand:
- Festo
Subtotal (1 unit)*
£686.86
(exc. VAT)
£824.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £686.86 |
*price indicative
- RS Stock No.:
- 203-6219
- Mfr. Part No.:
- OVEM-10-H-B-QO-OE-N-2P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Maximum Suction Flow | 19.5L/min | |
Maximum Vacuum Pressure | 3.5bar | |
Nozzle Diameter | 0.95mm | |
Manufacturer Series | OVEM | |
Silencer | Yes | |
Maximum Input Pressure | 6bar | |
Maximum Operating Temperature | +50°C | |
Minimum Operating Temperature | 0°C | |
Operating Pressure | 2 → 8bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Maximum Suction Flow 19.5L/min | ||
Maximum Vacuum Pressure 3.5bar | ||
Nozzle Diameter 0.95mm | ||
Manufacturer Series OVEM | ||
Silencer Yes | ||
Maximum Input Pressure 6bar | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature 0°C | ||
Operating Pressure 2 → 8bar | ||
- COO (Country of Origin):
- HU

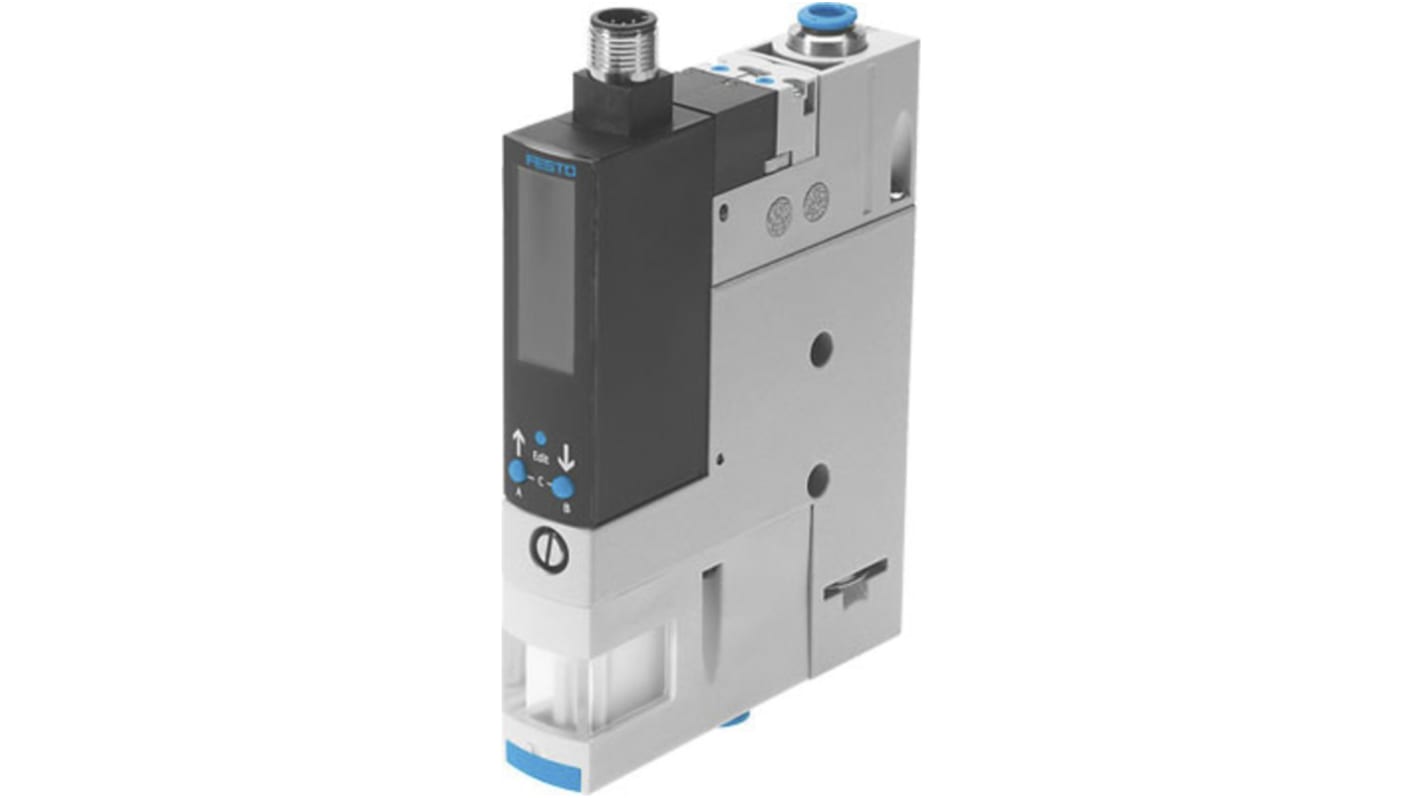

Festo Modular Vacuum Pump, 0.95mm Nozzle, 20mm Width - OVEM-10-H-B-QO-OE-N-2P
This Festo vacuum pump releases high-pressure air that controls the movement of fluids in engineering and manufacturing processes. The internal solenoid valve quickens the movement of the air supply to build up a vacuum, cutting down switching time. Its open silencer means this pump works at a moderate volume of 73dB, which is approximately the same as a washing machine. You can easily view its pressure levels via the front-facing LCD (liquid-crystal display). Install this pump in your pneumatic machines for fast-acting vacuum operation.
• Pre-installed filter blocks contaminants from entering the pump
• 0.8kV surge protection prevents damage from overcurrent
• IP65 (ingress protection) rating means it's dust-tight and watertight to prevent damage
• 0.8kV surge protection prevents damage from overcurrent
• IP65 (ingress protection) rating means it's dust-tight and watertight to prevent damage
Applications
• Food production and packaging
• Oil and gas industry
• Scientific research
• Oil and gas industry
• Scientific research
Can I manually override this Festo vacuum pump?
Yes – in the event of an emergency, you can manually interrupt and reset the operating process by using the blue operating buttons on the side of this device. This will return the vacuum to its base state for a fresh start.
How reliable is the filter on this Festo vacuum pump?
The filter is made of mesh, PA (polyamide) and sintered steel. This combination effectively blocks contaminants from entering the pump.
