SMC Vacuum Generator

View all Vacuum Generators
Bulk discount available

Subtotal (1 unit)*

£31.04

(exc. VAT)

£37.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£31.04
5 - 9£29.81
10 +£28.55

*price indicative

RS Stock No.:
176-5407
Mfr. Part No.:
ZH13DSA-08-02-10
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Product Type

Vacuum Generator

Standards/Approvals

RoHS

COO (Country of Origin):
JP

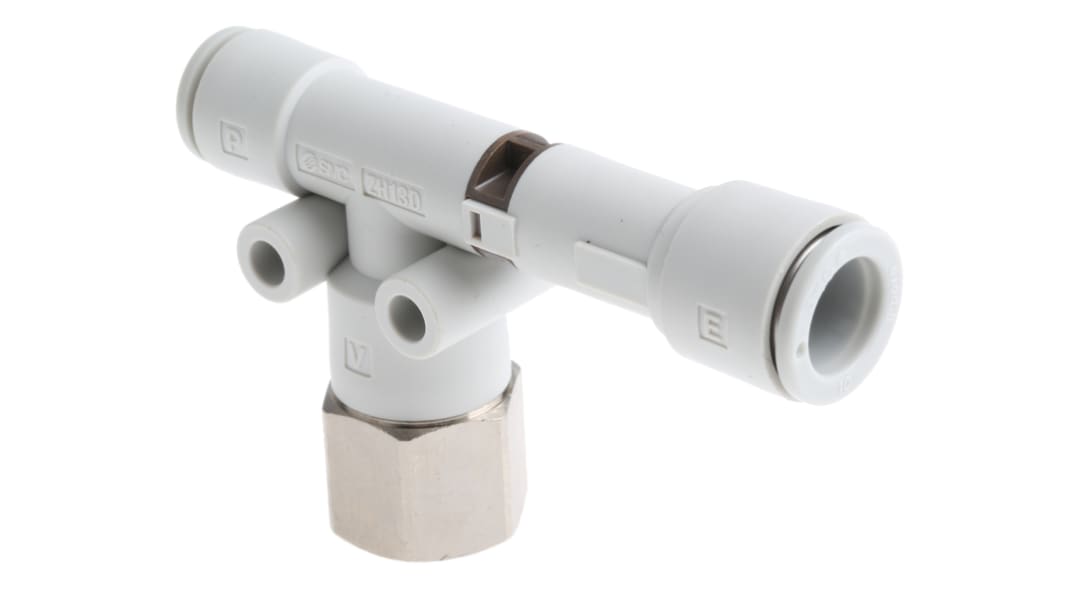

SMC Vacuum Generator, 1.3mm Nozzle Diameter - ZH13DSA-08-02-10


This vacuum generator is a Compact pneumatic ejector designed for creating negative pressure in automation systems using compressed air. It operates with one-touch and screw-in connections to integrate with standard tubing and fittings, and is intended for industrial environments where temperature ranges and material compatibility are considerations.

Features & Benefits


• Maximum vacuum -90 kPa for effective pick-and-place gripping
• Flow capacity 40 l/min ANR to support moderate throughput
• Nozzle nominal size 1.3mm for focused vacuum generation
• Pneumatic inlet one-touch Ø8 enables quick tubing connection
• Pneumatic exhaust one-touch Ø10 reduces installation time

Applications


• Suitable for end-of-arm tooling in robotic pick-and-place
• Ideal for vacuum handling of electronic components
• Used with pneumatic conveyors for lightweight part transfer
• Can be used for holding fixtures in assembly stations

What operating temperatures can it withstand?


It functions across ambient and medium temperatures from -5°C to 50°C.

Which tubing materials are compatible with the pneumatic connections?


Compatible materials include nylon, soft nylon and polyurethane tubing for the one-touch fittings.

What connections are provided for supply, vacuum and exhaust?


The product offers a one-touch Ø8 supply, a one-touch Ø10 vacuum connection and a one-touch Ø10 exhaust, with a screw-in vacuum port specified as Rc1/4 for alternate mounting.

Are silencers or mounting accessories included?


The unit can be supplied with a bracket and without a silencer in certain configurations or supplied without additional accessories for boxed variants.
