Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Vacuum Generator
	Maximum Suction Flow	89L/min
	Maximum Vacuum Pressure	-91kPa
	Nozzle Diameter	1.5mm
	Series	ZK2
	Silencer	Yes
	Maximum Supply Pressure	0.6MPa
	Minimum Operating Temperature	+5°C
	Maximum Operating Temperature	+50°C
	Standards/Approvals	CE, RoHS
	Exhaust Port Size	6 mm

	Select all
	Brand SMC
	Product Type Vacuum Generator
	Maximum Suction Flow 89L/min
	Maximum Vacuum Pressure -91kPa
	Nozzle Diameter 1.5mm
	Series ZK2
	Silencer Yes
	Maximum Supply Pressure 0.6MPa
	Minimum Operating Temperature +5°C
	Maximum Operating Temperature +50°C
	Standards/Approvals CE, RoHS
	Exhaust Port Size 6 mm

COO (Country of Origin):: JP

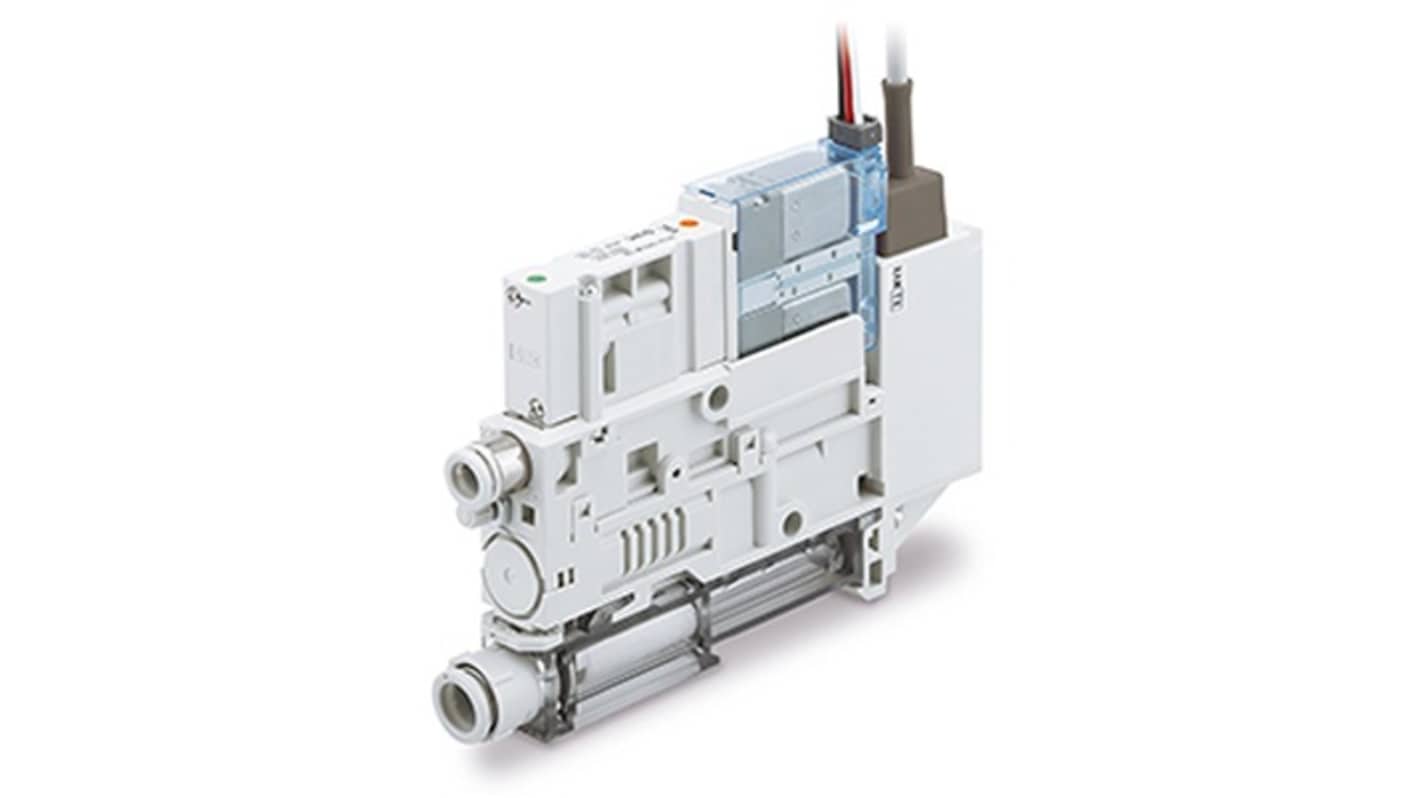

SMC ZK2 Series Vacuum Generator, 89L/min Maximum Suction Flow, -91kPa Maximum Vacuum Pressure - ZK2B15K5RWA-08

This vacuum generator provides compact, automated vacuum creation for industrial handling and control systems. It integrates a two-stage ejector with pilot-operated dual valves and an optional digital pressure switch to monitor and manage vacuum levels, making it suitable for pneumatic automation environments operating with compressed air.

Features & Benefits

• Maximum suction flow 89 L/min delivers steady pick-and-place throughput
• Maximum vacuum pressure -91 kPa enables reliable part retention
• Supply pressure capability up to 0.6 MPa supports varied plant Air supplies
• Nozzle diameter 1.5mm gives focused suction for small cups
• Exhaust port 6mm with silencer reduces noise and backpressure
• Operating temperature range +5 to +50 °C ensures stable performance

Applications

• Suitable for automated pick-and-place of electronic components
• Ideal for assembly-line material handling in mechanical workshops
• Used for vacuum gripping in electrical panel production
• Can be used for packaging pick-up operations requiring Compact ejectors

What kind of electrical Interface does it use for vacuum monitoring?

It operates from a 12 to 24VDC supply with a protected input and provides PNP open-collector switch outputs for general and valve control functions.

How are filtration and repeatability addressed for sensitive tasks?

A suction filter with a 30 μm element and 510mm² filtration area is fitted, and repeatability is ±0.2% F.S. ±1 digit for consistent detection.

What are the valve characteristics and actuation requirements?

Both supply and release valves are normally closed, pilot-operated popper-seal valves rated for 24VDC with 0.4 W power consumption.

How does the switch display and response support process control?

The integrated LED display provides a 3½-digit readout with 0.1 kPa resolution and switch response times down to 2.5 MS with selectable anti-chatter settings.

What environmental and electrical protections are provided?

The unit is IP40 rated, resists vibration and impact up to specified levels, and features insulation and short-circuit protection for switch outputs.

SMC Vacuum Generator, 1.5 mm nozzle, -91 kPa 89 L/min, ZK2 series
