Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Maximum Suction Flow	300L/min
	Product Type	Vacuum Generator
	Maximum Vacuum Pressure	101kPa
	Nozzle Diameter	0.3mm
	Series	ZL
	Silencer	No
	Vacuum Port Type	Plug Connection
	Supply Port Type	Plug Connection
	Minimum Operating Temperature	5°C
	Maximum Supply Pressure	0.35MPa
	Maximum Operating Temperature	50°C
	Standards/Approvals	CE/UKCA-Kennzeichnung, RoHS

	Select all
	Brand SMC
	Maximum Suction Flow 300L/min
	Product Type Vacuum Generator
	Maximum Vacuum Pressure 101kPa
	Nozzle Diameter 0.3mm
	Series ZL
	Silencer No
	Vacuum Port Type Plug Connection
	Supply Port Type Plug Connection
	Minimum Operating Temperature 5°C
	Maximum Supply Pressure 0.35MPa
	Maximum Operating Temperature 50°C
	Standards/Approvals CE/UKCA-Kennzeichnung, RoHS

COO (Country of Origin):: JP

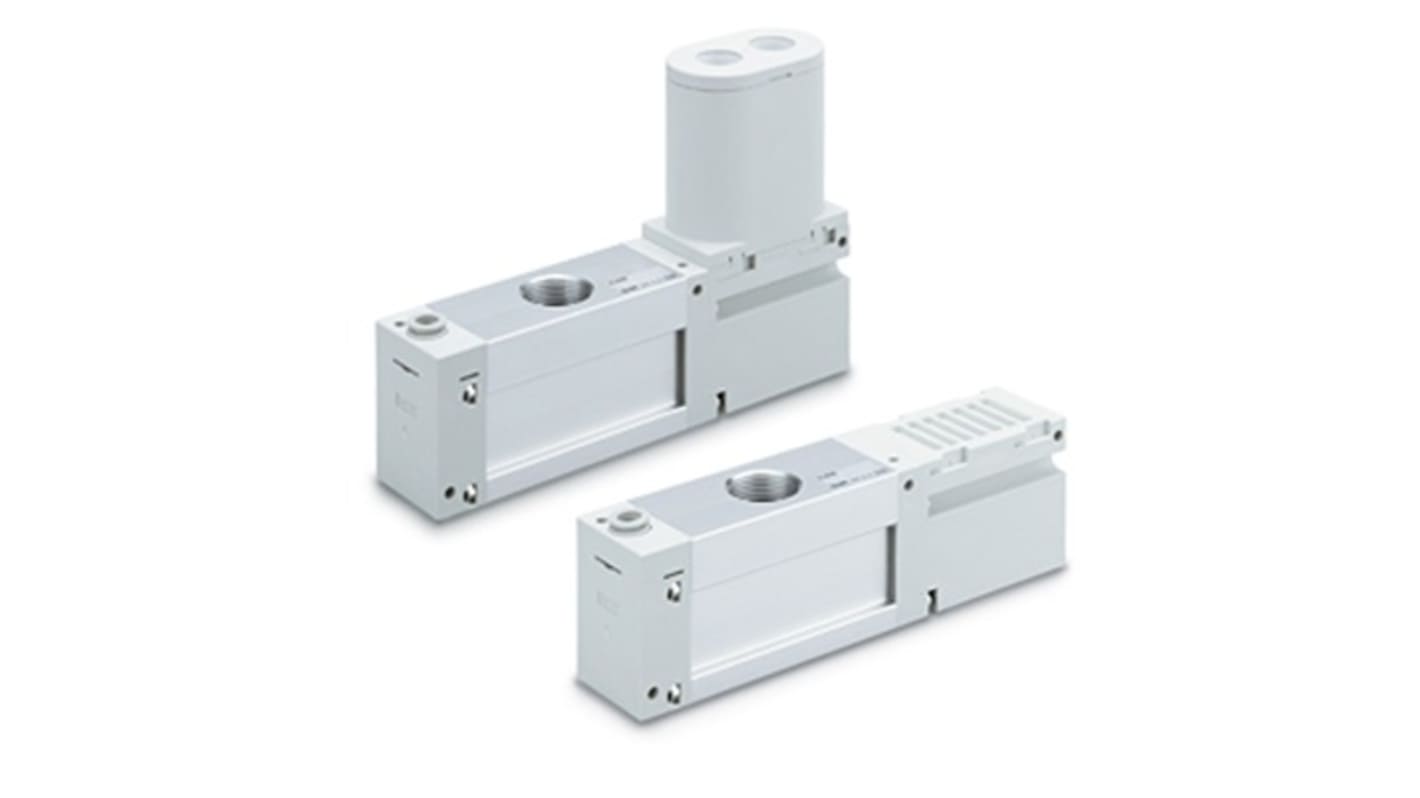

SMC Series ZL Vacuum Generator, 300L/min Maximum Suction Flow, 0.35MPa Maximum Supply Pressure - ZL3MF06

This vacuum generator provides compact, high-flow vacuum generation for industrial automation and handling applications. It uses a multistage ejector design to create suction from compressed Air and is suitable for environments where a small footprint and controlled operating temperatures are required. Connection is via plug-type ports for streamlined system integration.

Features & Benefits

• Maximum suction flow 300 L/min delivers strong pick-and-place capacity
• Nozzle diameter 0.3mm enables focused vacuum suction performance
• Supply pressure up to 0.35 MPa for robust compressed-air operation
• Maximum vacuum pressure 101 kPa supports deep vacuum tasks
• Operates between 5 to 50 °C for common industrial ambient ranges
• Plug connection vacuum port simplifies piping and maintenance

Applications

• Suitable for automated pick-and-place in electronics assembly
• Ideal for handling small or delicate components in automation lines
• Can be used for vacuum clamping in machining set-ups
• Used for conveyor-transfer vacuum tooling in packaging systems
• Suitable for intermittent vacuum hold in test fixtures

What is the expected Air consumption behaviour during operation?

Air consumption scales with suction load

the multistage ejector reduces consumption compared with single-stage designs under equivalent suction demand.

How should the device be installed with regard to ports?

Use the plug-type supply and vacuum ports with compatible tubing and ensure secure plug seating to prevent leaks and maintain rated performance.

Can it tolerate elevated ambient temperatures during continuous use?

Continuous operation is supported up to the specified maximum ambient temperature

keep supply conditions within the stated limits to avoid performance degradation.

How quickly does it achieve vacuum in a small sealed volume?

Time to reach a target vacuum depends on tank capacity and supply pressure

multistage diffusion accelerates evacuation compared with single-stage units.

Is a silencer included for exhaust noise control?

This unit is supplied without a silencer

consider external exhaust management if noise reduction is required.

SMC Vacuum Generator, 0.3 mm nozzle, 101 kPa 300 L/min, ZL series
