Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Maximum Suction Flow	100L/min
	Product Type	Vacuum Generator
	Maximum Vacuum Pressure	-84kPa
	Nozzle Diameter	1.2mm
	Series	ZL112A
	Silencer	Yes
	Vacuum Gauge	Yes
	Vacuum Port Type	Plug Connection
	Maximum Supply Pressure	0.5MPa
	Minimum Operating Temperature	5°C
	Supply Port Type	Plug Connection
	Maximum Operating Temperature	50°C
	Standards/Approvals	RoHS, UKCA, CE

	Select all
	Brand SMC
	Maximum Suction Flow 100L/min
	Product Type Vacuum Generator
	Maximum Vacuum Pressure -84kPa
	Nozzle Diameter 1.2mm
	Series ZL112A
	Silencer Yes
	Vacuum Gauge Yes
	Vacuum Port Type Plug Connection
	Maximum Supply Pressure 0.5MPa
	Minimum Operating Temperature 5°C
	Supply Port Type Plug Connection
	Maximum Operating Temperature 50°C
	Standards/Approvals RoHS, UKCA, CE

COO (Country of Origin):: JP

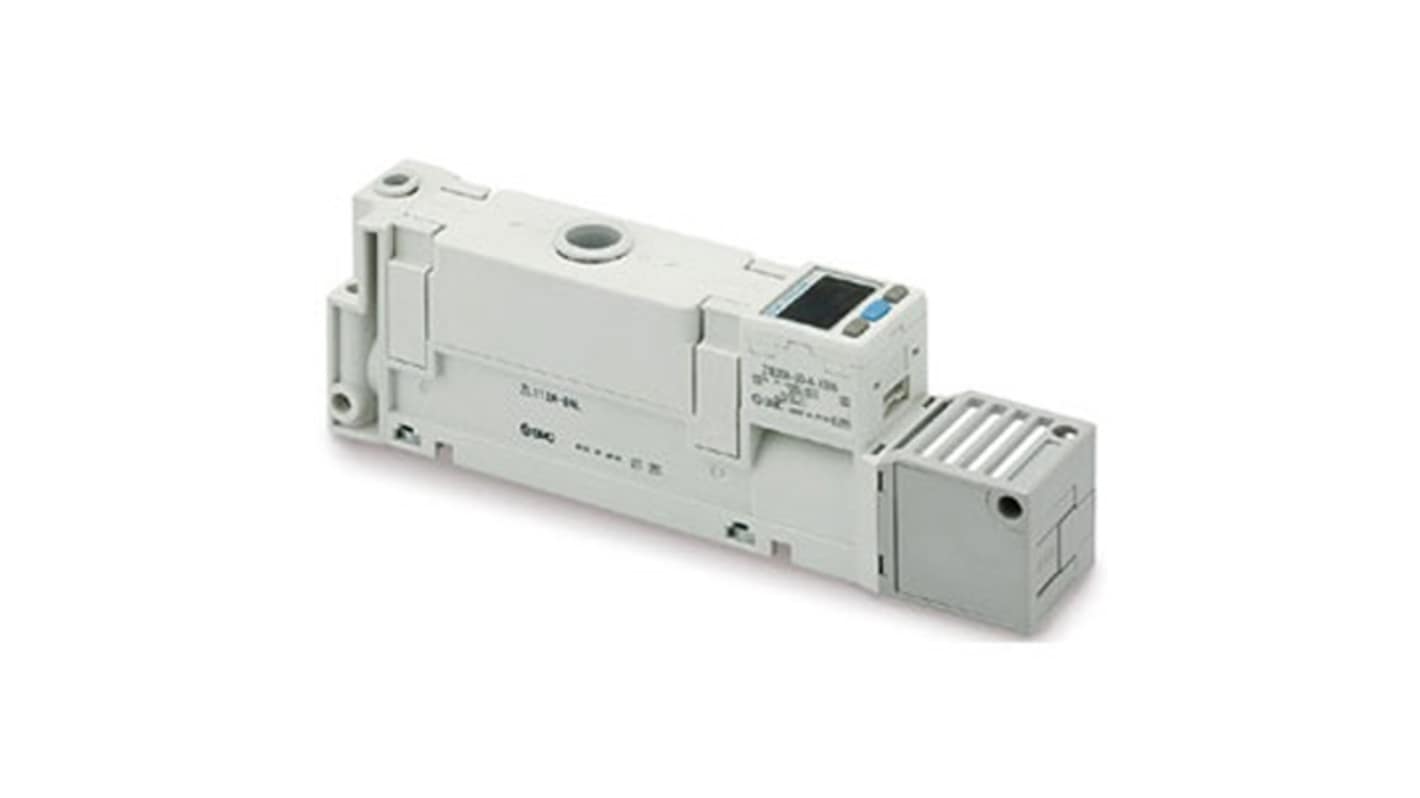

SMC ZL112A Series Vacuum Generator, 100L/min Maximum Suction Flow, -84kPa Maximum Vacuum Pressure - ZL112A-K15LNZ

This vacuum generator provides Compact pneumatic suction for industrial automation tasks, converting compressed Air into a controlled vacuum for handling and evacuation. It is designed for continuous operation within typical shop‑floor temperatures and offers integrated monitoring and exhaust noise suppression to support production environments.

Features & Benefits

• Maximum suction flow 100 L/min for steady material handling
• Operates up to 0.5 MPa supply pressure for robust pneumatic supply
• Achieves vacuum to −84 kPa for secure pick‑and‑place grip
• Built‑in vacuum gauge for immediate pressure confirmation
• Plug connection vacuum port simplifies tubing installation
• Integrated silencer reduces exhaust noise in confined spaces

Applications

• Suitable for automated pick‑and‑place in electronics assembly
• Ideal for vacuum holding in mechanical jigging operations
• Used with electrical panel component feeders for part transfer
• Can be used for small‑capacity tank evacuation in laboratory fixtures
• Suitable for integration into pneumatic conveyors for lightweight items

What temperature range can it be used in on the production floor?

It is rated for continuous use between 5 °C and 50 °C without derating of vacuum performance.

How is the exhaust noise managed when mounted near operators?

A factory‑fitted silencer attenuates exhaust sound and is integrated into the unit’s exhaust port configuration.

How is the device connected to plant Air and vacuum tubing?

Supply and vacuum connections use plug‑style ports allowing one‑touch or push‑fit tubing for Rapid installation.

What nozzle size governs its flow characteristics?

The ejector uses a 1.2mm nozzle which determines the balance of suction flow and Air consumption.

How does it behave under reduced supply pressure?

Suction flow and attainable vacuum vary with supply pressure

performance curves indicate lower supply reduces both flow and vacuum depth.

SMC Vacuum Generator, 1.2 mm nozzle, -84 kPa 100 L/min, ZL112A series
