Units | Per unit |
|---|---|
| 1 - 4 | £4.66 |
| 5 - 9 | £4.56 |
| 10 - 24 | £4.45 |
| 25 + | £4.40 |
*price indicative
- RS Stock No.:
- 472-014
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Belt Section | A | |
| Outer Length | 1015mm | |
| Datum Length | 995mm | |
| Inside Length | 965mm | |
| Top Width | 13mm | |
| Height | 8mm | |
| Material | PET, Rubber | |
| Minimum Pulley Diameter | 80mm | |
| Length | 965mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Belt Section A | ||
Outer Length 1015mm | ||
Datum Length 995mm | ||
Inside Length 965mm | ||
Top Width 13mm | ||
Height 8mm | ||
Material PET, Rubber | ||
Minimum Pulley Diameter 80mm | ||
Length 965mm | ||
- COO (Country of Origin):
- IN

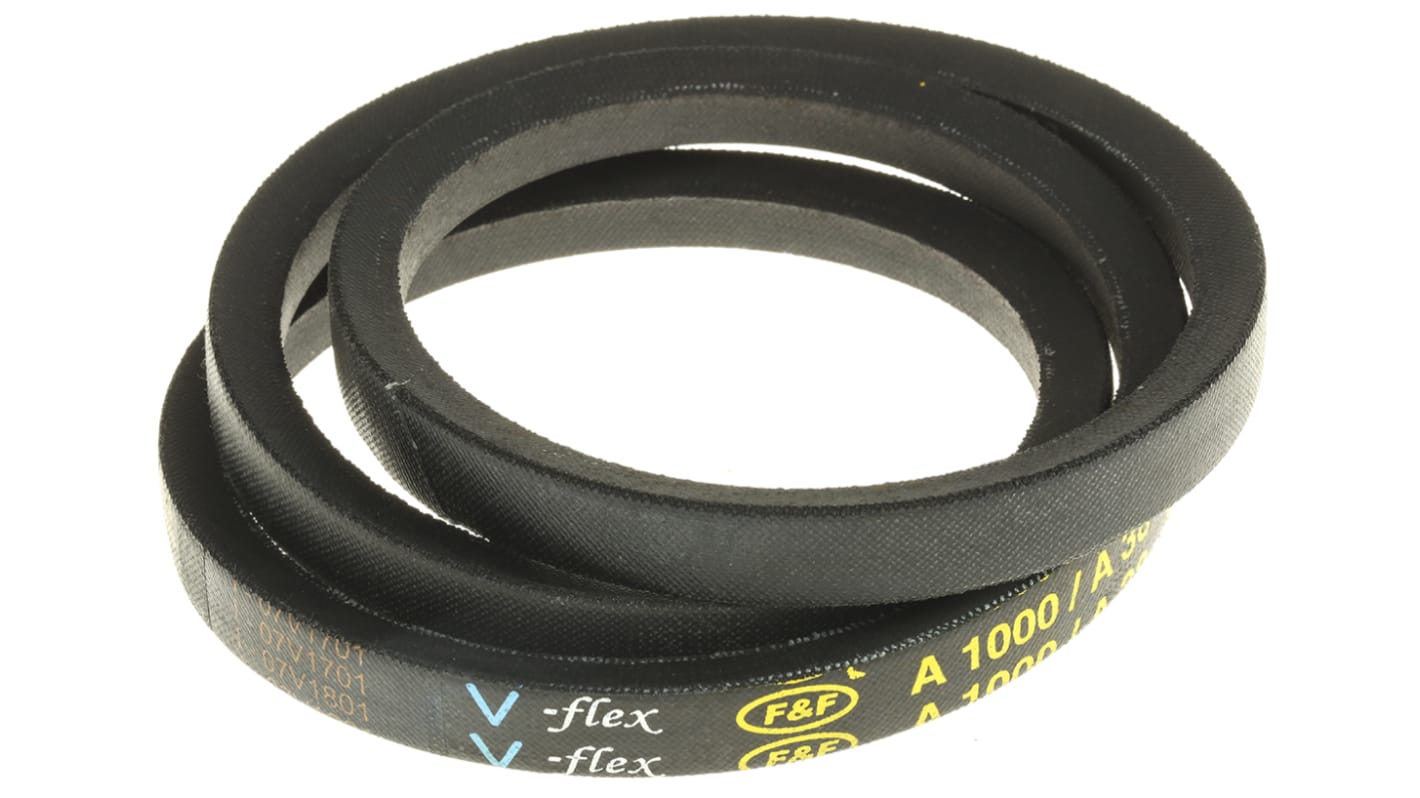

RS PRO A Section Drive Belts
Get your motor running with RS PRO A Drive Belts. Replace dull and weak drive belts with our high-performance solution. Our drive belts feature a special compounded stiff-yet-flex-crack resistant base and low-stretch construction, increasing their life and ensuring maximum performance. With RS PRO A Drive Belts, you can experience efficient, reliable, and long-lasting power transmission. What are you waiting for? Get your pulleys moving with RS PRO A Drive Belts.
Features and Benefits
- A Section, V Belt
- Special compounded stiff-yet-flex-crack resistant base
- High modulus low stretch (hmls) polyester cords and length stabilisation process resulting in low stretch and maximum life
- Anti-static, heat, oil and abrasion resistant
- Polychloroprene impregnated poly-cotton jacket
- Precision-built belts requiring no matching or coding
- Anti-static, heat, oil and abrasion resistant
Belt Construction
- Heat, Pre stretched Polyester cord
- Adhesion rubber
- Base rubber
- Polyester cotton fabric
Applications
- SPA Section V Belt Pulleys
- Industrial drives
Note
Minimum Pulley Diameter PCD for Z section belt: 50mm; A section belt: 80mm; B section belt: 125mm. Belt length refers to inside length dimension for type quoted. Refer to datasheet for further details.
Standards
API 1B, RMA IP 20, DIN 2215, ISO 4184 & BS3790
