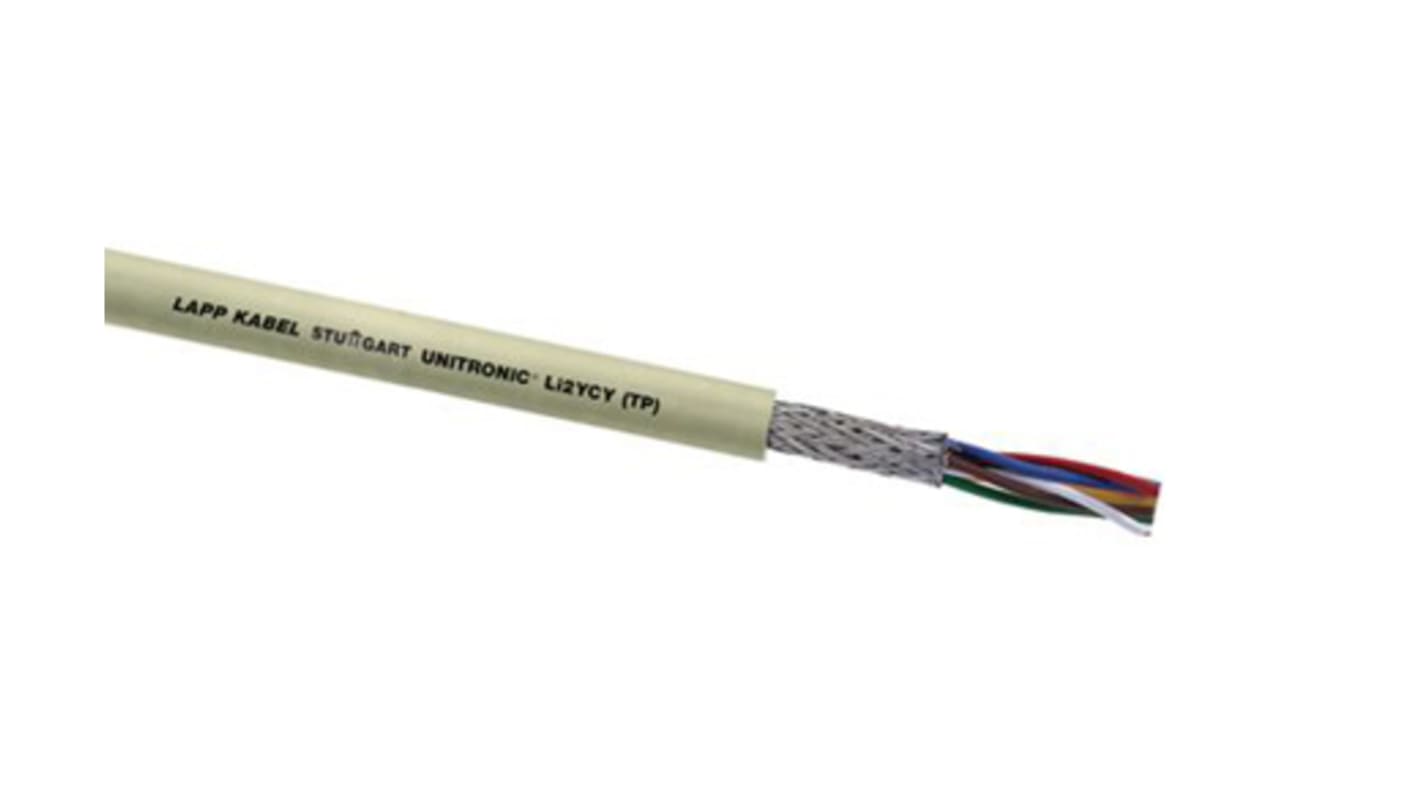

Lapp UNITRONIC Series Data Cable, 10 Pairs, 20 Cores, 0.22 mm², Screened, 24 AWG, 50m, Screened Shield, Li2YCY Cable
- RS Stock No.:
- 807-9032
- Mfr. Part No.:
- 0031324
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£255.94
(exc. VAT)
£307.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £255.94 | £5.119 |
*price indicative
- RS Stock No.:
- 807-9032
- Mfr. Part No.:
- 0031324
- Brand:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 10 | |
| Cross Sectional Area | 0.22 mm² | |
| Number of Cores | 20 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Shield Type | S/UTP | |
| CPR Certification | Eca | |
| Sheath Colour | Grey | |
| Cable Type | Li2YCY | |
| Outer Diameter | 10.4mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 100 Ω | |
| Series | UNITRONIC | |
| Fire Behaviour | Flame Retardant | |
| Shielded/Unshielded | Shielded | |
| Standards Met | IEC60332-1 | |
| Voltage Rating | 250 V | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 10 | ||
Cross Sectional Area 0.22 mm² | ||
Number of Cores 20 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type S/UTP | ||
CPR Certification Eca | ||
Sheath Colour Grey | ||
Cable Type Li2YCY | ||
Outer Diameter 10.4mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 100 Ω | ||
Series UNITRONIC | ||
Fire Behaviour Flame Retardant | ||
Shielded/Unshielded Shielded | ||
Standards Met IEC60332-1 | ||
Voltage Rating 250 V | ||
