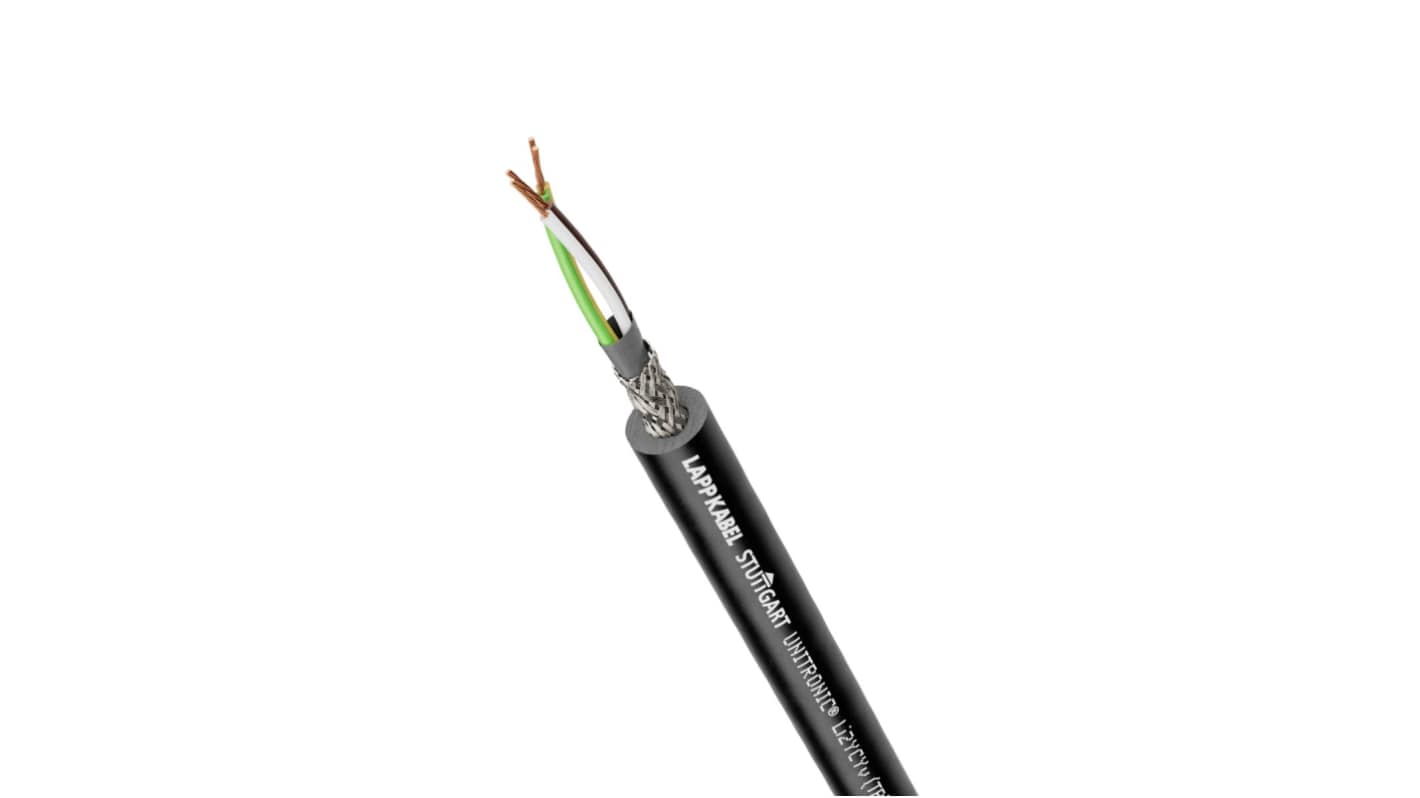

Lapp Unitronic Series Data Cable, 0.22 mm², Black Sheath Polyvinyl Chloride

View this category

Subtotal (1 reel of 100 metres)*

£100.53

(exc. VAT)

£120.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 2 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£100.53£1.005

*price indicative

RS Stock No.:
433-437
Mfr. Part No.:
0031350
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Product Type

Data Cable

Cross Sectional Area

0.22 mm²

Jacket Colour

Black

Jacket Material

Polyvinyl Chloride

Minimum Operating Temperature

-40°C

Conductor Type

Stranded

Maximum Operating Temperature

80°C

Standards/Approvals

VDE 0812, IEC 60332-1-2, EN 50575, EU-Directive 2011/65/EU (RoHS), EN 50525-1, EN 60332-1-2, EU-Directive 2014/35/EU, EU-Regulation no. 305/2011 (CPR), EN 13501-6, EN 50288-7

Voltage

25V

Series

Unitronic

Conductor Material

Bare Copper

Fire Behaviour

Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2

COO (Country of Origin):
DE
The Lapp Data Cable features low capacitance and is designed for wiring data systems with transmission rates up to 10 Mbit/s. It is qualified for serial interfaces RS422 and RS485 and can be used as a signal, control, and measuring cable, as well as for transmitting low, sensitive signals and high bit rates. The twisted pair design and screening provide protection against electromagnetic interference. These cables are intended for fixed installation in dry and damp interiors and occasional flexible use. They support solderless connections, such as insulation displacement technology and MAXI-TERMI-Point wiring.

PVC based insulation

VDE 0812 and EN 50288-7 standards applicable

RoHS compliant

Core is twisted to pairs
