Lapp UNITRONIC Series Data Cable, 10 Pairs, 20 Cores, 0.5 mm², Screened, 20 AWG, 50m, Screened Shield, Li2YCY Cable
- RS Stock No.:
- 807-9060
- Mfr. Part No.:
- 0031334
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£486.75
(exc. VAT)
£584.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £486.75 | £9.735 |
*price indicative
- RS Stock No.:
- 807-9060
- Mfr. Part No.:
- 0031334
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 10 | |
| Cross Sectional Area | 0.5 mm² | |
| Number of Cores | 20 | |
| American Wire Gauge | 20 AWG | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Shield Type | S/UTP | |
| CPR Certification | Eca | |
| Sheath Colour | Grey | |
| Cable Type | Li2YCY | |
| Outer Diameter | 14.8mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 100 Ω | |
| Shielded/Unshielded | Shielded | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | IEC60332-1 | |
| Minimum Operating Temperature | -5°C | |
| Series | UNITRONIC | |
| Maximum Operating Temperature | +70°C | |
| Voltage Rating | 250 V | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 10 | ||
Cross Sectional Area 0.5 mm² | ||
Number of Cores 20 | ||
American Wire Gauge 20 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type S/UTP | ||
CPR Certification Eca | ||
Sheath Colour Grey | ||
Cable Type Li2YCY | ||
Outer Diameter 14.8mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 100 Ω | ||
Shielded/Unshielded Shielded | ||
Fire Behaviour Flame Retardant | ||
Standards Met IEC60332-1 | ||
Minimum Operating Temperature -5°C | ||
Series UNITRONIC | ||
Maximum Operating Temperature +70°C | ||
Voltage Rating 250 V | ||
- COO (Country of Origin):
- DE

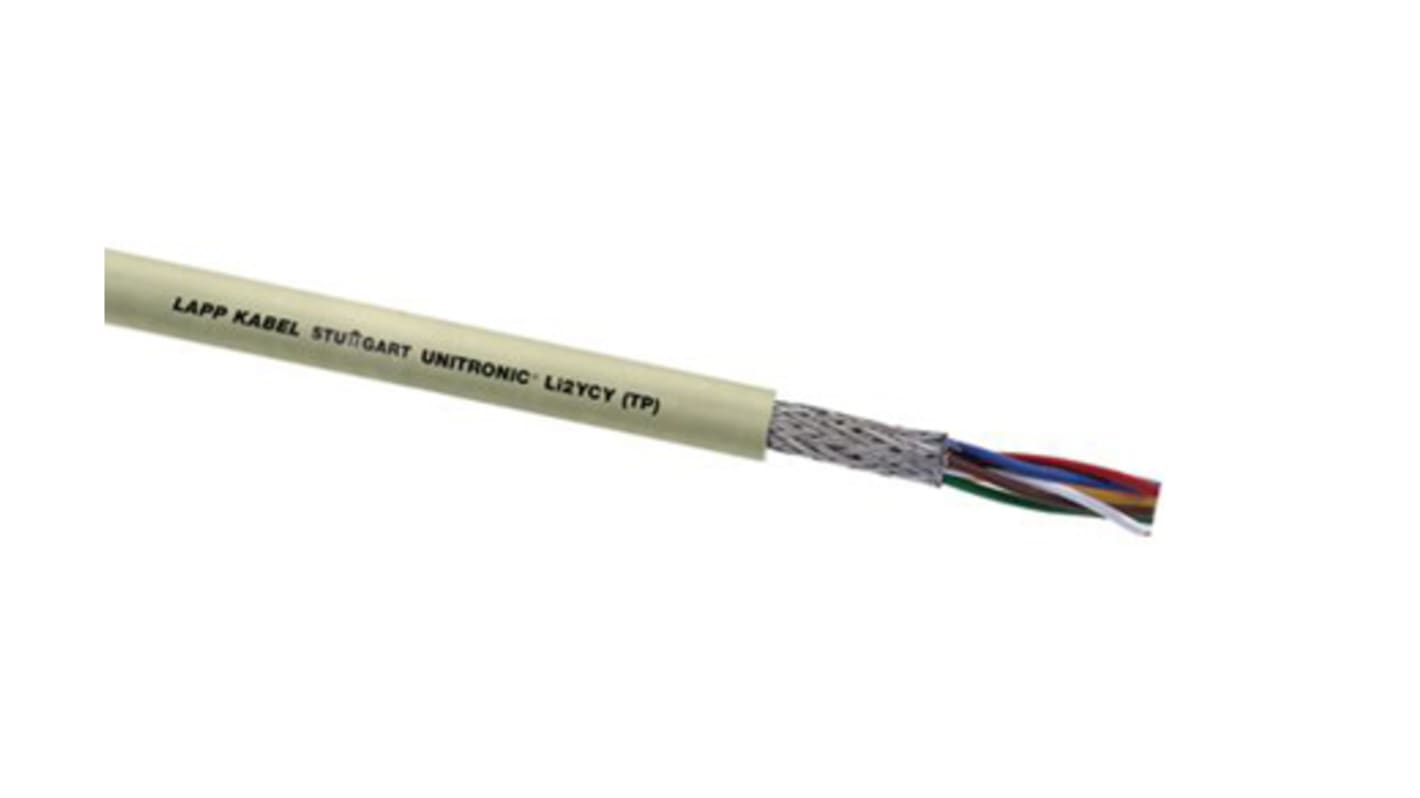

LAPP Data Cable, 100Ω Characteristic Impedance, 14.8mm Outer Diameter - UNITRONIC Li2YCY (TP) Series - 0031334
Send information seamlessly to its destination with this data cable from LAPP. It's made from 20 copper cores that are twisted in pairs to prevent crosstalk, so you can count on noise-free transmission. A narrow outer diameter of 14.8mm means this cord fits neatly into tight areas. When in a fixed position, it has a broad operating temperature range between -40°C and +80°C, making it ideal for use in harsh settings.
Features & Benefits
• Flame-retardant material limits the spread of fire
• Tinned copper braided screen stops EMI from disrupting performance
• Durable PVC sheath resists abrasion and corrosion for a long service life
• Supplied in reels of 50m so you have plenty of stock
• Tinned copper braided screen stops EMI from disrupting performance
• Durable PVC sheath resists abrasion and corrosion for a long service life
• Supplied in reels of 50m so you have plenty of stock
Applications
• Telecommunications
• Data acquisition
• Medical equipment
• Marine engineering
• Data acquisition
• Medical equipment
• Marine engineering
What's an Li2YCY cable used for?
Li2YCY cables are used for sending data. They typically have a low capacitance and are screened against EMI for dependable transfer.
