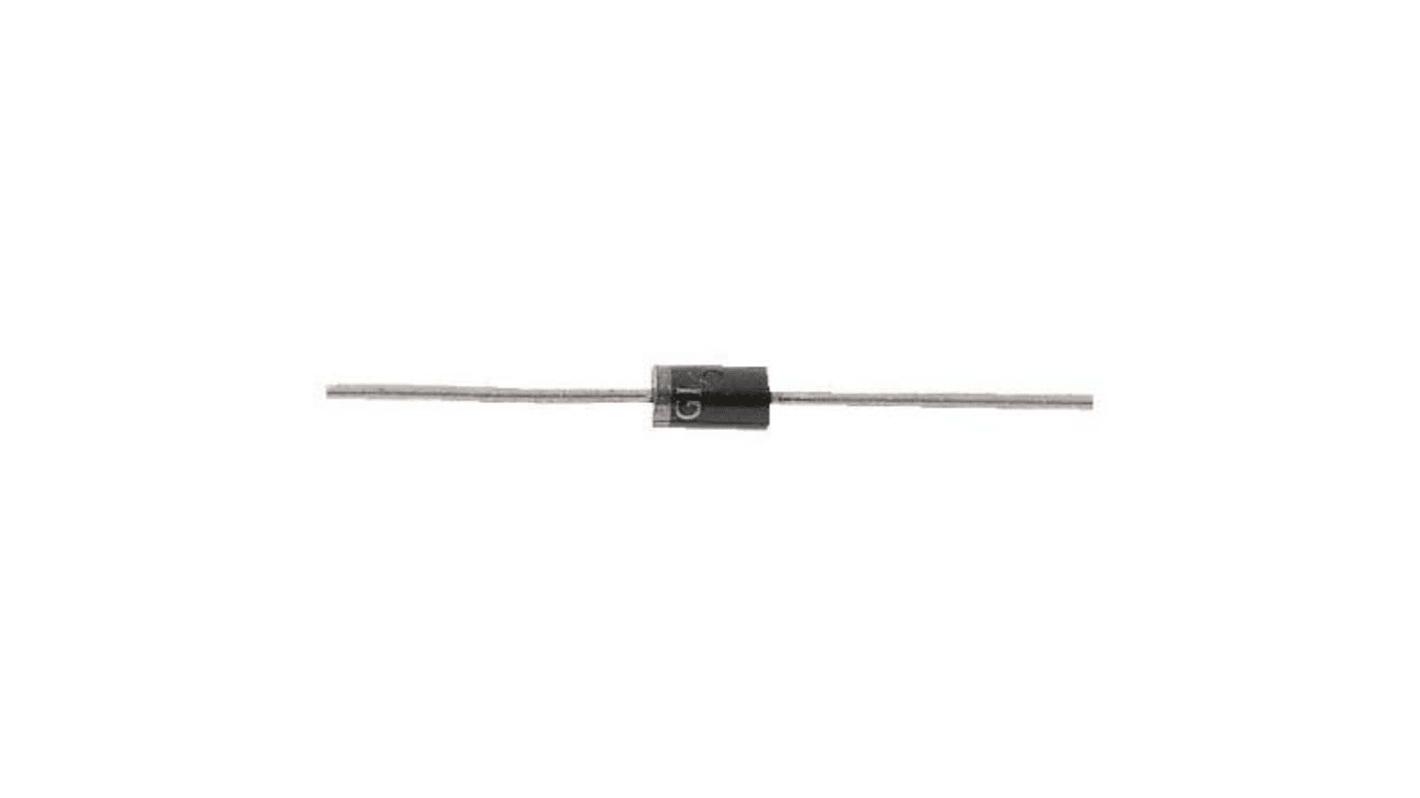

Vishay P6KE220CA-E3/54, Bi-Directional TVS Diode, 600W, 2-Pin DO-204AC

View all TVS Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
811-9994
Mfr. Part No.:
P6KE220CA-E3/54
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Direction Type

Bi-Directional

Diode Configuration

Single

Maximum Clamping Voltage

328V

Minimum Breakdown Voltage

209V

Mounting Type

Through Hole

Package Type

DO-204AC

Maximum Reverse Stand-off Voltage

185V

Pin Count

2

Peak Pulse Power Dissipation

600W

Maximum Peak Pulse Current

1.8A

Number of Elements per Chip

1

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+175 °C

Dimensions

3.6 (Dia.) x 7.6mm

Test Current

1mA

Length

7.6mm

Maximum Reverse Leakage Current

1µA

Diameter

3.6mm
