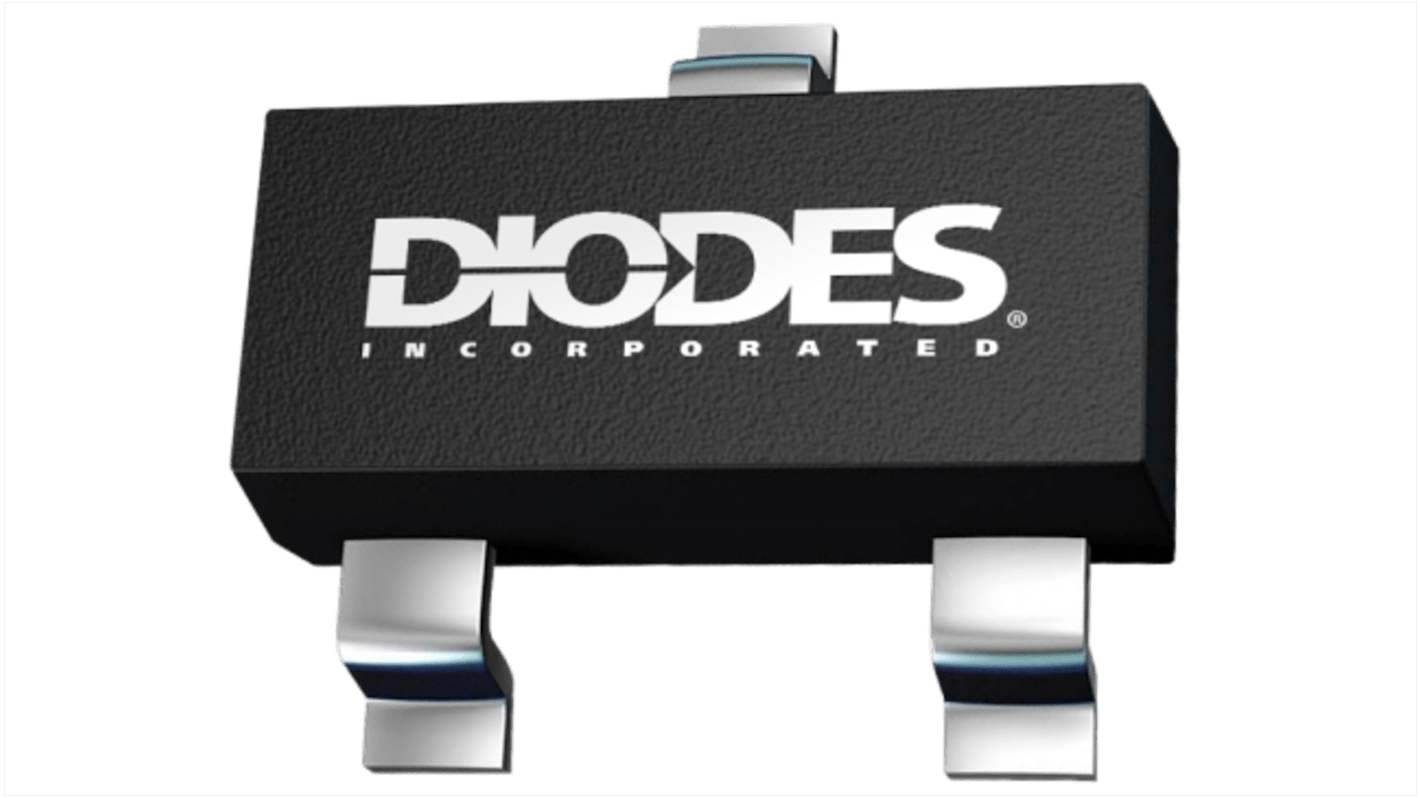

DiodesZetex DESD1FLEX2SOQ-7 2-Element ESD Protection Diode, 200 W, 3-Pin SOT-23
- RS Stock No.:
- 246-7480
- Mfr. Part No.:
- DESD1FLEX2SOQ-7
- Brand:
- DiodesZetex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£5.10
(exc. VAT)
£6.125
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.204 | £5.10 |
| 50 - 75 | £0.20 | £5.00 |
| 100 - 225 | £0.143 | £3.58 |
| 250 - 975 | £0.141 | £3.53 |
| 1000 + | £0.088 | £2.20 |
*price indicative
- RS Stock No.:
- 246-7480
- Mfr. Part No.:
- DESD1FLEX2SOQ-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | ESD Protection Diode | |
| Minimum Breakdown Voltage Vbr | 30.3V | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Maximum Reverse Stand-off Voltage Vwm | 24V | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation Pppm | 200W | |
| Clamping Voltage VC | 40V | |
| Maximum Peak Pulse Current Ippm | 3A | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | 150°C | |
| Length | 1.3mm | |
| Height | 1.03mm | |
| Width | 2.9mm | |
| Standards/Approvals | EC 61000-4-2, ISO, RoHS, UL | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 50μA | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type ESD Protection Diode | ||
Minimum Breakdown Voltage Vbr 30.3V | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Maximum Reverse Stand-off Voltage Vwm 24V | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation Pppm 200W | ||
Clamping Voltage VC 40V | ||
Maximum Peak Pulse Current Ippm 3A | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature 150°C | ||
Length 1.3mm | ||
Height 1.03mm | ||
Width 2.9mm | ||
Standards/Approvals EC 61000-4-2, ISO, RoHS, UL | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 50μA | ||
The DiodesZetex makes a next generation ESD and surge protection device packaged in a small footprint surface mount package. It is designed to protect two automotive Flex Ray bus lines from Electro-static discharge and other transients. It is compatible with Flex Ray bus protection and applications like Industrial Control Network.
200W peak power Dissipation per line Provides ESD protection for Air ±30kV, Contact ±30kV 2 channels of ESD protection Low channel input capacitance
