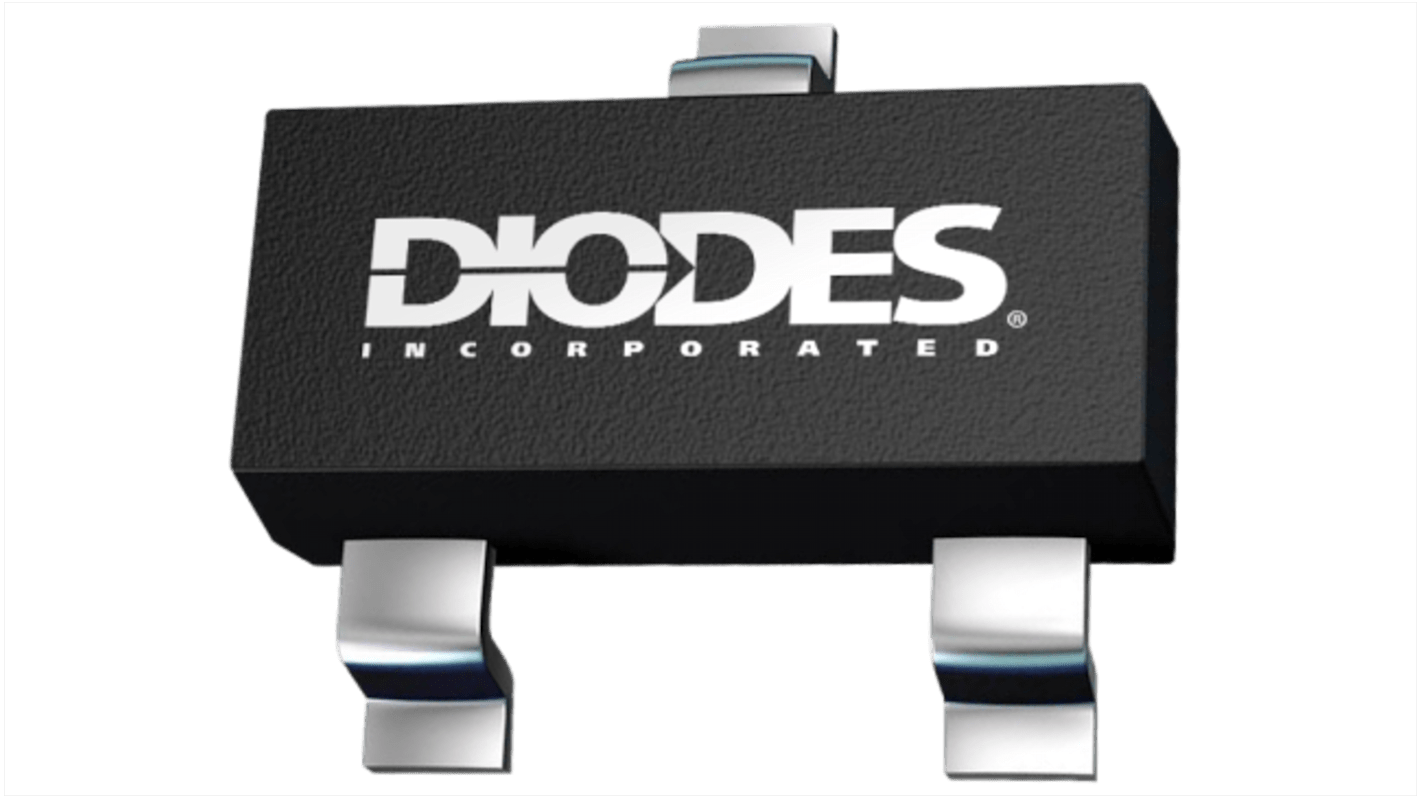

DiodesZetex 2-Element ESD Protection Diode, 330 W, 3-Pin SOT-23

View all TVS Diodes

Subtotal (1 reel of 3000 units)*

£195.00

(exc. VAT)

£234.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.065£195.00

*price indicative

RS Stock No.:
246-6743
Mfr. Part No.:
DESD3512SO-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

ESD Protection Diode

Minimum Breakdown Voltage Vbr

13.6V

Mount Type

Surface

Package Type

SOT-23

Pin Count

3

Peak Pulse Power Dissipation Pppm

330W

Maximum Peak Pulse Current Ippm

11A

Minimum Operating Temperature

-55°C

ESD Protection

Yes

Number of Elements per Chip

2

Maximum Operating Temperature

150°C

Height

0.98mm

Standards/Approvals

ISO, UL, EC 61000-4-2, RoHS

Length

2.9mm

Width

1.3 mm

Maximum Reverse Leakage Current

500nA

Automotive Standard

AEC-Q101

The DiodesZetex makes a next generation ESD and surge protection device packaged in a small footprint surface mount package. It is designed to protect two data lines of the Controller Area Network (CAN) in an automotive application. It is ideal for CAN Bus protection and Industrial Control Network.

240W & 330W peak power dissipation per Line (8/20μs Waveform) 2 Channels of ESD protection Low channel input capacitance
