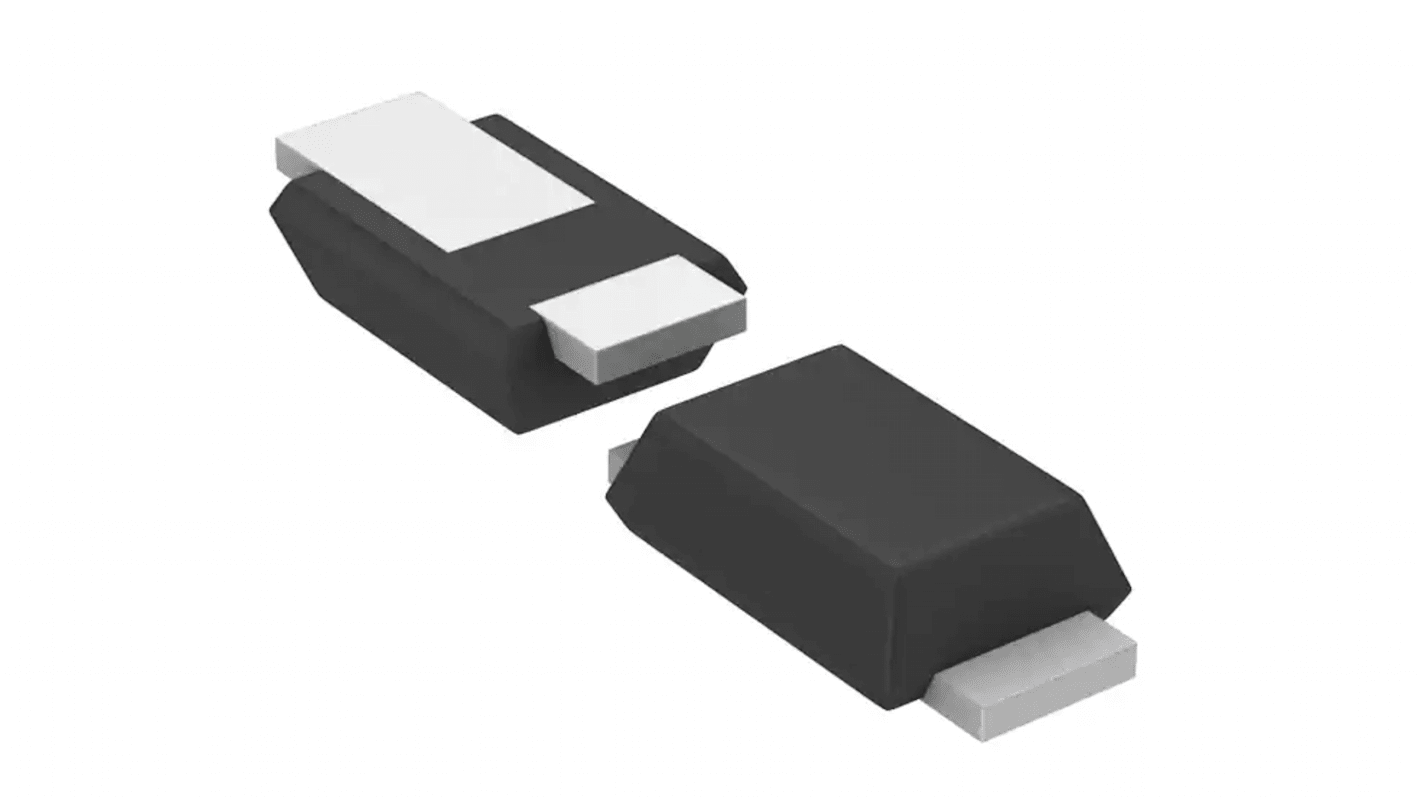

ROHM VS20VUA1VWMTR Uni-Directional TVS Diode, 1 W PMDE
- RS Stock No.:
- 246-4029
- Mfr. Part No.:
- VS20VUA1VWMTR
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£3.225
(exc. VAT)
£3.875
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 25 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.129 | £3.23 |
| 50 - 75 | £0.126 | £3.15 |
| 100 - 225 | £0.111 | £2.78 |
| 250 - 975 | £0.109 | £2.73 |
| 1000 + | £0.078 | £1.95 |
*price indicative
- RS Stock No.:
- 246-4029
- Mfr. Part No.:
- VS20VUA1VWMTR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Single | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 22V | |
| Mount Type | Surface, Through Hole | |
| Package Type | PMDE | |
| Maximum Reverse Stand-off Voltage Vwm | 20V | |
| Peak Pulse Power Dissipation Pppm | 1W | |
| Clamping Voltage VC | 32.4V | |
| Maximum Peak Pulse Current Ippm | 6.2A | |
| Minimum Operating Temperature | -55°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Width | 1.4mm | |
| Length | 2.3mm | |
| Height | 1mm | |
| Standards/Approvals | IEC 61000-4-2, RoHS | |
| Series | VS | |
| Maximum Reverse Leakage Current | 100nA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Direction Type Uni-Directional | ||
Diode Configuration Single | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 22V | ||
Mount Type Surface, Through Hole | ||
Package Type PMDE | ||
Maximum Reverse Stand-off Voltage Vwm 20V | ||
Peak Pulse Power Dissipation Pppm 1W | ||
Clamping Voltage VC 32.4V | ||
Maximum Peak Pulse Current Ippm 6.2A | ||
Minimum Operating Temperature -55°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Width 1.4mm | ||
Length 2.3mm | ||
Height 1mm | ||
Standards/Approvals IEC 61000-4-2, RoHS | ||
Series VS | ||
Maximum Reverse Leakage Current 100nA | ||
Automotive Standard No | ||
The ROHM VS series is transient voltage suppressor which are available in PMDE package and have silicon epitaxial planar structure and can be used in surge protection and voltage regulation applications.
High reliability
Small mold type
