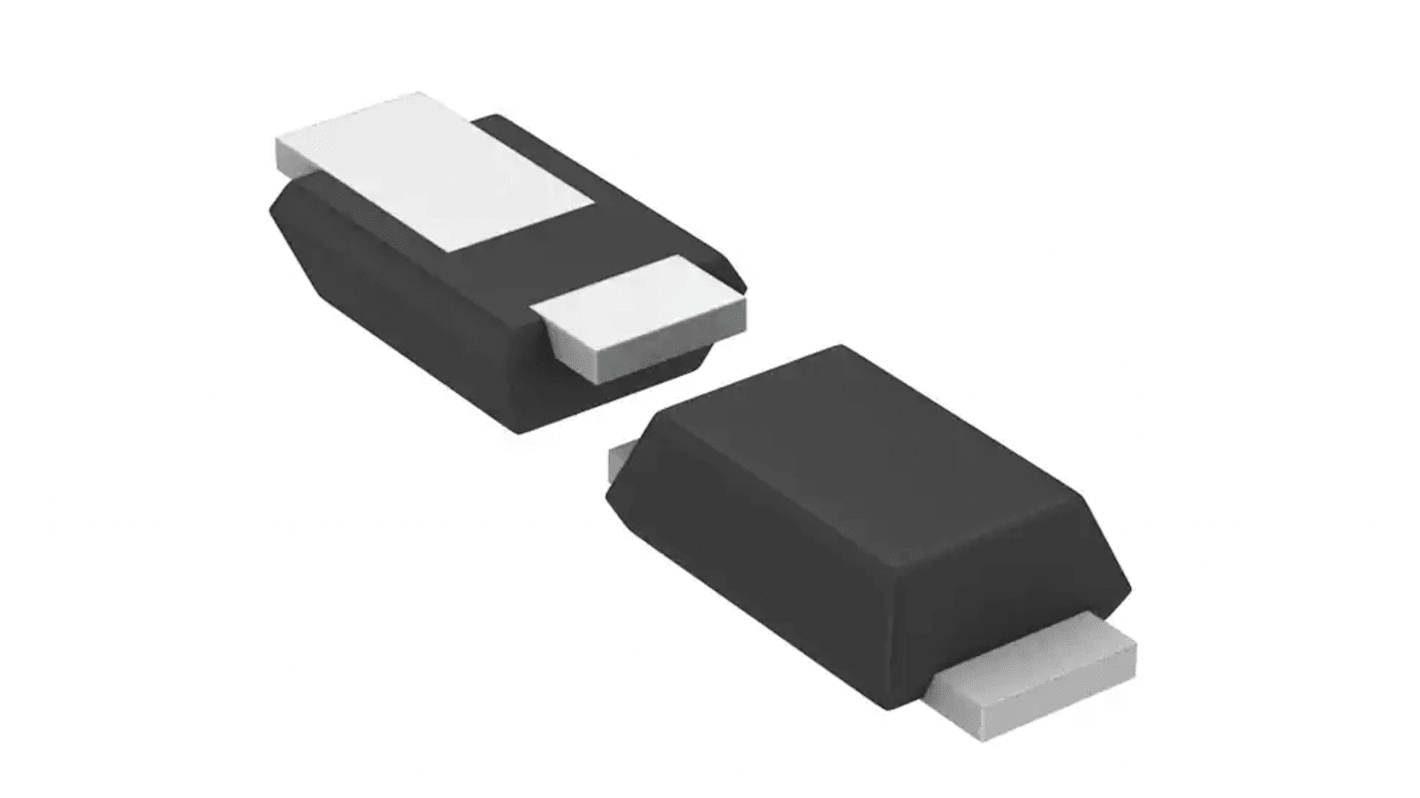

ROHM VS15VUA1VWMTFTR Uni-Directional TVS Diode, 1 W PMDE

View all TVS Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
246-4009
Mfr. Part No.:
VS15VUA1VWMTFTR
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Diode Configuration

Single

Direction Type

Uni-Directional

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

16.2V

Mount Type

Through Hole, Surface

Package Type

PMDE

Maximum Reverse Stand-off Voltage Vwm

15V

Peak Pulse Power Dissipation Pppm

1W

Maximum Peak Pulse Current Ippm

8.2A

Clamping Voltage VC

24.4V

ESD Protection

Yes

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS, IEC 61000-4-2

Series

VS

Height

1mm

Length

2.3mm

Maximum Reverse Leakage Current

0.1μA

Automotive Standard

AEC-Q101

The ROHM VS series is transient voltage suppressor which are available in PMDE package and have silicon epitaxial planar structure and can be used in surge protection and voltage regulation applications.

High reliability

Small mold type
