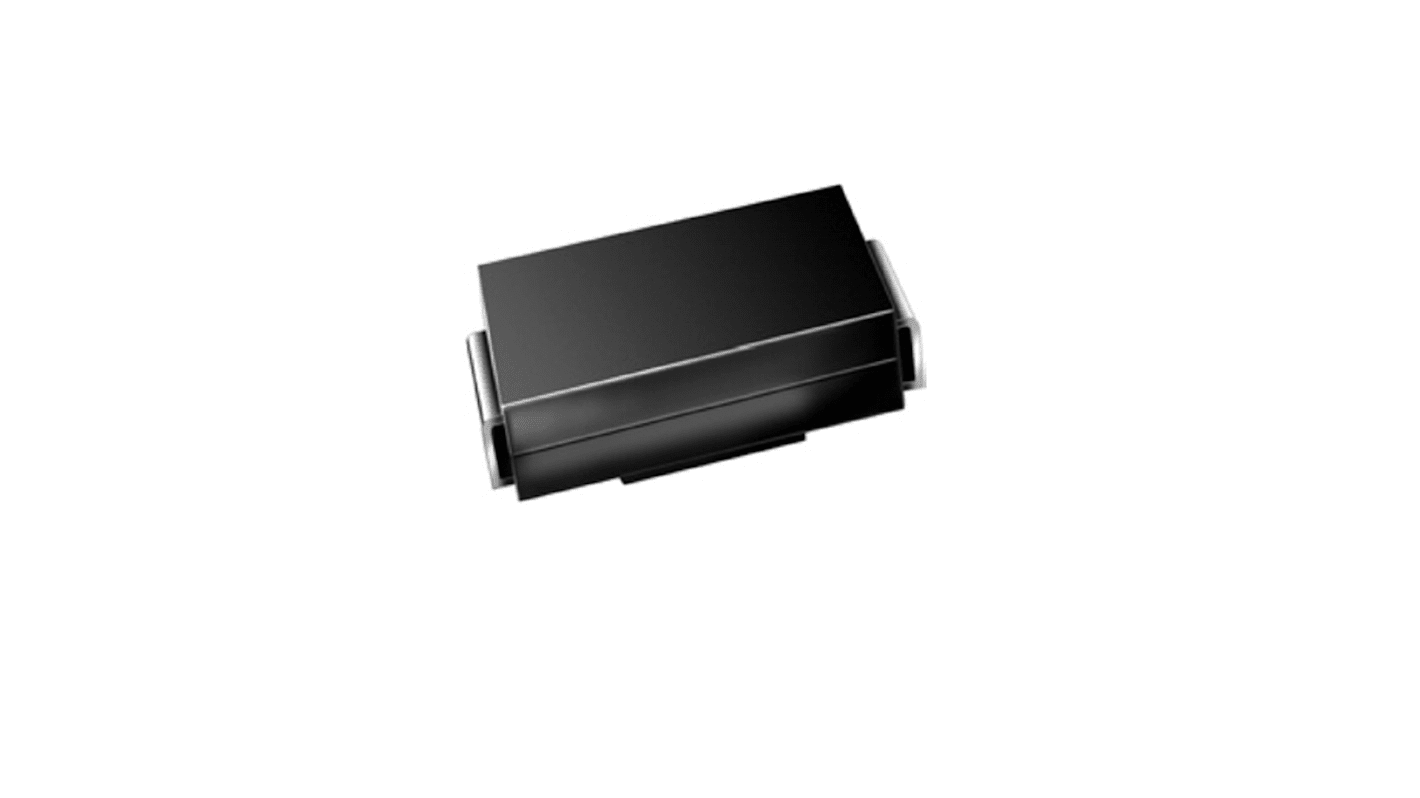

Vishay Uni-Directional, Bi-Directional TVS Diode, 400 W SMA (DO-214AC)
- RS Stock No.:
- 244-8938
- Mfr. Part No.:
- P4SMA75A-M3/61
- Brand:
- Vishay
Subtotal (1 reel of 1800 units)*
£113.40
(exc. VAT)
£136.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1800 + | £0.063 | £113.40 |
*price indicative
- RS Stock No.:
- 244-8938
- Mfr. Part No.:
- P4SMA75A-M3/61
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | TVS Diode | |
| Diode Configuration | Single | |
| Direction Type | Uni-Directional, Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 71.3V | |
| Mount Type | Surface | |
| Package Type | SMA (DO-214AC) | |
| Maximum Reverse Stand-off Voltage Vwm | 459V | |
| Peak Pulse Power Dissipation Pppm | 400W | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 104V | |
| Maximum Peak Pulse Current Ippm | 3.9A | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 175°C | |
| Series | P4SMA | |
| Standards/Approvals | J-STD-002, RoHS, JESD 22-B102, UL 94 | |
| Maximum Reverse Leakage Current | 1μA | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type TVS Diode | ||
Diode Configuration Single | ||
Direction Type Uni-Directional, Bi-Directional | ||
Minimum Breakdown Voltage Vbr 71.3V | ||
Mount Type Surface | ||
Package Type SMA (DO-214AC) | ||
Maximum Reverse Stand-off Voltage Vwm 459V | ||
Peak Pulse Power Dissipation Pppm 400W | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 104V | ||
Maximum Peak Pulse Current Ippm 3.9A | ||
ESD Protection Yes | ||
Maximum Operating Temperature 175°C | ||
Series P4SMA | ||
Standards/Approvals J-STD-002, RoHS, JESD 22-B102, UL 94 | ||
Maximum Reverse Leakage Current 1μA | ||
Automotive Standard AEC-Q101 | ||
The Vishay's surface mount TransZorb transient voltage suppressors use glass passivated chip junction low profile package. This voltage suppressors used as protection against voltage transients in sensitive electronics.
Ideal for automated placement
Available in unidirectional and bidirectional
Excellent clamping capability
Very fast response time
Low incremental surge resistance
AEC-Q101 qualified
