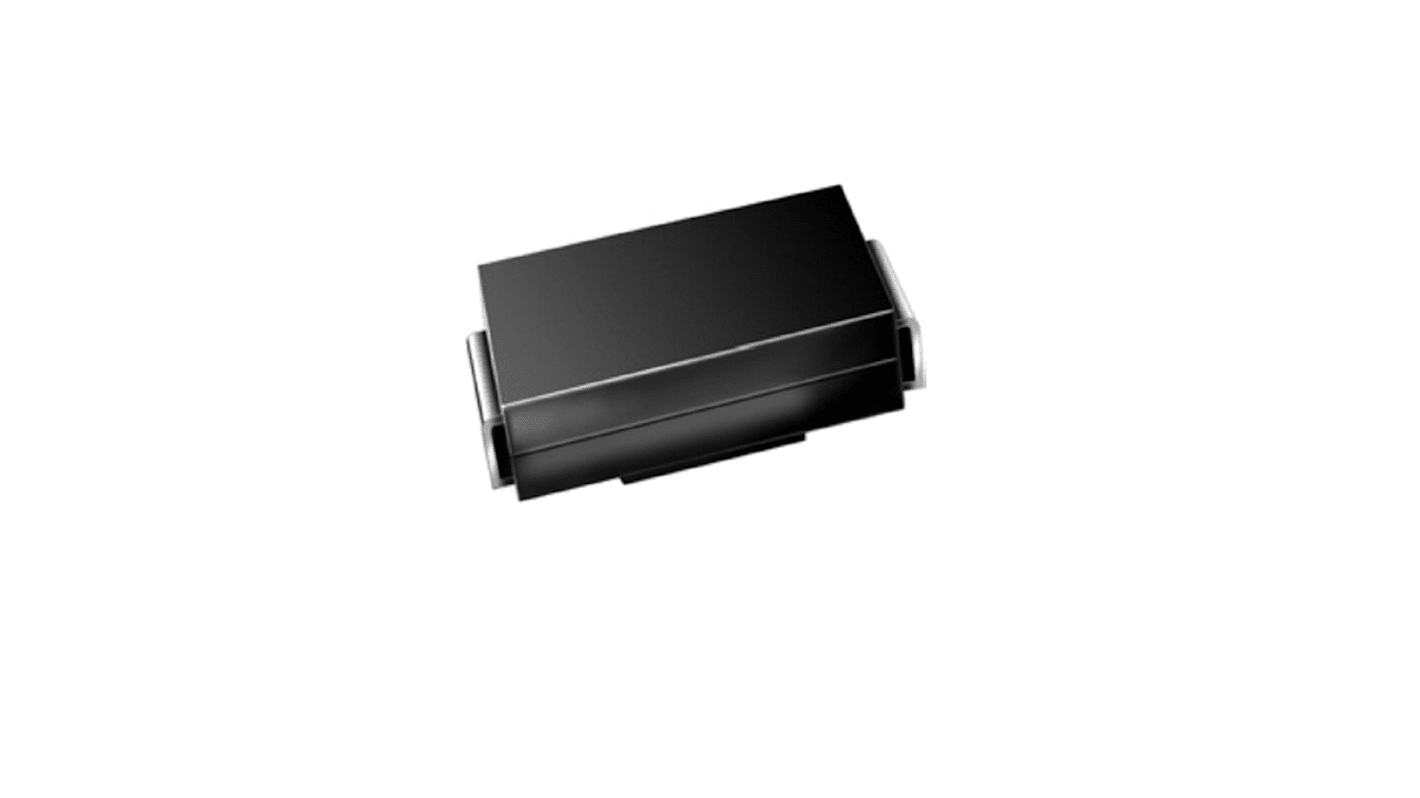

Vishay Uni-Directional, Bi-Directional TVS Diode, 400 W SMA (DO-214AC)
- RS Stock No.:
- 244-8936
- Mfr. Part No.:
- P4SMA22CA-M3/61
- Brand:
- Vishay
Subtotal (1 reel of 1800 units)*
£140.40
(exc. VAT)
£169.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9,000 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1800 + | £0.078 | £140.40 |
*price indicative
- RS Stock No.:
- 244-8936
- Mfr. Part No.:
- P4SMA22CA-M3/61
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Direction Type | Uni-Directional, Bi-Directional | |
| Product Type | TVS Diode | |
| Diode Configuration | Bipolar | |
| Minimum Breakdown Voltage Vbr | 20.9V | |
| Mount Type | Surface | |
| Package Type | SMA (DO-214AC) | |
| Maximum Reverse Stand-off Voltage Vwm | 185V | |
| Peak Pulse Power Dissipation Pppm | 400W | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Test Current It | 1mA | |
| Clamping Voltage VC | 30.6V | |
| Maximum Peak Pulse Current Ippm | 13.1A | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | JESD 22-B102, RoHS, J-STD-002, UL 94 | |
| Series | P4SMA | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 1μA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Direction Type Uni-Directional, Bi-Directional | ||
Product Type TVS Diode | ||
Diode Configuration Bipolar | ||
Minimum Breakdown Voltage Vbr 20.9V | ||
Mount Type Surface | ||
Package Type SMA (DO-214AC) | ||
Maximum Reverse Stand-off Voltage Vwm 185V | ||
Peak Pulse Power Dissipation Pppm 400W | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Test Current It 1mA | ||
Clamping Voltage VC 30.6V | ||
Maximum Peak Pulse Current Ippm 13.1A | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals JESD 22-B102, RoHS, J-STD-002, UL 94 | ||
Series P4SMA | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 1μA | ||
The Vishay's surface mount TransZorb transient voltage suppressors use glass passivated chip junction low profile package. This voltage suppressors used as protection against voltage transients in sensitive electronics.
Ideal for automated placement
Available in unidirectional and bidirectional
Excellent clamping capability
Very fast response time
Low incremental surge resistance
AEC-Q101 qualified
