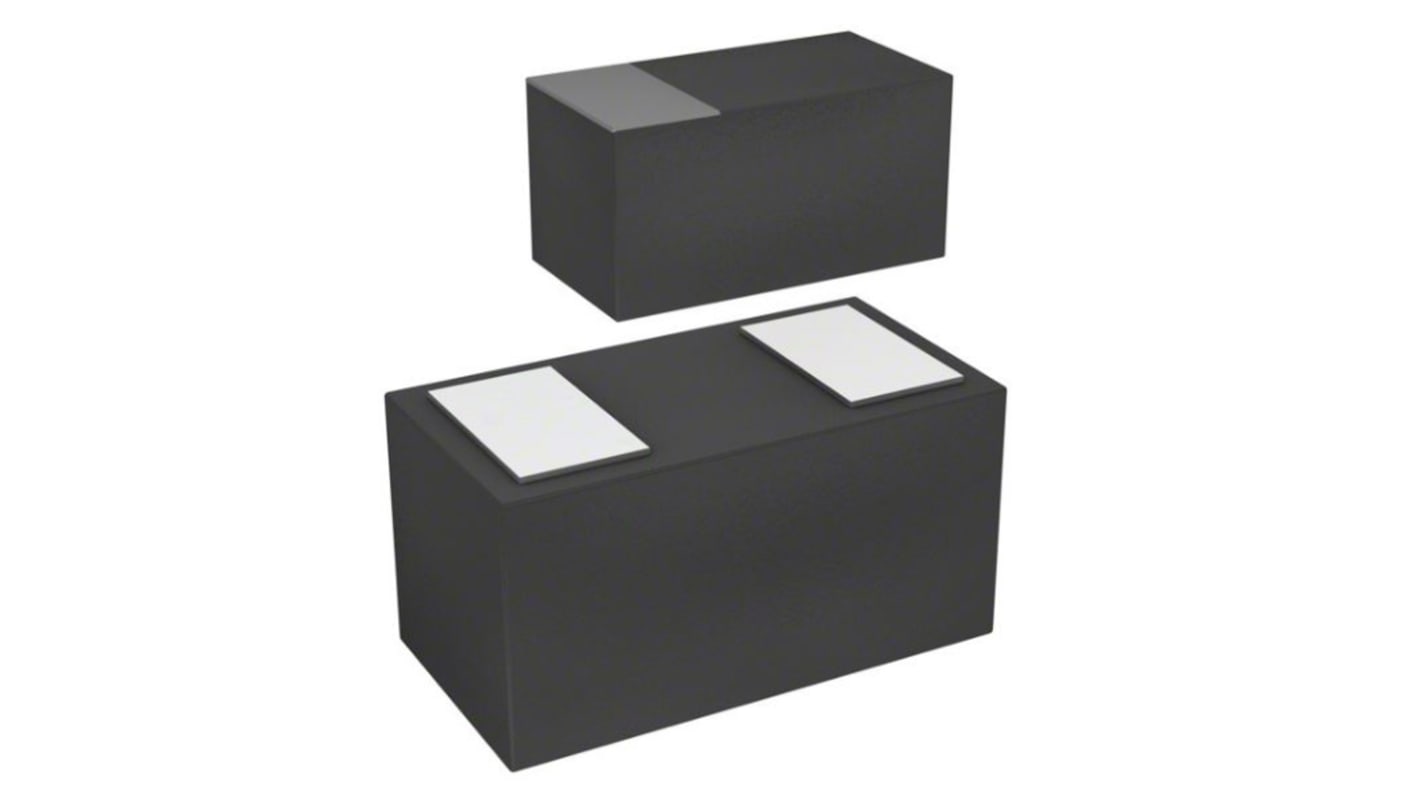

STMicroelectronics Bi-Directional TVS Diode, 2-Pin ST-0201
- RS Stock No.:
- 239-6269
- Mfr. Part No.:
- ESDALC6V1-1BU2
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 239-6269
- Mfr. Part No.:
- ESDALC6V1-1BU2
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Direction Type | Bi-Directional | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 6.1V | |
| Mount Type | Surface | |
| Package Type | ST-0201 | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Peak Pulse Current Ippm | 1.5A | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.35mm | |
| Length | 0.65mm | |
| Width | 0.33mm | |
| Series | ESDALC6V1-1BU2 | |
| Standards/Approvals | RoHS, IEC | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Direction Type Bi-Directional | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 6.1V | ||
Mount Type Surface | ||
Package Type ST-0201 | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Peak Pulse Current Ippm 1.5A | ||
Maximum Operating Temperature 150°C | ||
Height 0.35mm | ||
Length 0.65mm | ||
Width 0.33mm | ||
Series ESDALC6V1-1BU2 | ||
Standards/Approvals RoHS, IEC | ||
Automotive Standard AEC-Q101 | ||
The STMicroelectronics Diode is a low capacitance bidirectional single line TVS diode designed to protect data lines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required.
Breakdown voltage VBR of 6.1 V min.
Bidirectional device
Multiple ESD strike sustainability
Very low diode capacitance 5 pF typical at 0 V
Low leakage current
0201 SMD package size compatible
Ultra small PCB area of 0.18 mm2
RoHS compliant
