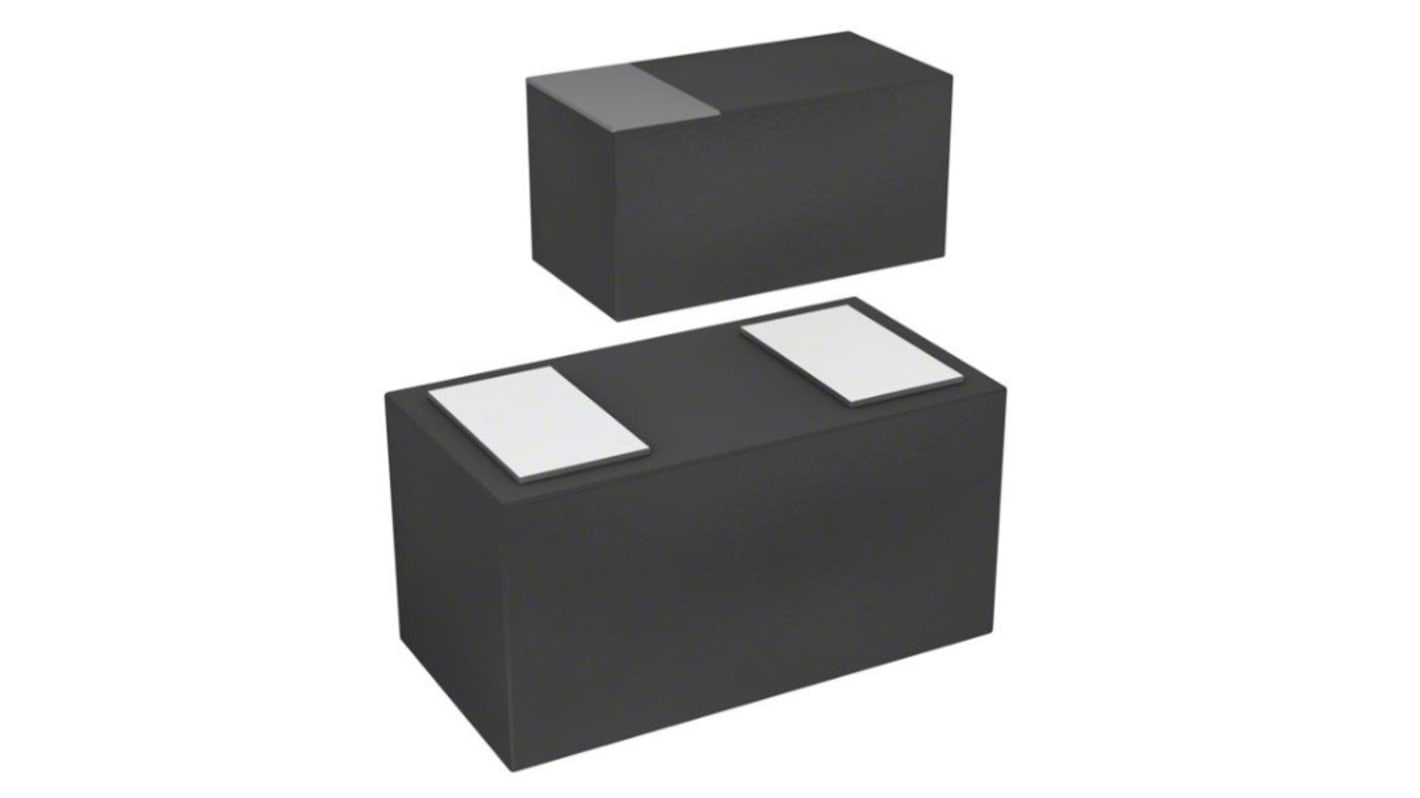

STMicroelectronics Uni-Directional TVS Diode, 2-Pin ST-0201

View all TVS Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
239-6251
Mfr. Part No.:
ESD051-1F4
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

TVS Diode

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

5.8V

Mount Type

Surface

Package Type

ST-0201

Pin Count

2

Minimum Operating Temperature

-55°C

ESD Protection

Yes

Clamping Voltage VC

9V

Maximum Operating Temperature

150°C

Height

0.3mm

Length

0.6mm

Series

ESD051-1F4

Standards/Approvals

IEC, RoHS

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

100nA

The STMicroelectronics OP-AMP is a low clamping unidirectional single line TVS diode designed to protect the power line against EOS and ESD transients. The device is ideal for applications where board space saving is required.

Low clamping voltage of 3 V / +9 V IEC 61000-4-2 contact discharge at 30 ns

Unidirectional diode

Low leakage current

kV air discharge & ±30 kV contact discharge
