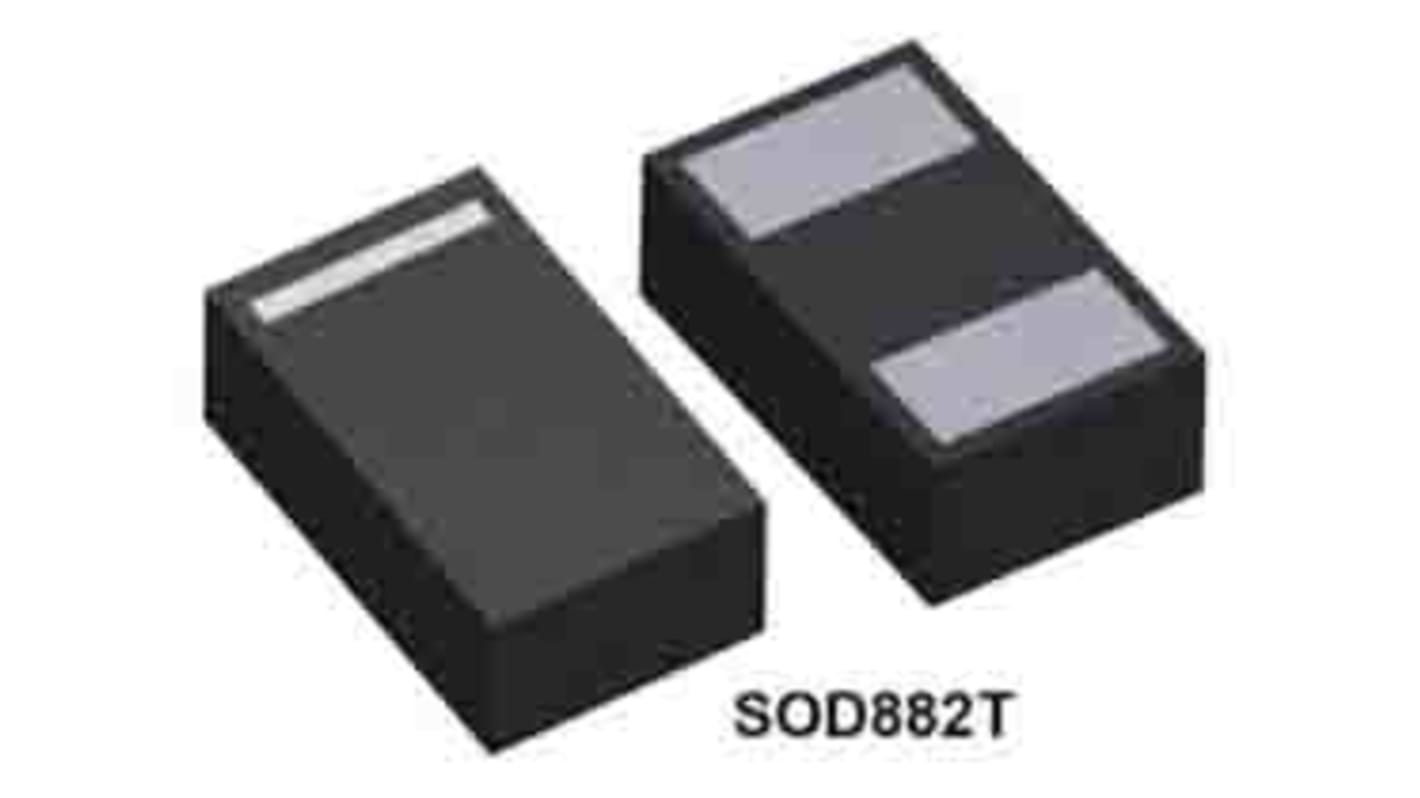

STMicroelectronics 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin SOD-882
- RS Stock No.:
- 213-3373
- Mfr. Part No.:
- ESDA17P20-1F2
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 213-3373
- Mfr. Part No.:
- ESDA17P20-1F2
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | TVS Diode | |
| Direction Type | Uni-Directional | |
| Diode Configuration | 2x Common Cathode Pair | |
| Minimum Breakdown Voltage Vbr | 15.6V | |
| Mount Type | Through Hole | |
| Package Type | SOD-882 | |
| Maximum Reverse Stand-off Voltage Vwm | 15V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 600W | |
| ESD Protection | Yes | |
| Clamping Voltage VC | 23V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Peak Pulse Current Ippm | 25A | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 1.03mm | |
| Height | 0.37mm | |
| Series | ESDA17 | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 80nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type TVS Diode | ||
Direction Type Uni-Directional | ||
Diode Configuration 2x Common Cathode Pair | ||
Minimum Breakdown Voltage Vbr 15.6V | ||
Mount Type Through Hole | ||
Package Type SOD-882 | ||
Maximum Reverse Stand-off Voltage Vwm 15V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 600W | ||
ESD Protection Yes | ||
Clamping Voltage VC 23V | ||
Minimum Operating Temperature -55°C | ||
Maximum Peak Pulse Current Ippm 25A | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 1.03mm | ||
Height 0.37mm | ||
Series ESDA17 | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 80nA | ||
The STMicroelectronics ESD series is a unidirectional single line TVS diode designed to protect the power line against EOS and ESD transients. The device is ideal for applications where board space saving is required.
Peak pulse power: 600 W (8/20 μs)
Stand-off voltage: 15 V
Unidirectional type
Low leakage current: 80 nA at 25 °C
