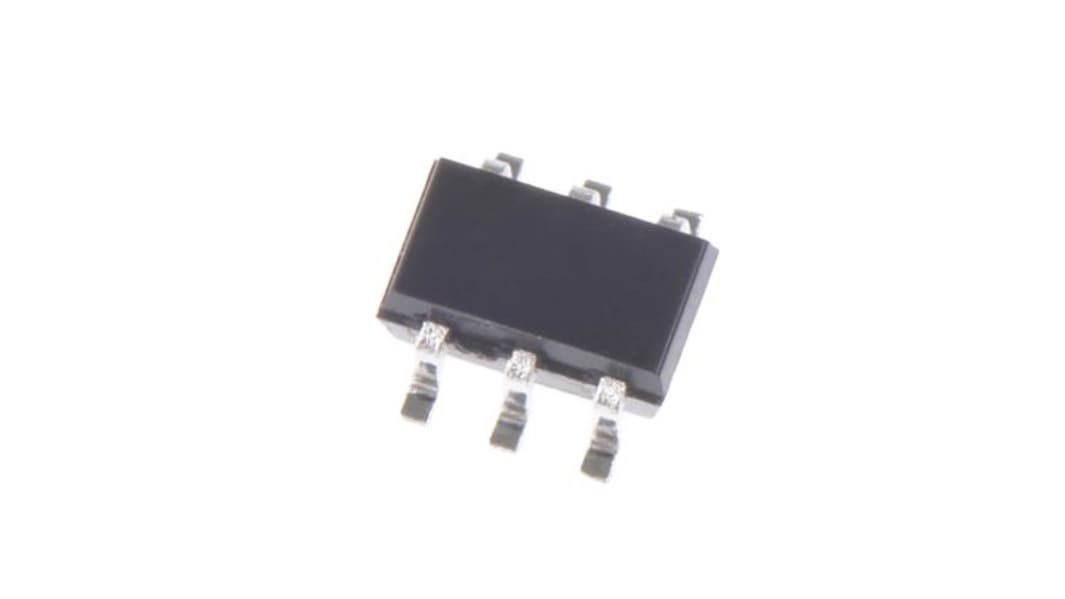

onsemi SMF05CT2G, Quint-Element Uni-Directional ESD Protection Array, 100W, 6-Pin SC-88
- RS Stock No.:
- 186-9897
- Mfr. Part No.:
- SMF05CT2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£4.075
(exc. VAT)
£4.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,875 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.163 | £4.08 |
| 100 - 225 | £0.14 | £3.50 |
| 250 - 475 | £0.122 | £3.05 |
| 500 - 975 | £0.107 | £2.68 |
| 1000 + | £0.097 | £2.43 |
*price indicative
- RS Stock No.:
- 186-9897
- Mfr. Part No.:
- SMF05CT2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Array | |
| Direction Type | Uni-Directional | |
| Maximum Clamping Voltage | 12.5V | |
| Minimum Breakdown Voltage | 6.2V | |
| Mounting Type | Surface Mount | |
| Package Type | SC-88 | |
| Pin Count | 6 | |
| Peak Pulse Power Dissipation | 100W | |
| Maximum Peak Pulse Current | 8A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 5 | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 2.2 x 1.35 x 1mm | |
| Maximum Operating Temperature | +125 °C | |
| Height | 1mm | |
| Working Voltage | 5V | |
| Maximum Reverse Leakage Current | 5µA | |
| Automotive Standard | AEC-Q101 | |
| Capacitance | 130pF | |
| Length | 2.2mm | |
| Width | 1.35mm | |
| Test Current | 1mA | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Array | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 12.5V | ||
Minimum Breakdown Voltage 6.2V | ||
Mounting Type Surface Mount | ||
Package Type SC-88 | ||
Pin Count 6 | ||
Peak Pulse Power Dissipation 100W | ||
Maximum Peak Pulse Current 8A | ||
ESD Protection Yes | ||
Number of Elements per Chip 5 | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 2.2 x 1.35 x 1mm | ||
Maximum Operating Temperature +125 °C | ||
Height 1mm | ||
Working Voltage 5V | ||
Maximum Reverse Leakage Current 5µA | ||
Automotive Standard AEC-Q101 | ||
Capacitance 130pF | ||
Length 2.2mm | ||
Width 1.35mm | ||
Test Current 1mA | ||
This 5-line surge suppressor array is designed for application requiring ESD and surge protection capability. It is intended for use in over-transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common cathode design which protects five independent lines in a single SC-88 package.
Protects up to 5 Lines in a Single SC-88 Package
Peak Power Dissipation - 100W (8x20 μ Waveform)
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Applications
Hand Held Portable Applications
Networking and Telecom
Automotive Electronics
Serial and Parallel Ports
Notebooks, Desktops, and Servers
Peak Power Dissipation - 100W (8x20 μ Waveform)
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Applications
Hand Held Portable Applications
Networking and Telecom
Automotive Electronics
Serial and Parallel Ports
Notebooks, Desktops, and Servers
