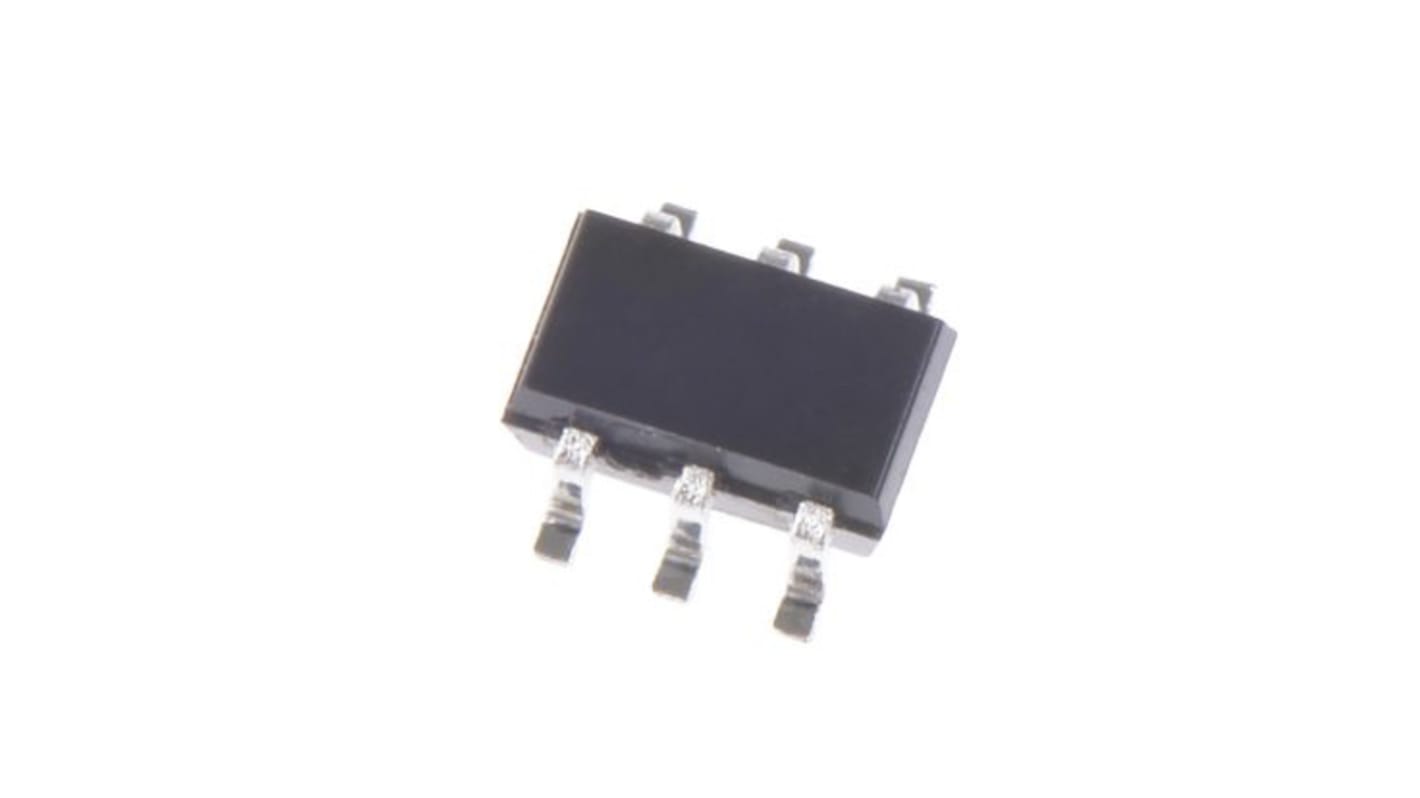

onsemi SMF05CT2G, Quint-Element Uni-Directional ESD Protection Array, 100W, 6-Pin SC-88
- RS Stock No.:
- 186-9133
- Mfr. Part No.:
- SMF05CT2G
- Brand:
- onsemi
2850 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.083
(exc. VAT)
£0.10
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.083 | £249.00 |
*price indicative
- RS Stock No.:
- 186-9133
- Mfr. Part No.:
- SMF05CT2G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
This 5-line surge suppressor array is designed for application requiring ESD and surge protection capability. It is intended for use in over-transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common cathode design which protects five independent lines in a single SC-88 package.
Protects up to 5 Lines in a Single SC-88 Package
Peak Power Dissipation - 100W (8x20 μ Waveform)
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Applications
Hand Held Portable Applications
Networking and Telecom
Automotive Electronics
Serial and Parallel Ports
Notebooks, Desktops, and Servers
Peak Power Dissipation - 100W (8x20 μ Waveform)
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Applications
Hand Held Portable Applications
Networking and Telecom
Automotive Electronics
Serial and Parallel Ports
Notebooks, Desktops, and Servers
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 12.5V |
| Minimum Breakdown Voltage | 6.2V |
| Mounting Type | Surface Mount |
| Package Type | SC-88 |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.2 x 1.35 x 1mm |
| Maximum Operating Temperature | +125 °C |
| Length | 2.2mm |
| Capacitance | 130pF |
| Height | 1mm |
| Automotive Standard | AEC-Q101 |
| Working Voltage | 5V |
| Maximum Reverse Leakage Current | 5µA |
| Test Current | 1mA |
| Width | 1.35mm |
