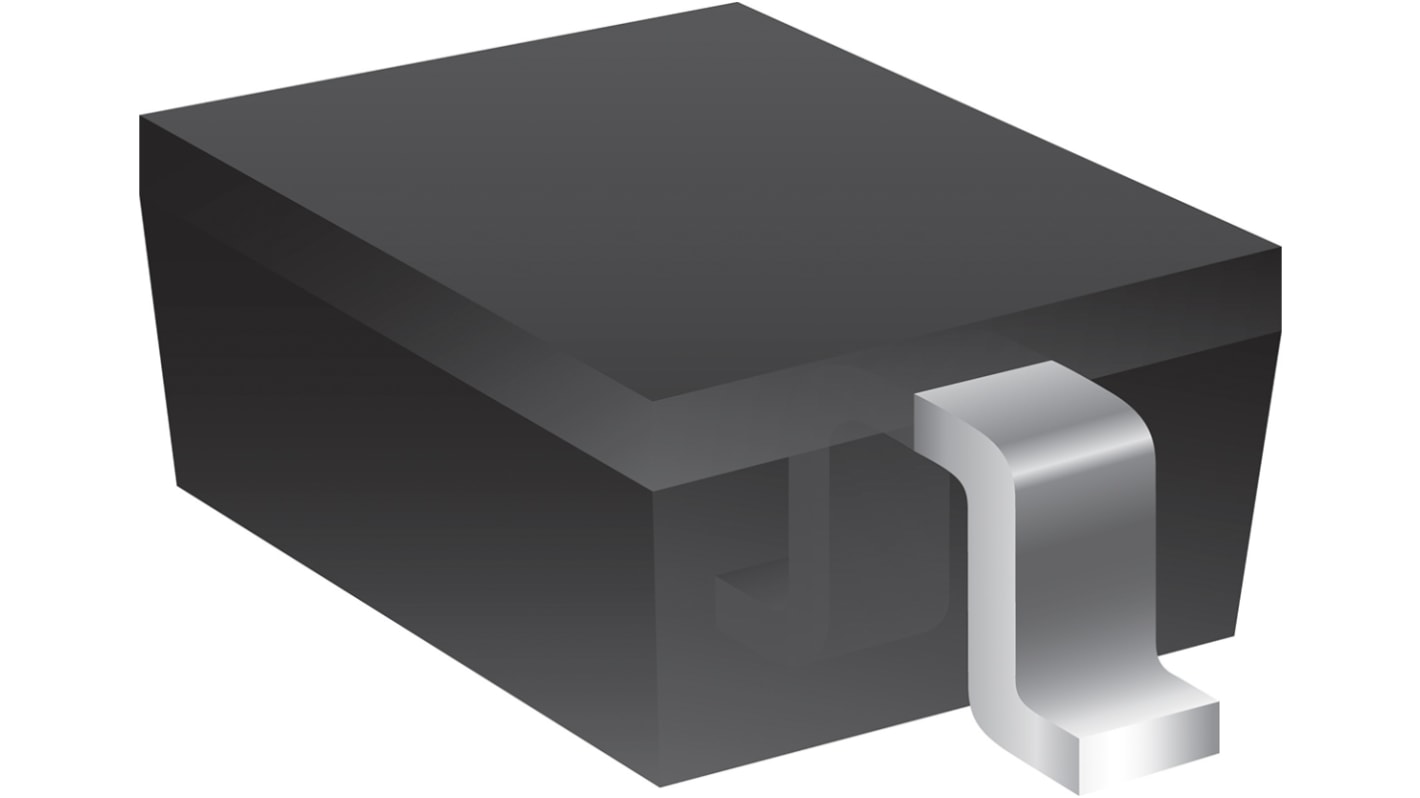

Bourns CDSOD323-T03C, Bi-Directional TVS Diode, 350W, 2-Pin SOD-323
- RS Stock No.:
- 174-2479
- Mfr. Part No.:
- CDSOD323-T03C
- Brand:
- Bourns
Subtotal (1 reel of 3000 units)*
£549.00
(exc. VAT)
£660.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 12,000 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.183 | £549.00 |
*price indicative
- RS Stock No.:
- 174-2479
- Mfr. Part No.:
- CDSOD323-T03C
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Diode Configuration | Single | |
| Direction Type | Bi-Directional | |
| Maximum Clamping Voltage | 7V | |
| Minimum Breakdown Voltage | 4V | |
| Mounting Type | Surface Mount | |
| Package Type | SOD-323 | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 350W | |
| Maximum Peak Pulse Current | 20A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -55 °C | |
| Dimensions | 1.9 x 1.45 x 1.01mm | |
| Maximum Operating Temperature | +150 °C | |
| Working Voltage | 3.3V | |
| Capacitance | 3pF | |
| ESD Voltage | 30kV | |
| Length | 1.9mm | |
| Height | 1.01mm | |
| Width | 1.45mm | |
| Test Current | 1mA | |
| Maximum Reverse Leakage Current | 5µA | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Diode Configuration Single | ||
Direction Type Bi-Directional | ||
Maximum Clamping Voltage 7V | ||
Minimum Breakdown Voltage 4V | ||
Mounting Type Surface Mount | ||
Package Type SOD-323 | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 350W | ||
Maximum Peak Pulse Current 20A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Dimensions 1.9 x 1.45 x 1.01mm | ||
Maximum Operating Temperature +150 °C | ||
Working Voltage 3.3V | ||
Capacitance 3pF | ||
ESD Voltage 30kV | ||
Length 1.9mm | ||
Height 1.01mm | ||
Width 1.45mm | ||
Test Current 1mA | ||
Maximum Reverse Leakage Current 5µA | ||
Bourns TVS Diode
The Bourns SOD-323 package, surface mount bidirectional TVS diode has a stand-off voltage of 3.3VDC and reverse breakdown voltage of 4V. It has a maximum peak pulse current rating of 20A.
Features and Benefits
• Easy to handle with standard pick and place equipment
• Low capacitance: ∼3pF typical
• Maximum ESD protection 30kV
• Operating junction temperature ranges between -55°C and 150°C
• Protects one line or one I/O port
• Replaces 0805 MLV devices
• Low capacitance: ∼3pF typical
• Maximum ESD protection 30kV
• Operating junction temperature ranges between -55°C and 150°C
• Protects one line or one I/O port
• Replaces 0805 MLV devices
Applications
• Cellular phones
• Digital cameras
• MP3 players and GPS
• PDAs and notebooks
• USB interface
• Digital cameras
• MP3 players and GPS
• PDAs and notebooks
• USB interface
Certifications
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• UL 94V-0 listed
• IEC 61000-4-4
• IEC 61000-4-5
• UL 94V-0 listed
