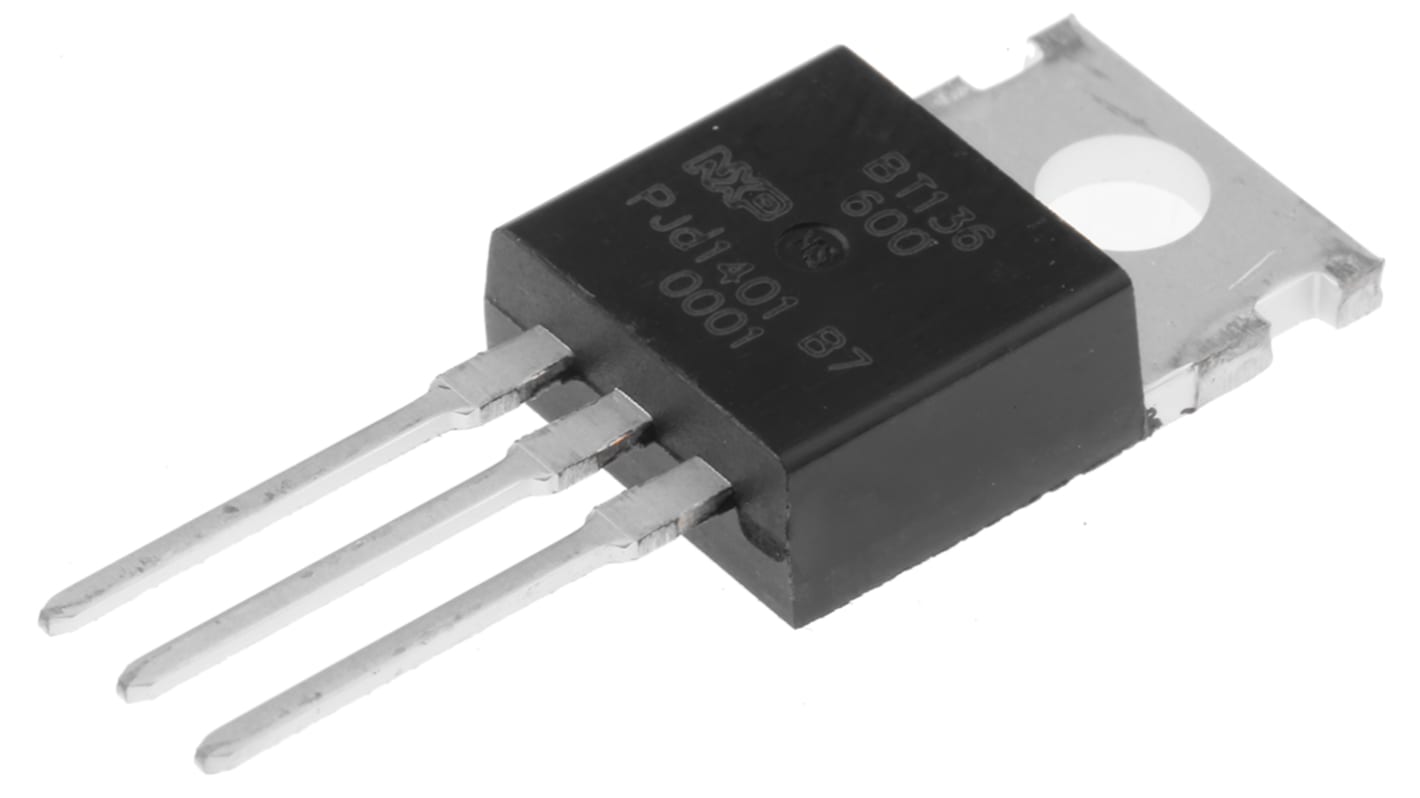

WeEn Semiconductors Co., Ltd Through Hole, 3-pin, TRIAC, 600V, Gate Trigger 1.5V 600V
- RS Stock No.:
- 484-2735
- Mfr. Part No.:
- BT136-600,127
- Brand:
- WeEn Semiconductors Co., Ltd
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 5)
£0.502
(exc. VAT)
£0.602
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.502 | £2.51 |
| 50 - 95 | £0.416 | £2.08 |
| 100 - 195 | £0.302 | £1.51 |
| 200 - 395 | £0.296 | £1.48 |
| 400 + | £0.286 | £1.43 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 484-2735
- Mfr. Part No.:
- BT136-600,127
- Brand:
- WeEn Semiconductors Co., Ltd
Technical Reference
Legislation and Compliance
Product Details
TRIAC, WeEn Semiconductors
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
Specifications
Attribute | Value |
|---|---|
| Rated Average On-State Current | 25A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 70mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 27A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.5V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 15mA |
| Dimensions | 10.3 x 4.7 x 9.4mm |
| Length | 10.3mm |
| Width | 4.7mm |
| Height | 9.4mm |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 0.5mA |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.7V |
