STMicroelectronics Surface, 3-Pin, TRIAC 800 V, Gate Trigger 1.3 V

View all TRIACs

Subtotal (1 tube of 50 units)*

£39.50

(exc. VAT)

£47.50

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 +£0.79£39.50

*price indicative

RS Stock No.:
273-5157
Mfr. Part No.:
T1235H-8G
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Rated Average On-State Current Irms

12A

Product Type

TRIAC

Mount Type

Surface

Package Type

ECOPACK2

Maximum Gate Trigger Current Igt

35mA

Repetitive Peak Reverse Voltage VDRM

800V

Pin Count

3

Maximum Gate Trigger Voltage Vgt

1.3V

Maximum Holding Current Ih

35mA

Minimum Operating Temperature

-40°C

Peak Gate Power Dissipation

5W

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS

Length

10.28mm

Series

T1235H-8G

Width

9.35 mm

Height

15.8mm

Automotive Standard

No

COO (Country of Origin):
CN

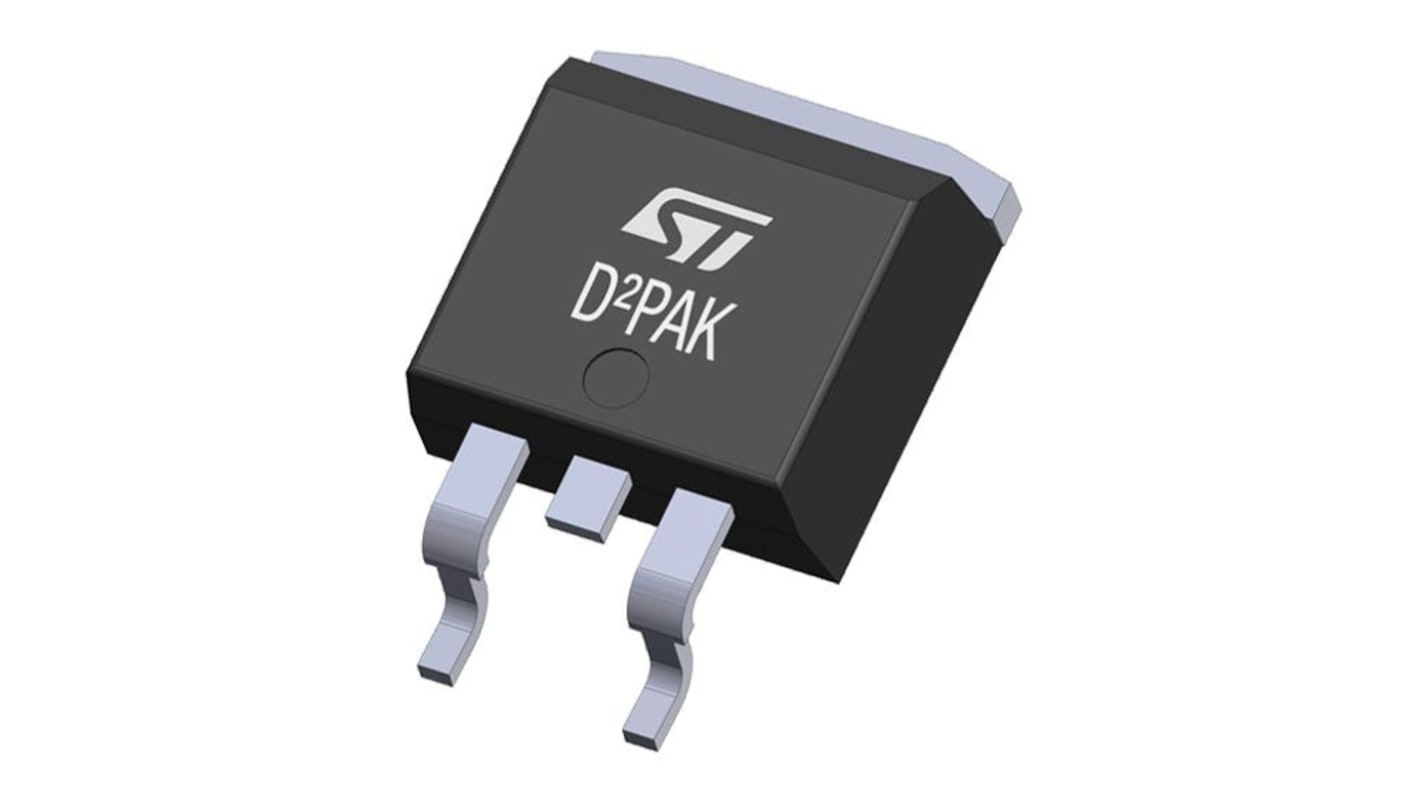

The STMicroelectronics Triac in D2PAK specifically designed to operate at 800 V and 150 °C, the T1235H-8G Triac housed in D2PAK provides an enhanced thermal management, this 12 A Triac is the right choice for a compact drive of AC loads and enables the heatsink size reduction

Three triggering quadrants

High noise immunity

Robust dynamic turn-off commutation
