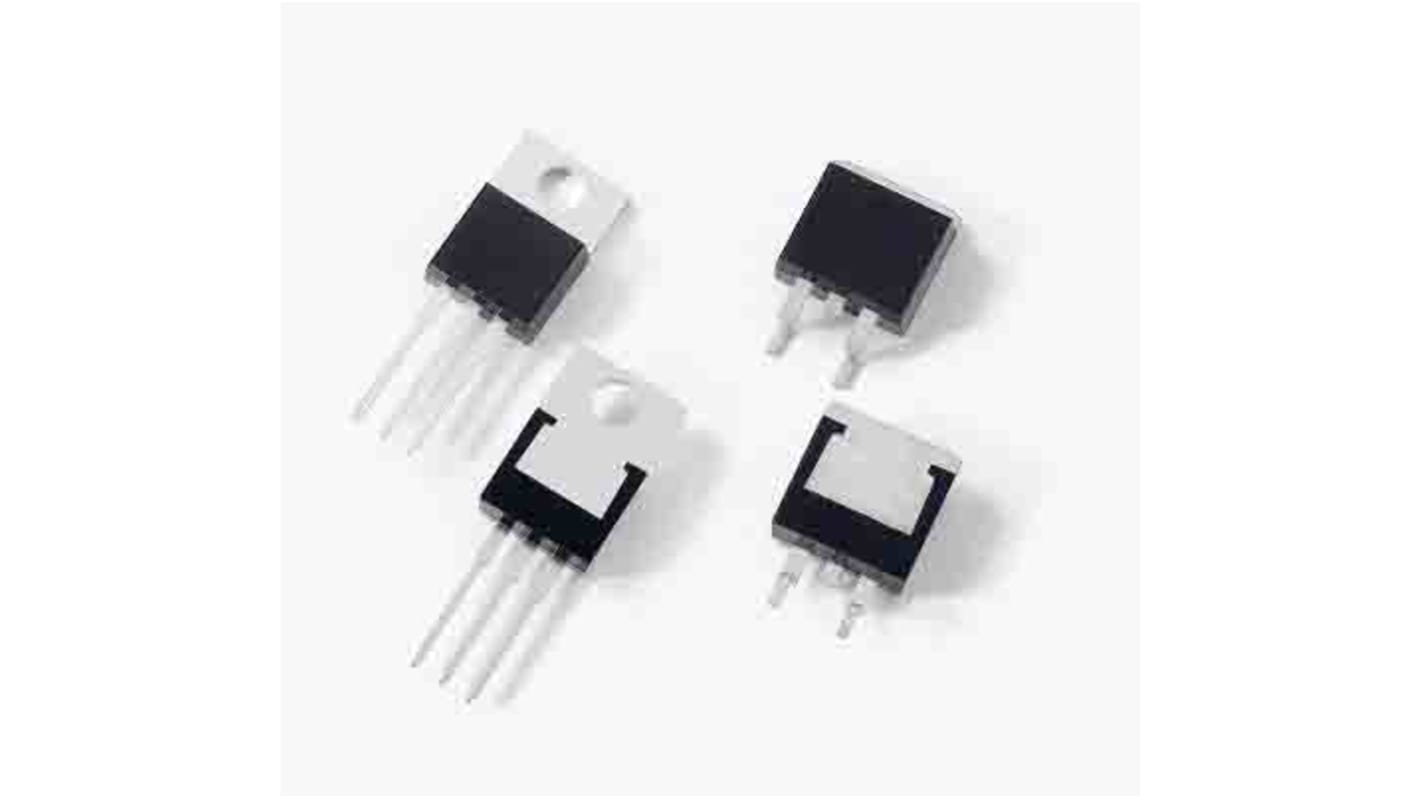

Littelfuse Surface, 3-Pin, TRIAC 600 V, Gate Trigger 1.3 V
- RS Stock No.:
- 213-0884
- Mfr. Part No.:
- QV6016NH4RP
- Brand:
- Littelfuse
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£16.06
(exc. VAT)
£19.27
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 465 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £3.212 | £16.06 |
| 25 - 45 | £2.862 | £14.31 |
| 50 - 95 | £2.788 | £13.94 |
| 100 - 245 | £2.72 | £13.60 |
| 250 + | £2.65 | £13.25 |
*price indicative
- RS Stock No.:
- 213-0884
- Mfr. Part No.:
- QV6016NH4RP
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Rated Average On-State Current Irms | 200A | |
| Product Type | TRIAC | |
| Mount Type | Surface | |
| Package Type | TO-263 | |
| Maximum Gate Trigger Current Igt | 35mA | |
| Repetitive Peak Reverse Voltage VDRM | 600V | |
| Pin Count | 3 | |
| Maximum Gate Trigger Voltage Vgt | 1.3V | |
| Configuration | Single | |
| Maximum Holding Current Ih | 50mA | |
| Peak Gate Power Dissipation | 0.5W | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 9.14mm | |
| Standards/Approvals | RoHS | |
| Height | 9.65mm | |
| Automotive Standard | No | |
| Repetitive Peak Off-State Current | 5μA | |
| Peak On-State Voltage | 1.6V | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Rated Average On-State Current Irms 200A | ||
Product Type TRIAC | ||
Mount Type Surface | ||
Package Type TO-263 | ||
Maximum Gate Trigger Current Igt 35mA | ||
Repetitive Peak Reverse Voltage VDRM 600V | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage Vgt 1.3V | ||
Configuration Single | ||
Maximum Holding Current Ih 50mA | ||
Peak Gate Power Dissipation 0.5W | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 150°C | ||
Length 9.14mm | ||
Standards/Approvals RoHS | ||
Height 9.65mm | ||
Automotive Standard No | ||
Repetitive Peak Off-State Current 5μA | ||
Peak On-State Voltage 1.6V | ||
The Littlefuse QV6016NH4RP is designed with high dv/dt capability for AC switching and phase control applications, especially for inductive loads applications where high commutation performance is required.
Halogen-free
Internally Isolated TO-220 Package
Mechanically and Thermally Robust
High dv/dt
