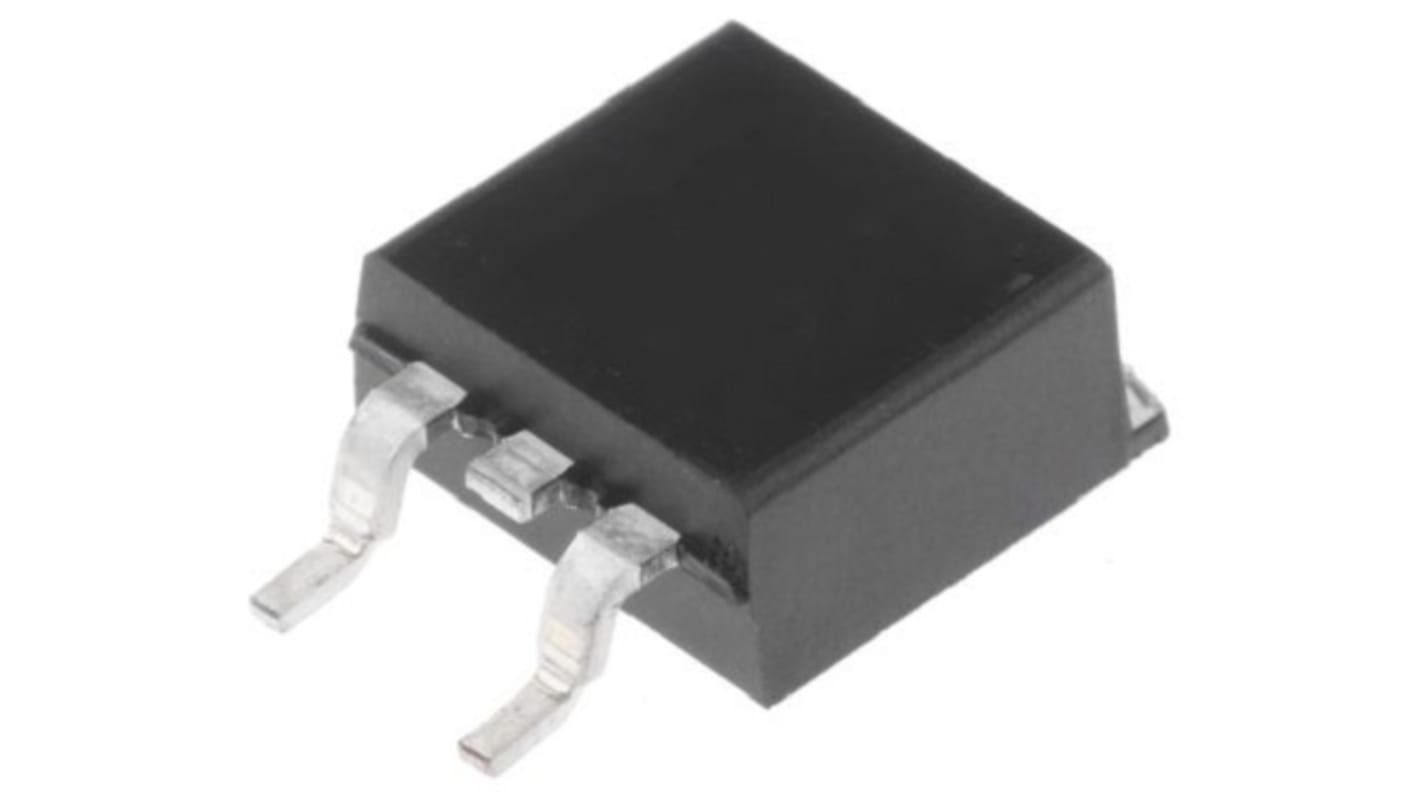

STMicroelectronics Surface Mount, 3-pin, TRIAC, 800V, Gate Trigger 1.3V
- RS Stock No.:
- 211-6803
- Mfr. Part No.:
- T1235H-8G-TR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£497.00
(exc. VAT)
£596.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,000 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £0.497 | £497.00 |
*price indicative
- RS Stock No.:
- 211-6803
- Mfr. Part No.:
- T1235H-8G-TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Rated Average On-State Current | 12A | |
Mounting Type | Surface Mount | |
Package Type | D²PAK | |
Maximum Gate Trigger Current | 35mA | |
Repetitive Peak Reverse Voltage | 800V | |
Pin Count | 3 | |
Maximum Gate Trigger Voltage | 1.3V | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Rated Average On-State Current 12A | ||
Mounting Type Surface Mount | ||
Package Type D²PAK | ||
Maximum Gate Trigger Current 35mA | ||
Repetitive Peak Reverse Voltage 800V | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage 1.3V | ||
The STMicroelectronics T1235H Series of Triac housed in D2PAK provides an enhanced thermal management, this 12 A Triac is the right choice for a compact drive of AC loads and enables the heatsink size reduction. Based on the ST high temperature Snubberless technology, it offers higher specified turn off commutation and noise immunity levels up to the Tj max. The T1235H safely optimizes the control of the hardest universal motors, heaters and inductive loads for industrial control and home appliances.
Three triggering quadrants
ECOPACK2 compliant component
ECOPACK2 compliant component
