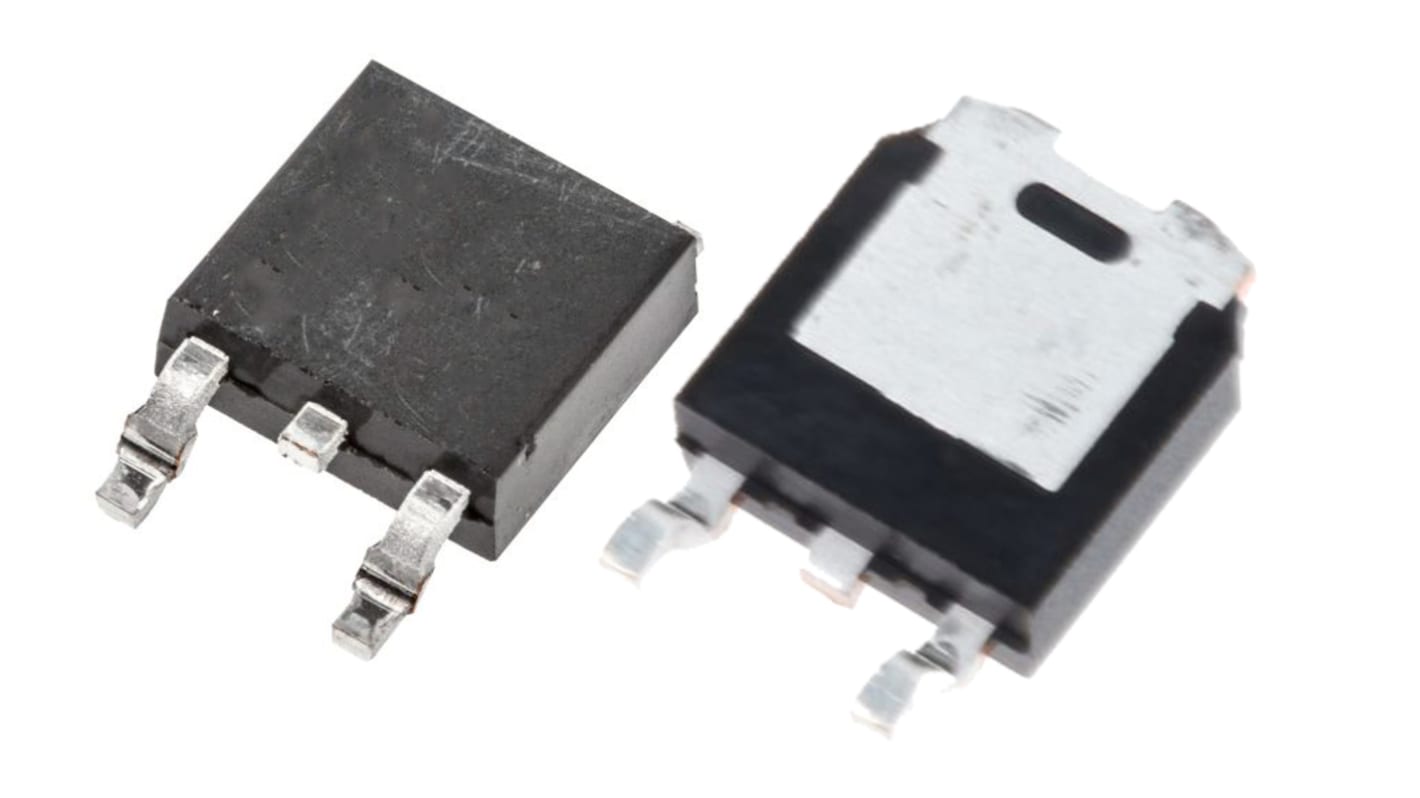

STMicroelectronics Surface Mount, 3-pin, TRIAC, 800V, Gate Trigger 1.1V
- RS Stock No.:
- 192-4590
- Mfr. Part No.:
- ACST210-8B
- Brand:
- STMicroelectronics
Save 10% when you buy 375 units
Subtotal (1 tube of 75 units)*
£24.30
(exc. VAT)
£29.175
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
75 - 75 | £0.324 | £24.30 |
150 - 300 | £0.304 | £22.80 |
375 + | £0.291 | £21.83 |
*price indicative
- RS Stock No.:
- 192-4590
- Mfr. Part No.:
- ACST210-8B
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Rated Average On-State Current | 2A | |
Mounting Type | Surface Mount | |
Package Type | DPAK | |
Maximum Gate Trigger Current | 10mA | |
Repetitive Peak Reverse Voltage | 800V | |
Surge Current Rating | 8.4A | |
Pin Count | 3 | |
Maximum Gate Trigger Voltage | 1.1V | |
Maximum Holding Current | 10mA | |
Dimensions | 6.73 x 6.22 x 2.4mm | |
Length | 6.73mm | |
Width | 6.22mm | |
Height | 2.4mm | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +125 °C | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Rated Average On-State Current 2A | ||
Mounting Type Surface Mount | ||
Package Type DPAK | ||
Maximum Gate Trigger Current 10mA | ||
Repetitive Peak Reverse Voltage 800V | ||
Surge Current Rating 8.4A | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage 1.1V | ||
Maximum Holding Current 10mA | ||
Dimensions 6.73 x 6.22 x 2.4mm | ||
Length 6.73mm | ||
Width 6.22mm | ||
Height 2.4mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
- COO (Country of Origin):
- CN
The ACST2 series belongs to the ACS/ACST power switch family. This high performance device is suited to home appliances or industrial systems and drives loads up to 2 A. This ACST2 switch embeds a Triac structure with a high voltage clamping device to absorb the inductive turn-off energy and withstand line transients. The component needs a low gate current to be activated (IGT < 10 mA) and still shows a high electrical noise immunity.
Triac with overvoltage crowbar technology
High noise immunity: static dV/dt > 500 V/μs
TO-220FPAB insulated package:
Insulation voltage : 2000 VRMS
High noise immunity: static dV/dt > 500 V/μs
TO-220FPAB insulated package:
Insulation voltage : 2000 VRMS
