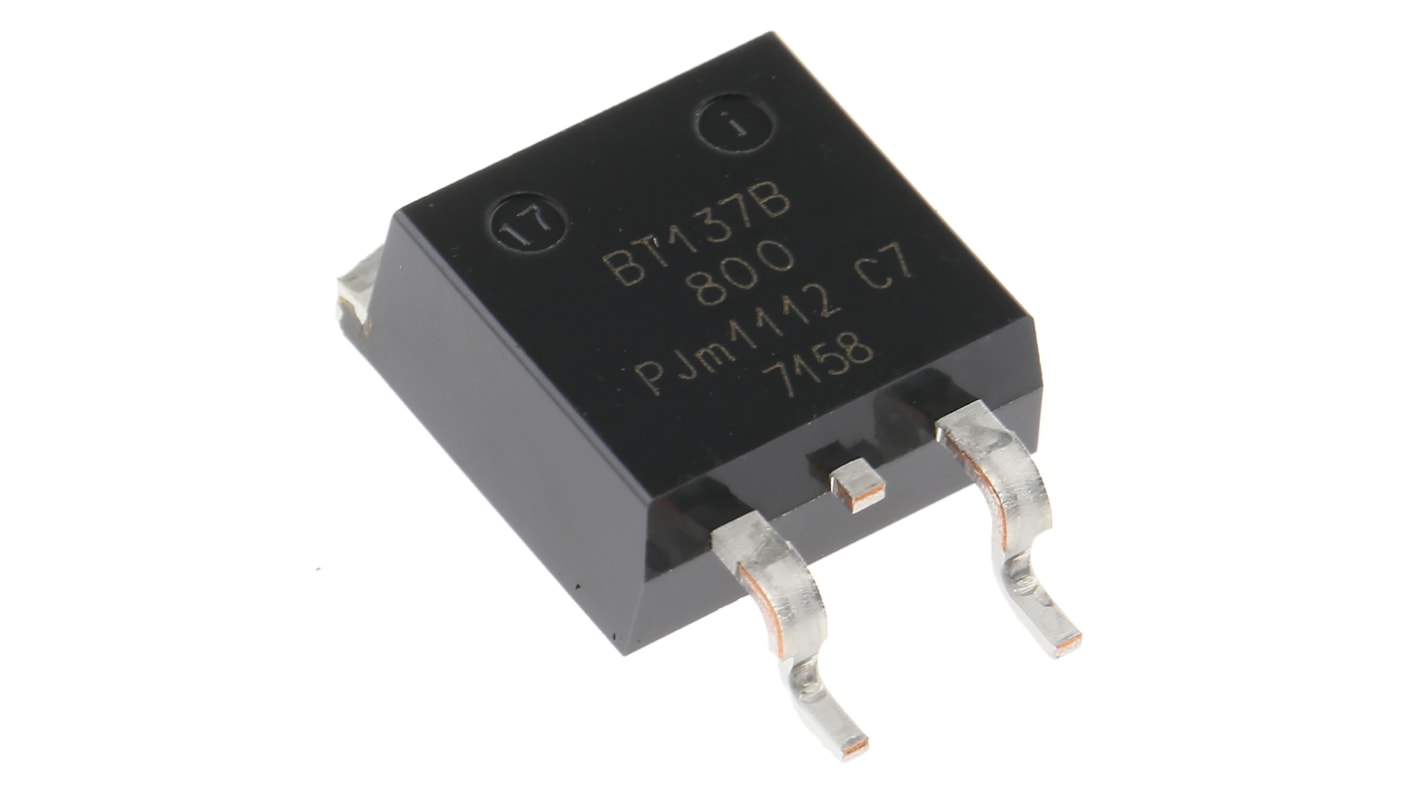

WeEn Semiconductors Co., Ltd Surface Mount, 3-pin, TRIAC, 800V, Gate Trigger 1.5V 800V

View all TRIACs

Subtotal (1 reel of 800 units)*

£177.60

(exc. VAT)

£212.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7,200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
800 +£0.222£177.60

*price indicative

RS Stock No.:
166-1265
Mfr. Part No.:
BT137B-800F,118
Brand:
WeEn Semiconductors Co., Ltd
Find similar products by selecting one or more attributes.
Select all

Brand

WeEn Semiconductors Co., Ltd

Rated Average On-State Current

8A

Mounting Type

Surface Mount

Package Type

D2PAK (TO-263)

Maximum Gate Trigger Current

70mA

Repetitive Peak Reverse Voltage

800V

Surge Current Rating

71A

Pin Count

3

Maximum Gate Trigger Voltage

1.5V

Repetitive Peak Forward Blocking Voltage

800V

Maximum Holding Current

20mA

Dimensions

10.3 x 9.4 x 4.5mm

Length

10.3mm

Width

9.4mm

Height

4.5mm

Peak On-State Voltage

1.65V

Maximum Operating Temperature

+125 °C

Repetitive Peak Off-State Current

0.5mA

Minimum Operating Temperature

-40 °C

TRIAC, WeEn Semiconductors



TRIACs


A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
