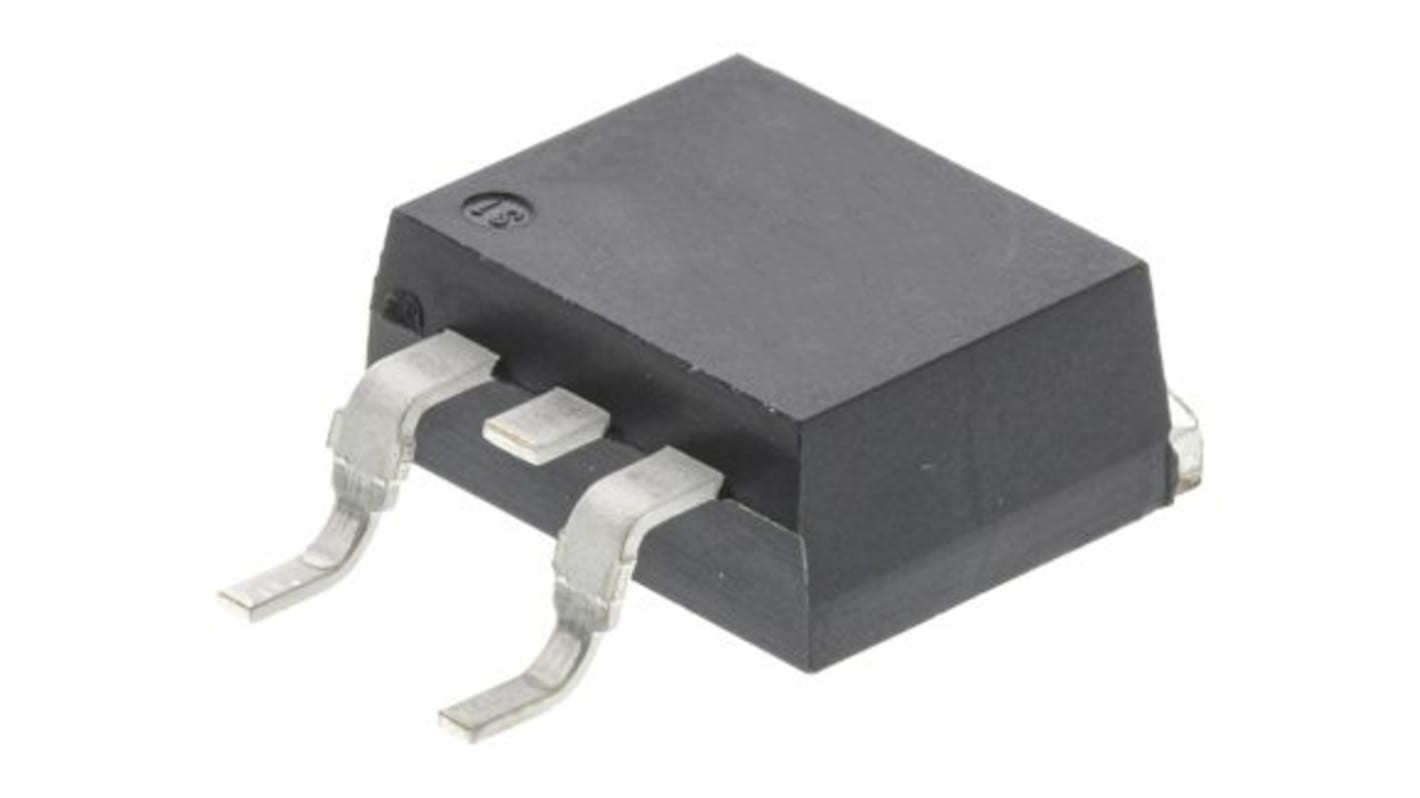

STMicroelectronics Surface Mount, 3-pin, TRIAC, 600V, Gate Trigger 1V
- RS Stock No.:
- 192-0655
- Mfr. Part No.:
- T3035H-6G
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 tube of 50 units)*
£69.65
(exc. VAT)
£83.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
50 - 50 | £1.393 | £69.65 |
100 + | £1.31 | £65.50 |
*price indicative
- RS Stock No.:
- 192-0655
- Mfr. Part No.:
- T3035H-6G
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Rated Average On-State Current | 30A | |
Mounting Type | Surface Mount | |
Package Type | D2PAK | |
Maximum Gate Trigger Current | 35mA | |
Repetitive Peak Reverse Voltage | 600V | |
Surge Current Rating | 284A | |
Pin Count | 3 | |
Maximum Gate Trigger Voltage | 1V | |
Maximum Holding Current | 75mA | |
Dimensions | 10.28 x 9.35 x 4.6mm | |
Length | 10.28mm | |
Width | 9.35mm | |
Height | 4.6mm | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +150 °C | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Rated Average On-State Current 30A | ||
Mounting Type Surface Mount | ||
Package Type D2PAK | ||
Maximum Gate Trigger Current 35mA | ||
Repetitive Peak Reverse Voltage 600V | ||
Surge Current Rating 284A | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage 1V | ||
Maximum Holding Current 75mA | ||
Dimensions 10.28 x 9.35 x 4.6mm | ||
Length 10.28mm | ||
Width 9.35mm | ||
Height 4.6mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +150 °C | ||
- COO (Country of Origin):
- CN
Specifically designed to operate at 150 °C, the 30 A T3035H, T3050H Triacs provide very high dynamic and enhanced performance in terms of power loss and thermal dissipation. This allows the heatsink size optimization, leading to space and cost effectiveness when compared to electro-mechanical solutions. Based on ST Snubberless™ technology, they offer a specified minimal commutation and high noise immunity levels valid up to the Tj max.These devices safely optimize the control of universal motors and of inductive loads found in power tools and major appliances.By using an internal ceramic pad, they provide voltage insulation (rated at 2500 VRMS).
High current Triac
High immunity level
Low thermal resistance with clip bonding
Very high 3 quadrant commutation at 150 °C capability
High immunity level
Low thermal resistance with clip bonding
Very high 3 quadrant commutation at 150 °C capability
