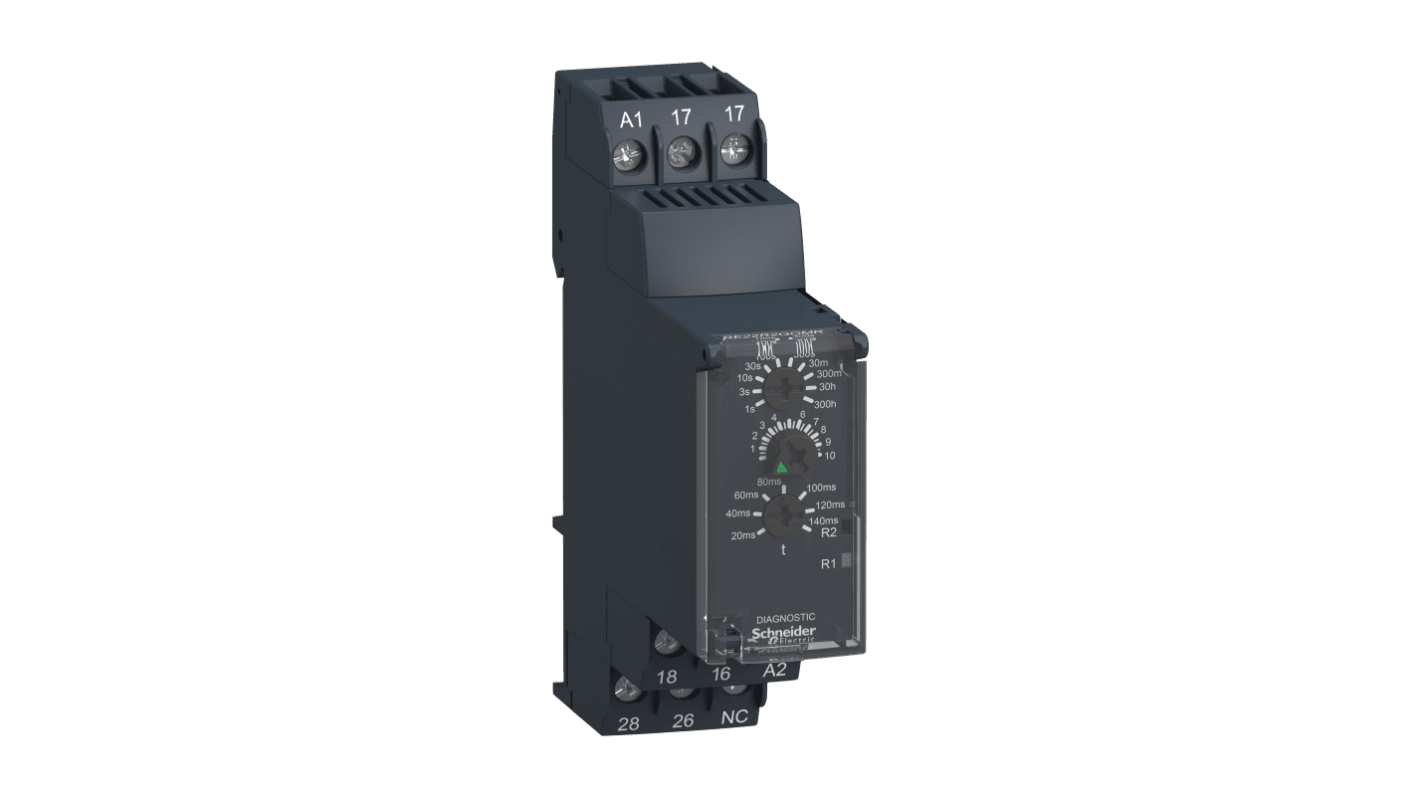

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 240 V dc 24V ac, 240 V ac, 1-Function, DPDT
- RS Stock No.:
- 897-6734
- Distrelec Article No.:
- 303-02-801
- Mfr. Part No.:
- RE22R2QGMR
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£88.54
(exc. VAT)
£106.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.54 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 897-6734
- Distrelec Article No.:
- 303-02-801
- Mfr. Part No.:
- RE22R2QGMR
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Timer Relay | |
| Function | Valve | |
| Mount Type | DIN Rail | |
| Number of Contacts | 2 | |
| Switching Voltage | 250V ac | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| IP Rating | IP20, IP50, IP40 | |
| Timing Adjustment | Knob | |
| Supply AC Voltage | 24, 240V ac | |
| Supply DC Voltage | 240 V dc | |
| Contact Current | 8A | |
| Minimum Operating Temperature | -20°C | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, EAC, CE, CSA, IEC 61812-1, UL 508, RCM, GL, CCC | |
| Width | 90mm | |
| Length | 22.9mm | |
| Height | 79.5mm | |
| Better World Product | Yes | |
| Series | Harmony Time | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Timer Relay | ||
Function Valve | ||
Mount Type DIN Rail | ||
Number of Contacts 2 | ||
Switching Voltage 250V ac | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
IP Rating IP20, IP50, IP40 | ||
Timing Adjustment Knob | ||
Supply AC Voltage 24, 240V ac | ||
Supply DC Voltage 240 V dc | ||
Contact Current 8A | ||
Minimum Operating Temperature -20°C | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, EAC, CE, CSA, IEC 61812-1, UL 508, RCM, GL, CCC | ||
Width 90mm | ||
Length 22.9mm | ||
Height 79.5mm | ||
Better World Product Yes | ||
Series Harmony Time | ||
- COO (Country of Origin):
- ID
Zelio Star Delta Timers- RE22 Series
22.5 mm profile width
Screw terminals connection
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Available option of supplying a load in parallel
Operating temperature of -20 → 60 °C
Self extinguishing housing material
Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)
