Carlo Gavazzi DIN Rail Mount Timer Relay, 24 V dc, 24 → 240V ac, 2-Contact, 0.1 s → 100h, SPDT

View all Timer Relays

Subtotal (1 unit)*

£83.61

(exc. VAT)

£100.33

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
  • Plus 6 unit(s) shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£83.61

*price indicative

RS Stock No.:
857-7132
Distrelec Article No.:
137-54-272
Mfr. Part No.:
DCB51CM24
Brand:
Carlo Gavazzi
Find similar products by selecting one or more attributes.
Select all

Brand

Carlo Gavazzi

Supply Voltage

24 V dc, 24 → 240V ac

Mounting Type

DIN Rail

Mode of Operation

Asymmetrical Recycler with Pulse Start

Time Range

0.1 s → 100h

Number of Contacts

2

Number of Timer Functions

Multi Function

Contact Configuration

SPDT

Time Increment

Hours, Minutes, Seconds

Maximum Current

5A

Terminal Type

Screw

Switch Configuration

SPDT

Width

17.5mm

Power Supply

External

Depth

81mm

Maximum Operating Temperature

+60°C

Length

67.2mm

Contact Material

Silver Tin Oxide

Minimum Operating Temperature

-20°C

Time Delay

(On) ≤150 ms, (Off) ≤200ms

COO (Country of Origin):
CN

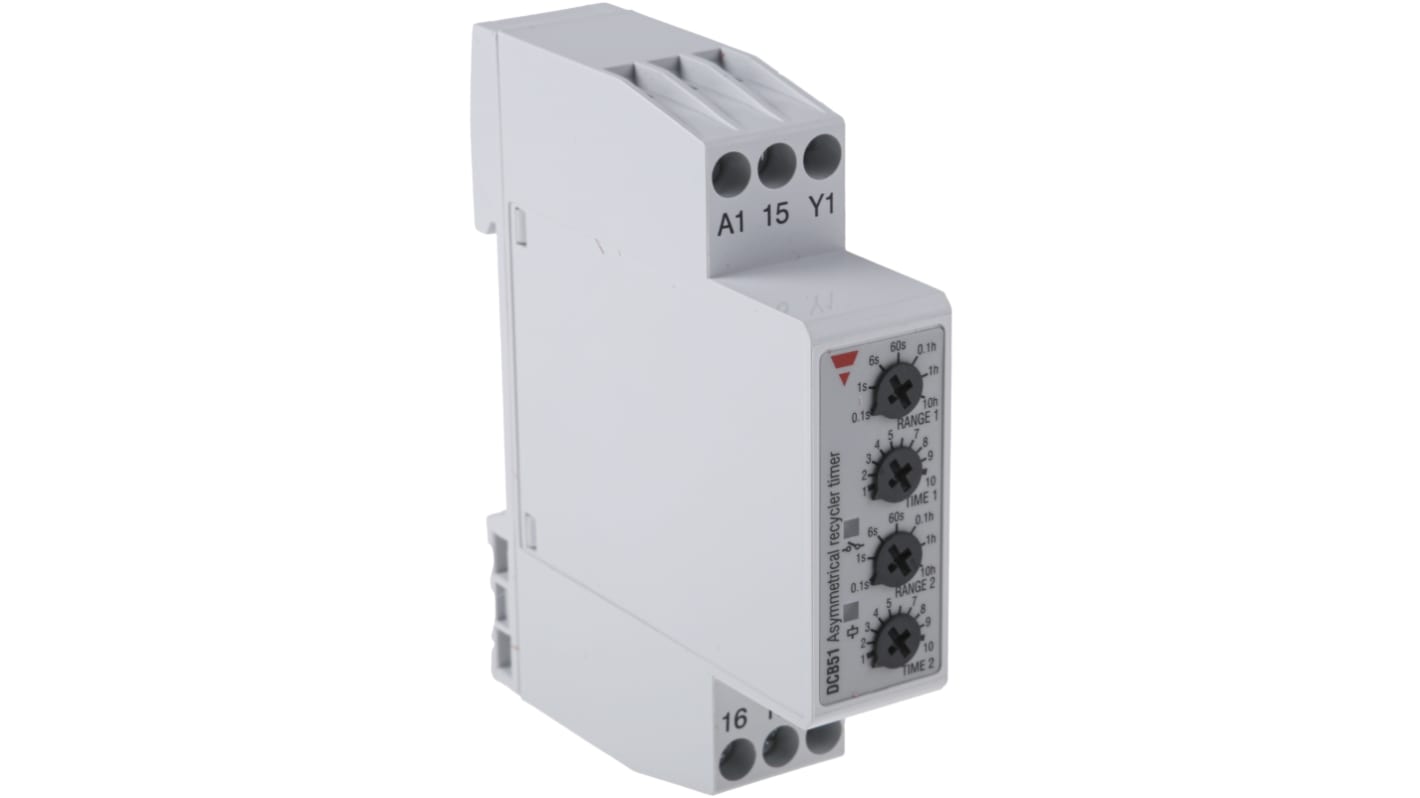

Carlo Gavazzi Multi-function Timer Relay


The Carlo Gavazzi multi-function timer relay is compact, electromechanical equipment with high precision. It performs 2 selectable functions like asymmetrical recycler on first and asymmetrical recycler off first in the range of 0.1 seconds to 100 hours. This is easy to use and quick to configure. It provides a reliable timing solution that is suitable for back and front panel mounting. Its low cost and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits


7 selectable time ranges in the range of 0.1 seconds to 100 hours like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1 hours to 1 hour, 1 hour to 10 hour and 10 hours to 100 hours
Setup made simple thanks to knob selection of time range and setting
Automatic start
1C/O SPDT contact configuration with relay output of 5A
For mounting on DIN rail
Supply voltage 24VDC and 24VAC to 240VAC
LED status indication available to provide details of relay status and power supply on
Supports PNP/NPN and Namur sensors

Applications


Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications


IEC 60664
IEC 60038
EN 60529
IP20 rated
UL approved
CSA certified
CE certified
IEC EN 60947
EN 61000-6-2
EN 61000-6-3
